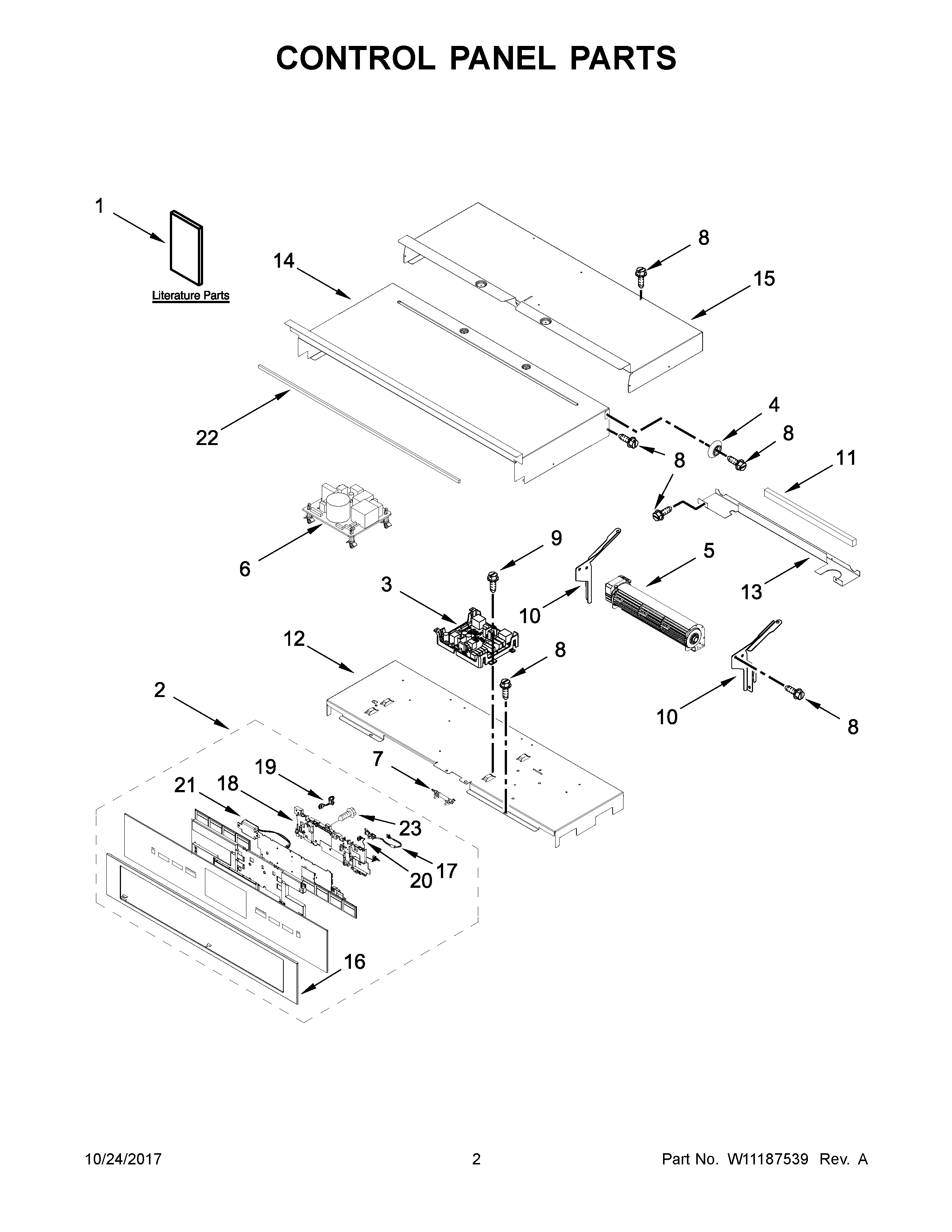

JJW2427DS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	BRACKET, FUSE
NI	HARNESS, MAIN
NI	HARNESS, SIGNAL
NI	STRAP, LEAD GROUND
NI	MAY W10775068
NI	BRACKET, HARNESS
NI	HARNESS, EOL
NI	CLIP, HARNESS
NI	CLAMP, CONDUIT
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2	MAY W10876358
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 27"
15	CHASSIS, COVER TOP BACK 27"
16	SKIN, CONTROL PANEL (STAINLESS)
17	JUMPER HARNESS, POWER SUPPLY
18	HOUSING
19	HARNESS, KEYPAD (LEFT TO CENTER)
20	HARNESS, KEYPAD (RIGHT TO CENTER)
21	ASSEMBLY, SPEAKER
22	GASKET, RUBBER
23	MAY W10489172
