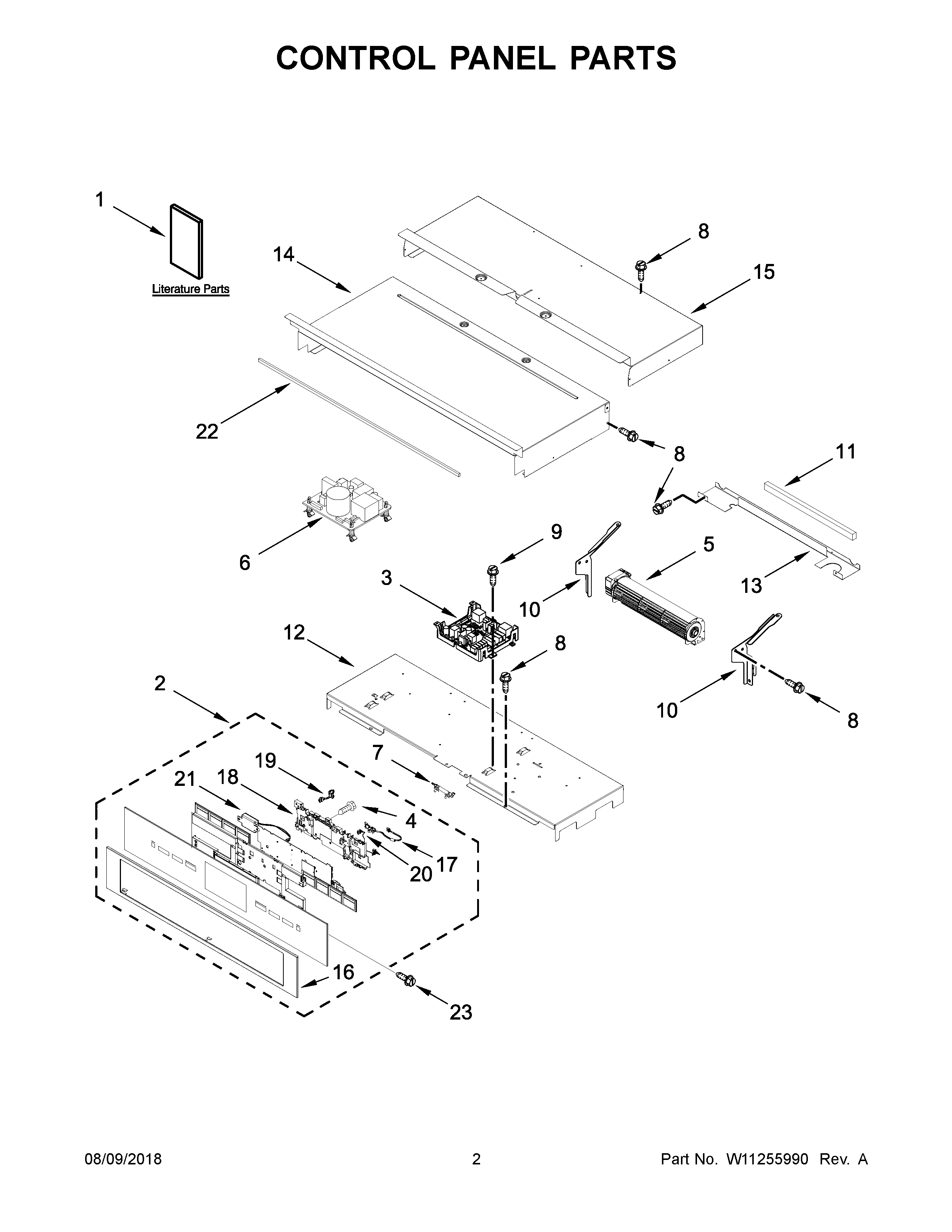

JJW2427DS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIHARNESS, EOL
NIBRACKET, HARNESS
NISTRAP, LEAD GROUND
NIHARNESS, DOOR LATCH
NICLAMP, CONDUIT
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIMAY 4450800
NIHARNESS, SIGNAL
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH
1GUIDE, USE & CARE
2ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
3CONTROL (WITH POWER SUPPLY)
4MAY W10489172
5BLOWER
6BOARD, POWER SUPPLY
7FUSE, THERMAL
8MAY 7101P426- 60
9MAY 7101P434-60
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12TRAY, ELECTRONIC
13CHASSIS, BACK DIVIDER
14CHASSIS, COVER TOP FRONT 27"
15CHASSIS, COVER TOP BACK 27"
16SKIN, CONTROL PANEL (STAINLESS)
17JUMPER HARNESS, POWER SUPPLY
18HOUSING
19HARNESS, KEYPAD (LEFT TO CENTER)
20HARNESS, KEYPAD (RIGHT TO CENTER)
21ASSEMBLY, SPEAKER
22GASKET, RUBBER
23Screw (2) (Black)
