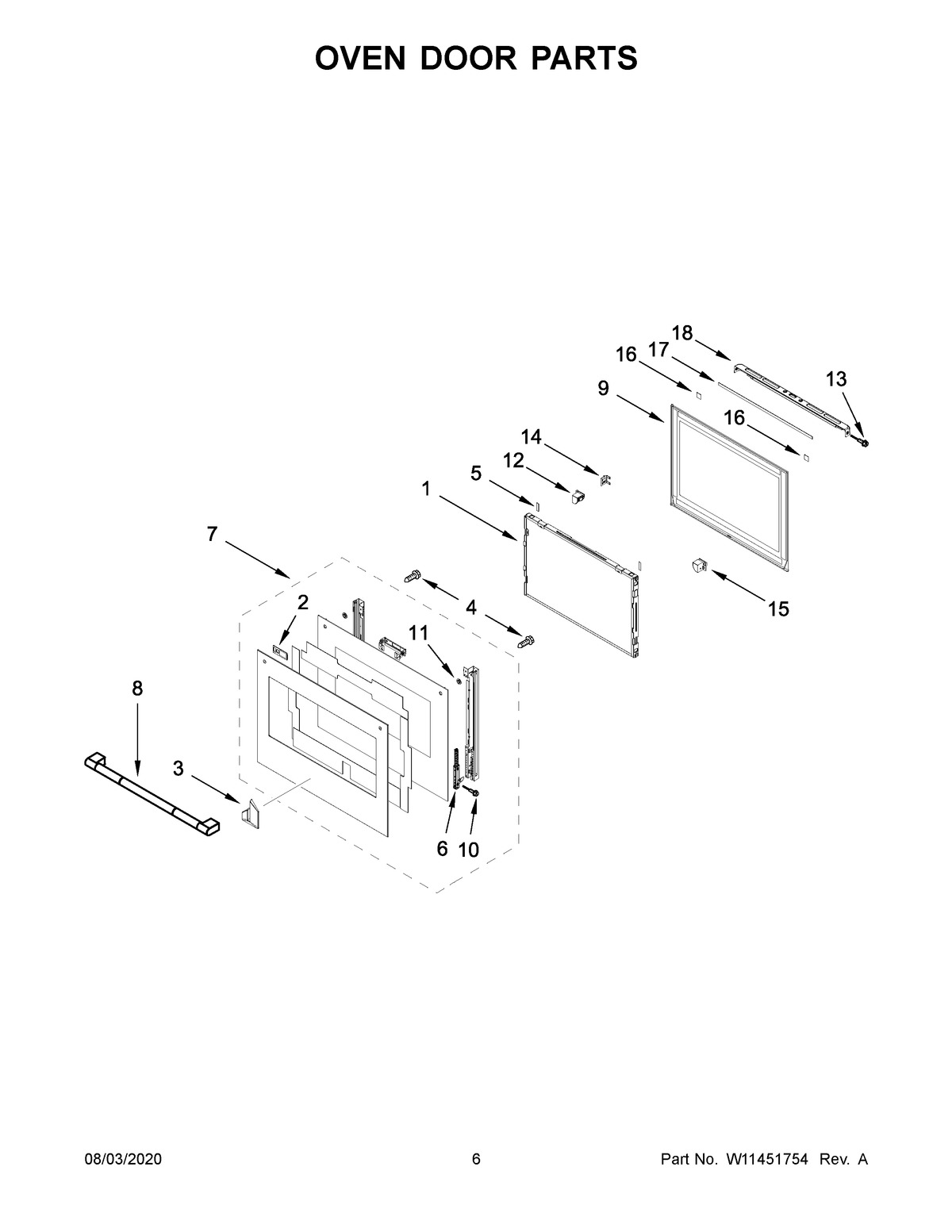

JJW2427IL01 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	SPACER, HANDLE
3	NAMEPLATE (STAINLESS)
4	SCREW
5	SPACER
6	HINGE, DOOR
7	ASSEMBLY, DOOR (STAINLESS)
8	MAY W11251201
9	ASSEMBLY, GLASS CAVITY
10	SCREW
11	WASHER, DOOR
12	BRACKET, DOOR (LEFT)
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (RIGHT)
16	SPACER, VENT
17	PAD, VENT
18	VENT, TOP METAL
