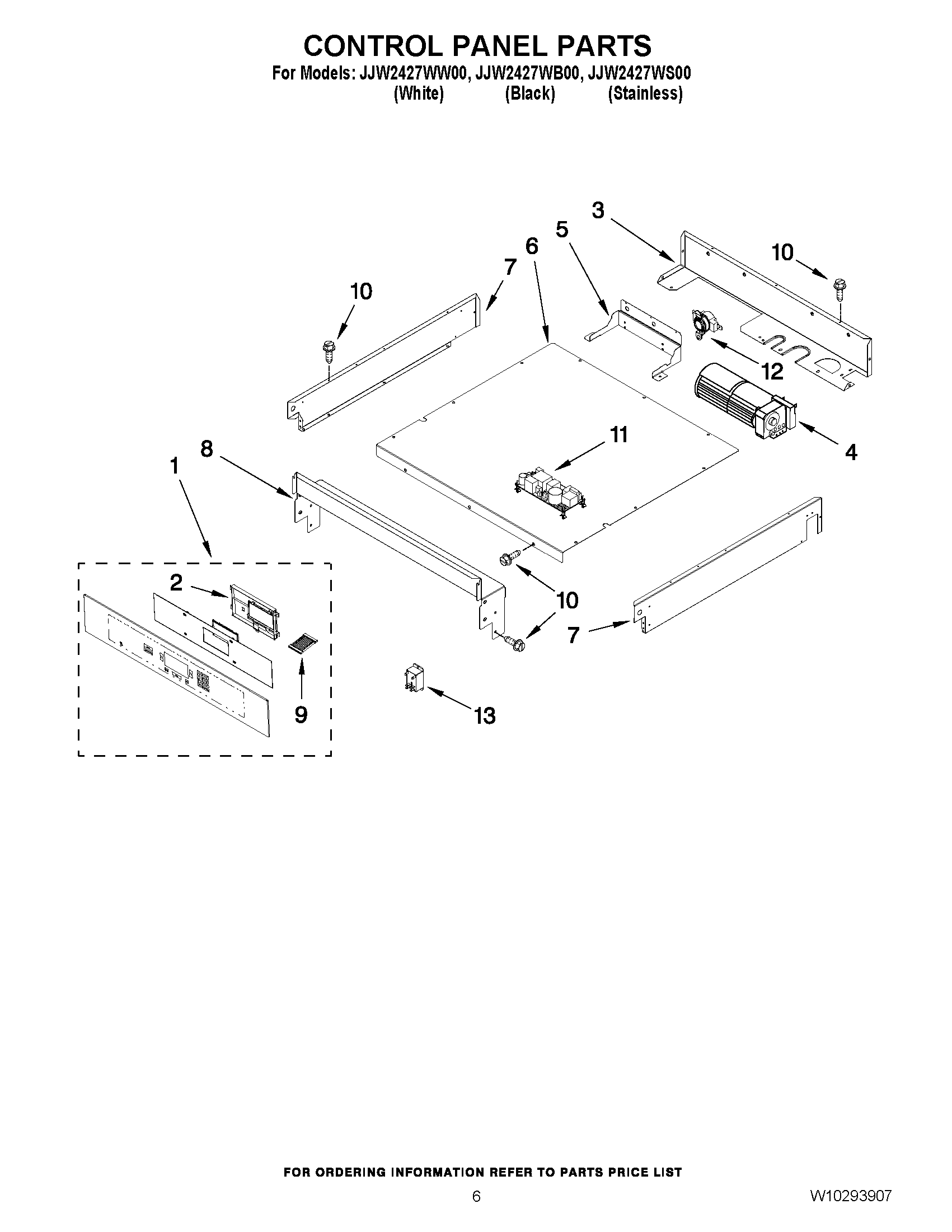

JJW2427WS00 04 – CONTROL PANEL PARTS

JJW2427WS00 04 – CONTROL PANEL PARTS

Written by

in

JJW2427WS00 04 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10212646
1MAY W10212647
1MAY W10204269
2MAY W10289537
3MAY W10187048
4BLOWER (UPPER)
5BRACKET, COOLING FAN UPPER
6MAY W10176180
7PANEL, CONTROL BOX (RIGHT SIDE)
7PANEL, CONTROL BOX (LEFT SIDE)
8SUPPORT, TOP CNTRL
9MAY W10175829
10MAY 7101P426- 60
11MAY W10176142
12SWITCH, OVEN LIMIT
13MAY W10289533
