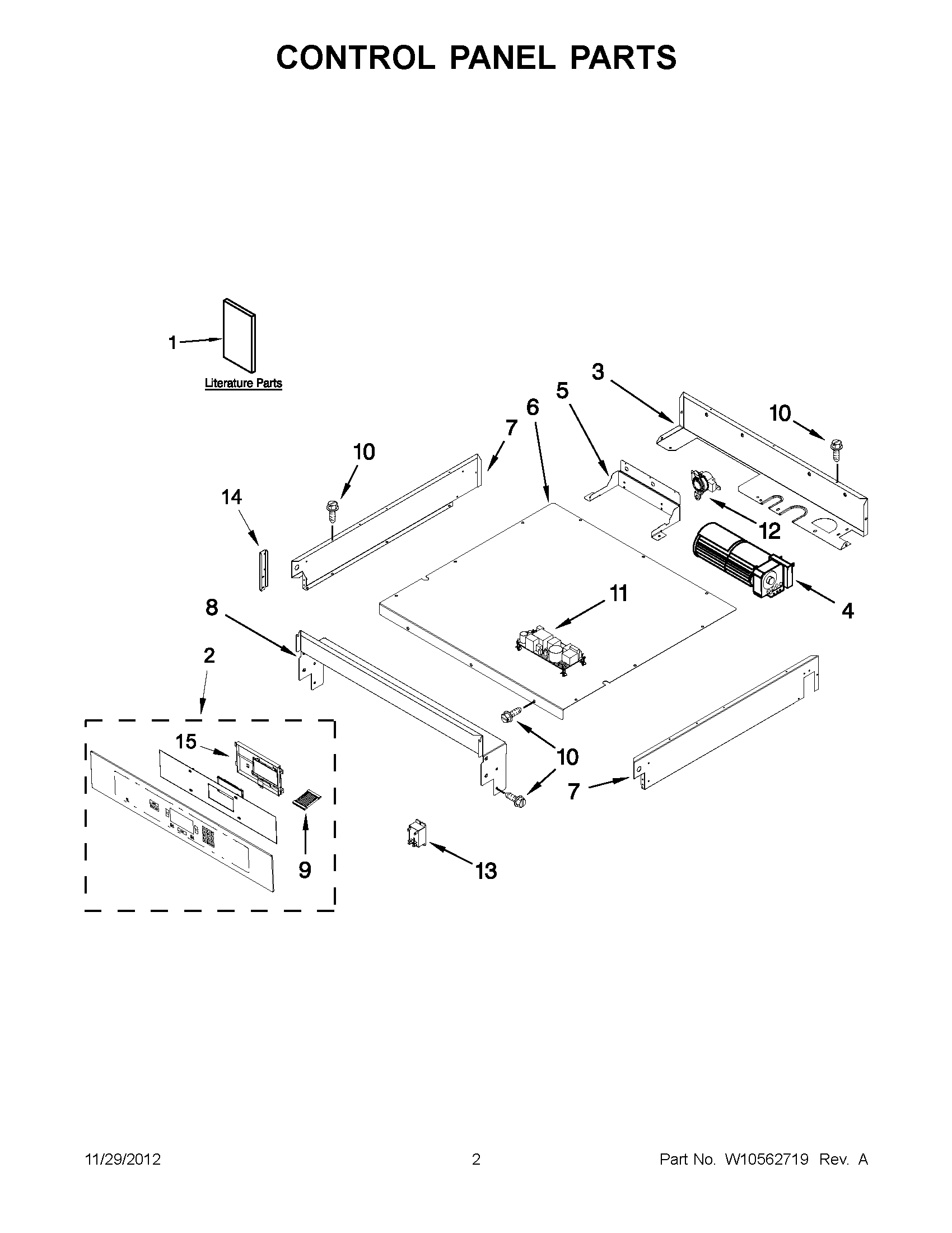

JJW2427WS02 01 – CONTROL PANEL PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1INSTRUCTIONS, UNDERCOUNTER
1INSTR, INSTALLER
1USE & CARE GUIDE
1MAY W10221386
1MAY W10213742
1MAY W10213733
1TIPS, SAFE COOKING (FRENCH)
2MAY W10517890
2MAY W10517888
3MAY W10187048
4BLOWER (UPPER)
5BRACKET, COOLING FAN UPPER
6MAY W10176180
7PANEL, CONTROL BOX (LEFT SIDE)
7PANEL, CONTROL BOX (RIGHT SIDE)
8SUPPORT, TOP CNTRL
9MAY W10175829
10MAY 7101P426- 60
11CONTROL, ELEC
12SWITCH, OVEN LIMIT
13MANAGER, APPLIANCE
14MAY W10512904
15ASSY., UI EXTENDED
