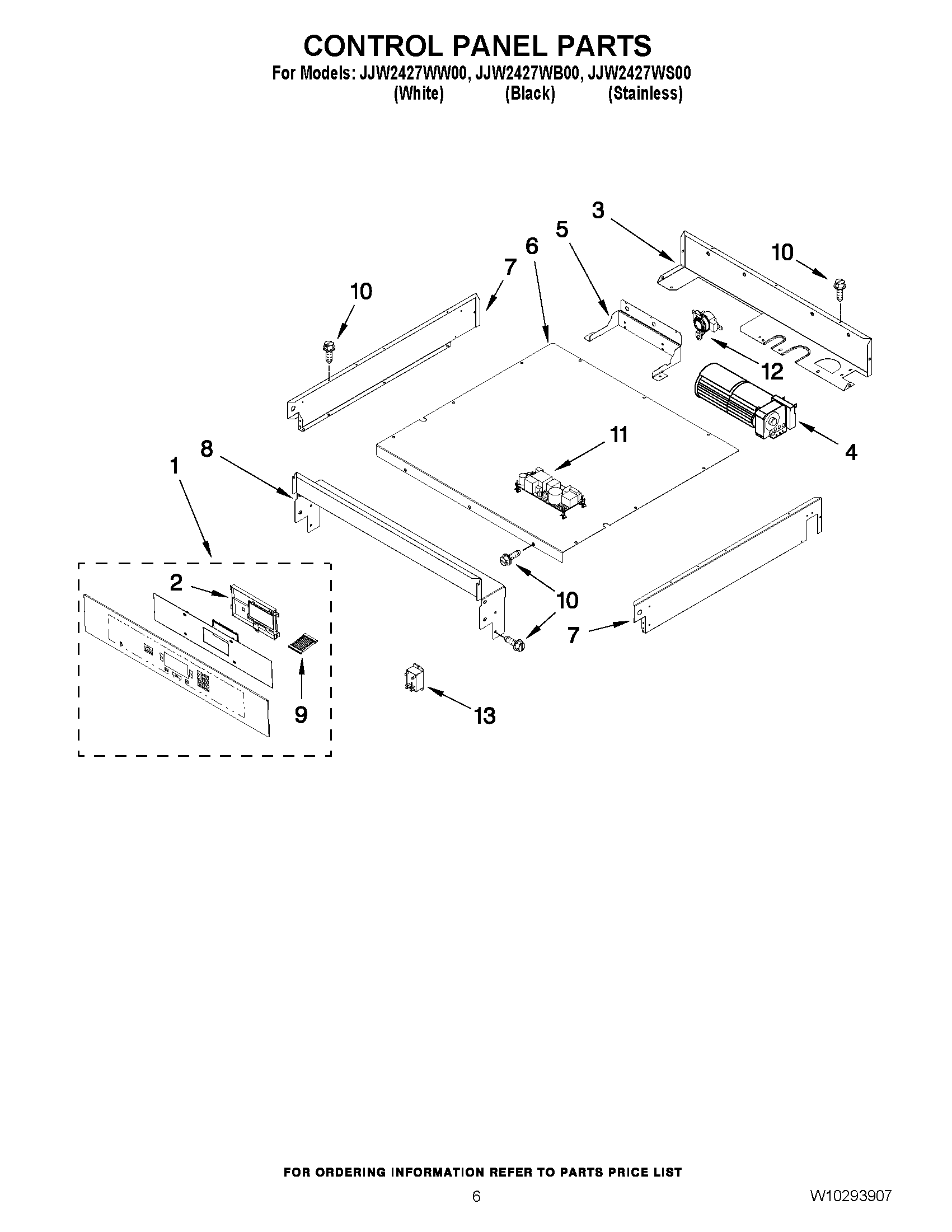

JJW2427WW00 04 – CONTROL PANEL PARTS
Written by
in
JJW2427WW00 04 – CONTROL PANEL PARTS
Products
Position
Product
1
MAY W10212646
1
MAY W10212647
1
MAY W10204269
2
MAY W10289537
3
MAY W10187048
4
BLOWER (UPPER)
5
BRACKET, COOLING FAN UPPER
6
MAY W10176180
7
PANEL, CONTROL BOX (RIGHT SIDE)
7
PANEL, CONTROL BOX (LEFT SIDE)
8
SUPPORT, TOP CNTRL
9
MAY W10175829
10
MAY 7101P426- 60
11
MAY W10176142
12
SWITCH, OVEN LIMIT
13
MAY W10289533
←
