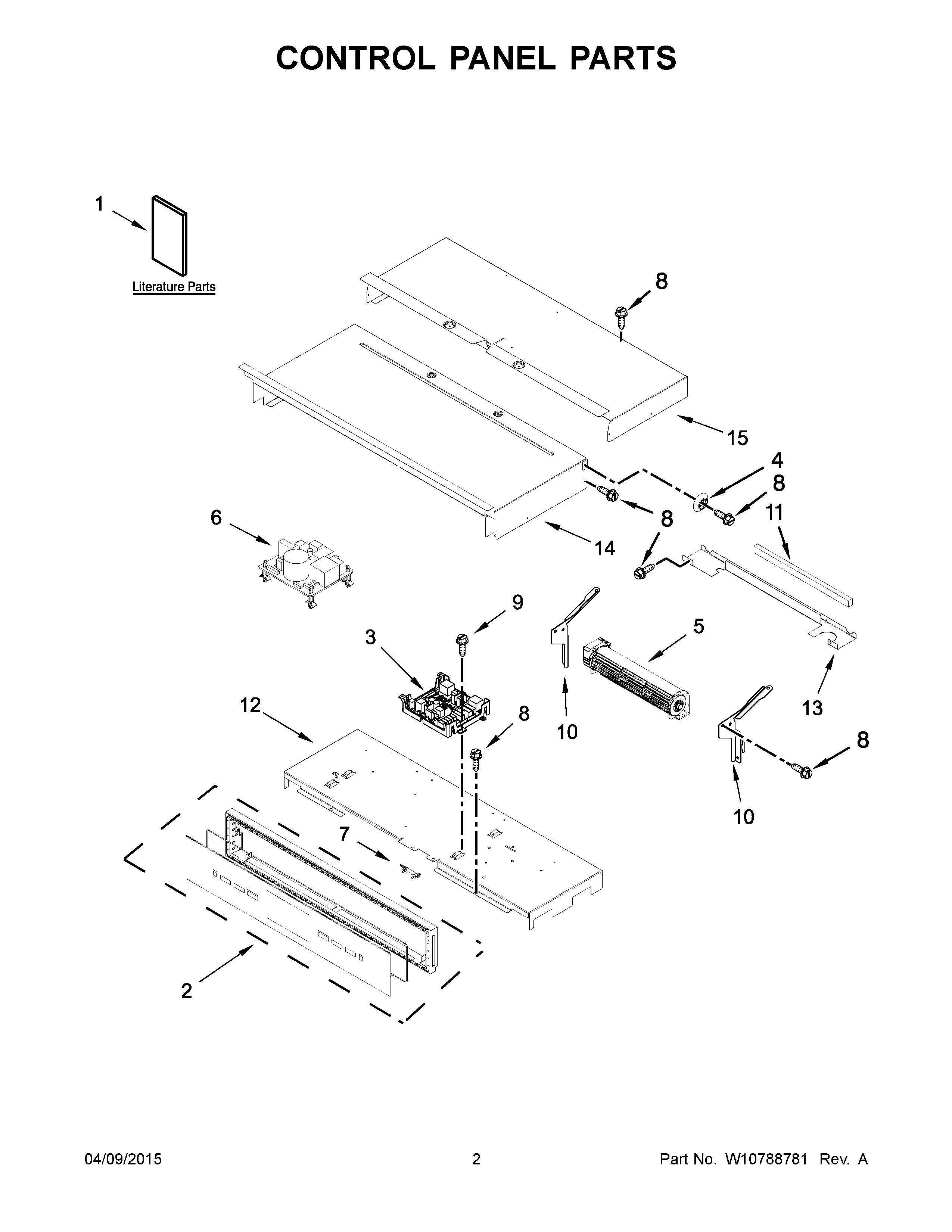

JJW2430DB00 02 – CONTROL PANEL PARTS

JJW2430DB00 02 – CONTROL PANEL PARTS

Written by

in

JJW2430DB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIBRACKET, HARNESS
NIHARNESS, EOL
NICLAMP, CONDUIT
NIHARNESS, DOOR LATCH
NISTRAP, LEAD GROUND
NIHARNESS, SIGNAL
NIHARNESS, MAIN
NILINER (NOT A SERVICEABLE PART)
NIMAY 4450800
1GUIDE, USE & CARE
1BSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
2MAY W10484355
3CONTROL (WITH POWER SUPPLY)
4SPACER, LATERAL
5BLOWER
6BOARD, POWER SUPPLY
7FUSE, THERMAL
8MAY 7101P426- 60
9MAY 7101P434-60
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12MAY W10694467
13CHASSIS, BACK DIVIDER
14CHASSIS, COVER TOP FRONT 30
15CHASSIS, COVER TOP BACK 30"
