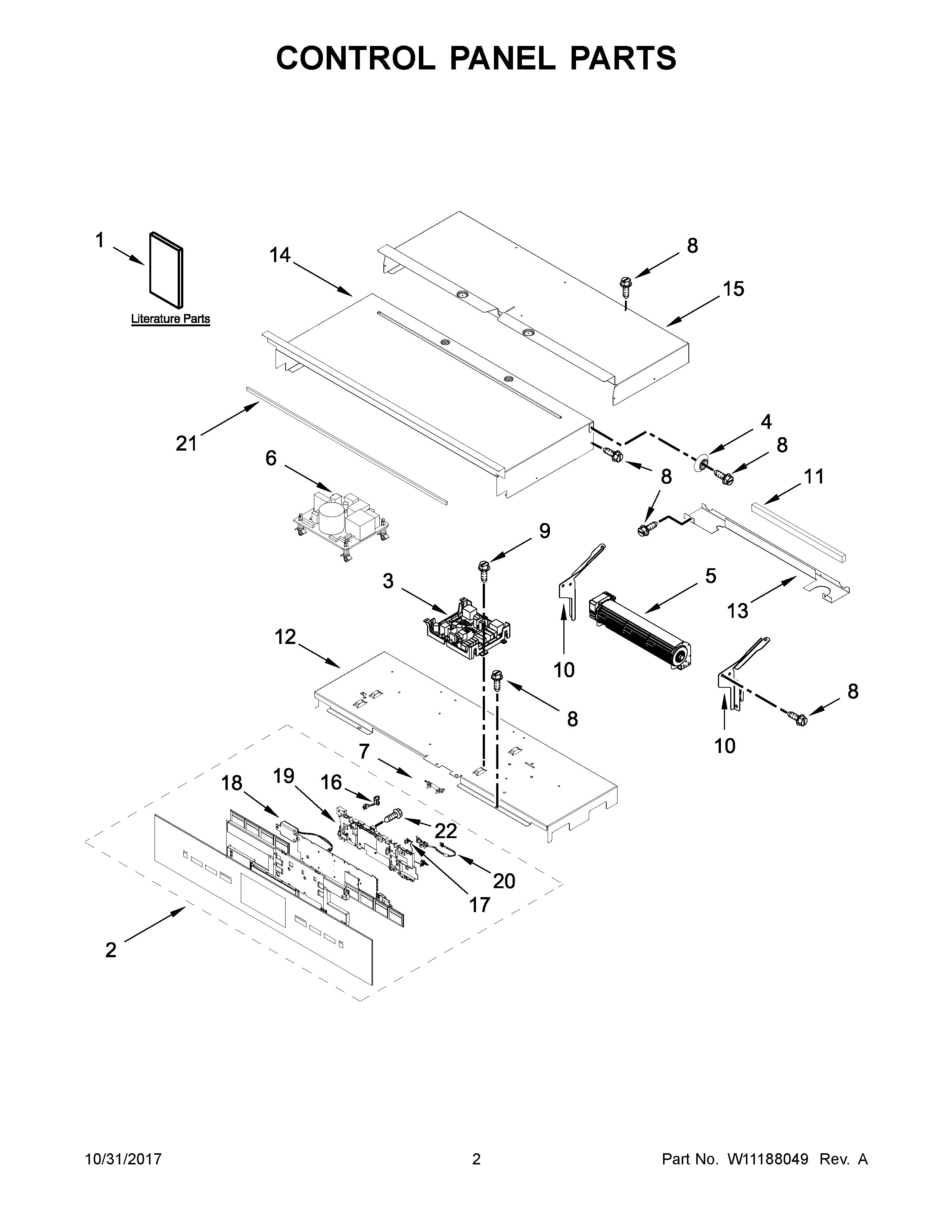

JJW2430DB02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIHARNESS, EOL
NIBRACKET, HARNESS
NIMAY W10775068
NISTRAP, LEAD GROUND
NICLAMP, CONDUIT
NIHARNESS, SIGNAL
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIMAY 4450800
NIBRACKET, FUSE
1BSHEET, TECH
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
2MAY W10484355
3CONTROL (WITH POWER SUPPLY)
4SPACER, LATERAL
5BLOWER
6BOARD, POWER SUPPLY
7FUSE, THERMAL
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12TRAY, ELECTRONIC
13CHASSIS, BACK DIVIDER
14CHASSIS, COVER TOP FRONT 30
15CHASSIS, COVER TOP BACK 30"
16HARNESS, KEYPAD (LEFT TO CENTER)
17HARNESS, KEYPAD (RIGHT TO CENTER)
18ASSEMBLY, SPEAKER
19HOUSING
20JUMPER HARNESS, POWER SUPPLY
21GASKET, RUBBER
22MAY W10489172
