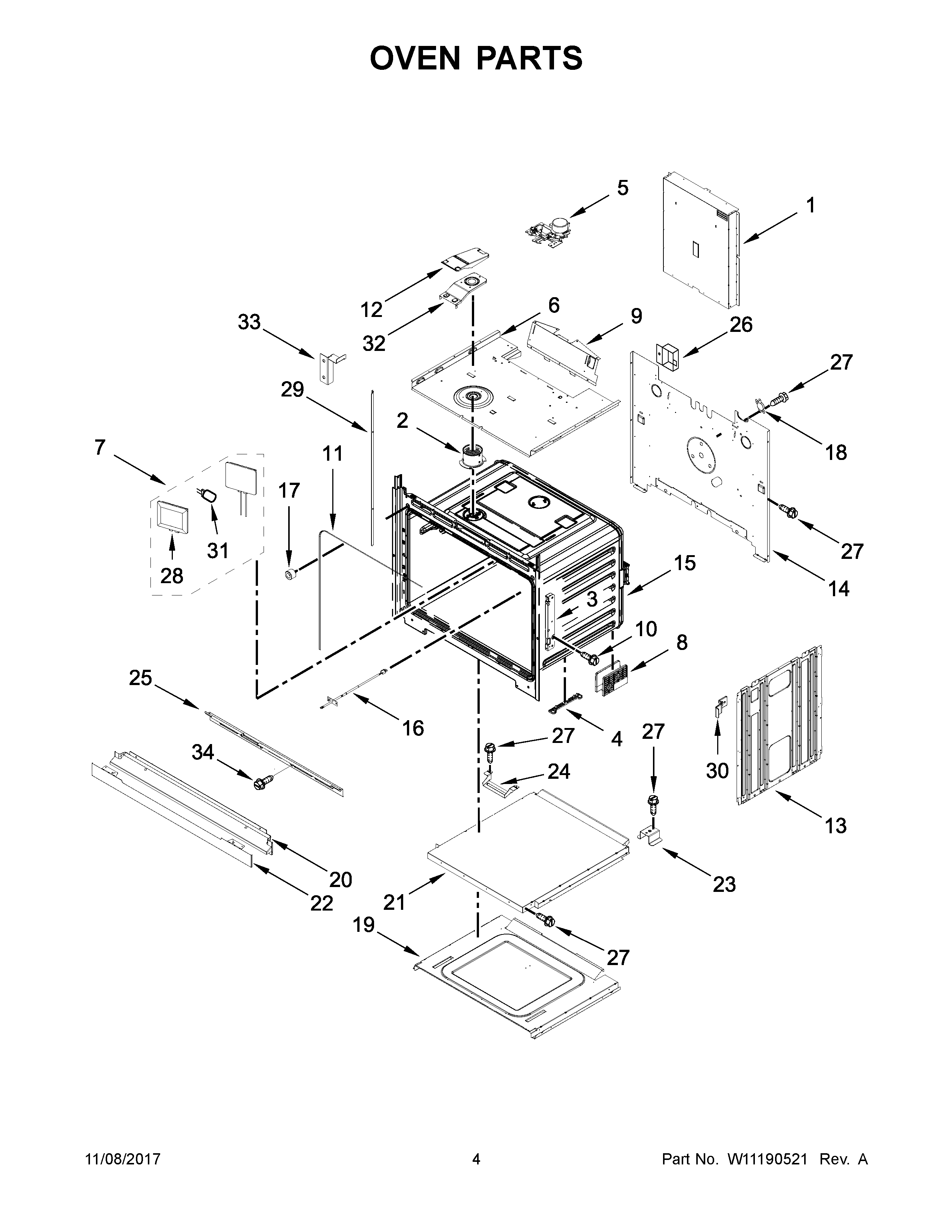

JJW2430DP02 03 – OVEN PARTS

Products

Position	Product
NI	MAY W10282944
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
1	DUCT, CHASSIS BACK
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
16	MAY W10622170
17	BUMPER & SCREW
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	VENT, TOP 30"
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29A	COVER, SIDE TRIM (BLACK (RIGHT))
29	COVER, SIDE TRIM (BLACK (LEFT))
30	MAY W10347649
31	BULB, LIGHT
32	BASE, VENT EXHAUST
33	BRACKET, SIDE COVER (LEFT)
33A	BRACKET, SIDE COVER (RIGHT)
34	MAY W10607120
