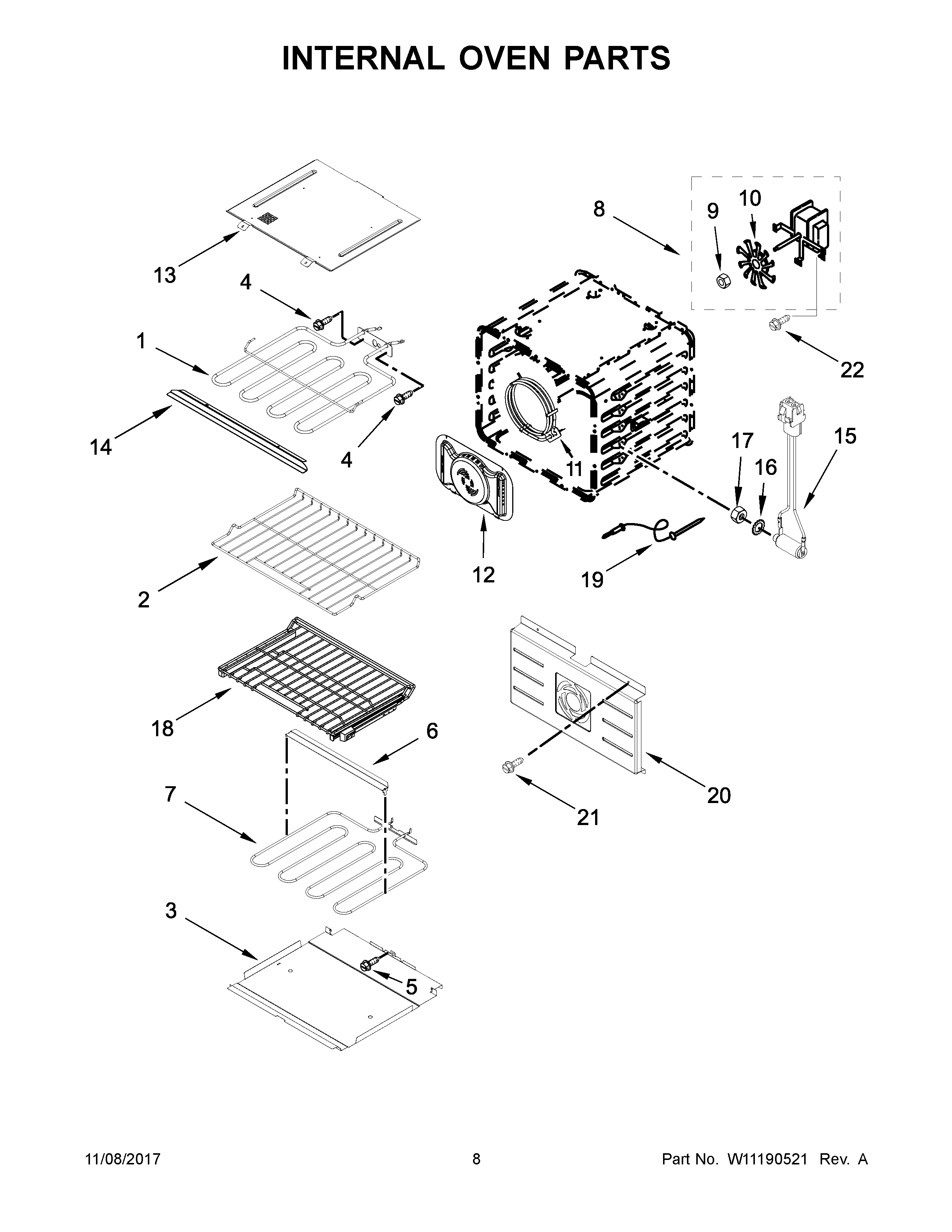

JJW2430DP02 05 – INTERNAL OVEN PARTS

JJW2430DP02 05 – INTERNAL OVEN PARTS

Written by

in

JJW2430DP02 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P434-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	MAY W10722667
9	MAY W10631504
10	MAY W10631503
11	ELEMENT, CONVECTION
12	BAFFLE, BOW TIE
13	SHIELD, BROIL ELEMENT
14	SHIELD, BROIL FRONT
15	JACK, MEAT PROBE
16	WASHER
17	LOCKNUT
18	RACK, SLIDING
19	PROBE-MEAT
20	COVER, BAFFLE
21	SCREW
22	SCREW
