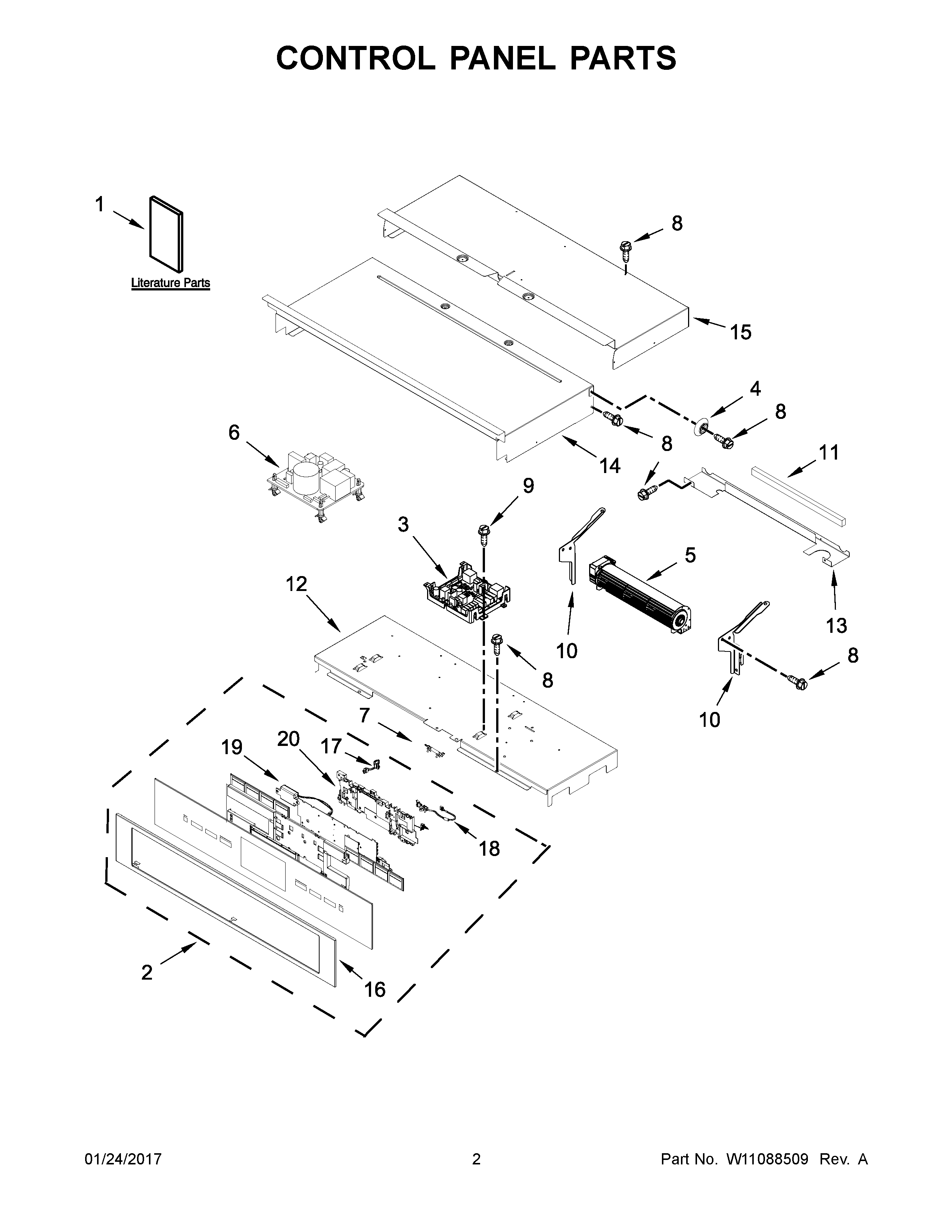

JJW2430DS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	BRACKET, HARNESS
NI	CLIP, HARNESS
NI	HARNESS, EOL
NI	MAY W10775068
NI	STRAP, LEAD GROUND
NI	CLAMP, CONDUIT
NI	HARNESS, SIGNAL
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	BRACKET, FUSE
NI	MAY 4450800
1B	SHEET, TECH
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
2	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30
15	CHASSIS, COVER TOP BACK 30"
16	SKIN, CONTROL PANEL (STAINLESS)
17	HARNESS, KEYPAD (LEFT TO CENTER)
18	JUMPER HARNESS, POWER SUPPLY
19	ASSEMBLY, SPEAKER
20	HOUSING
