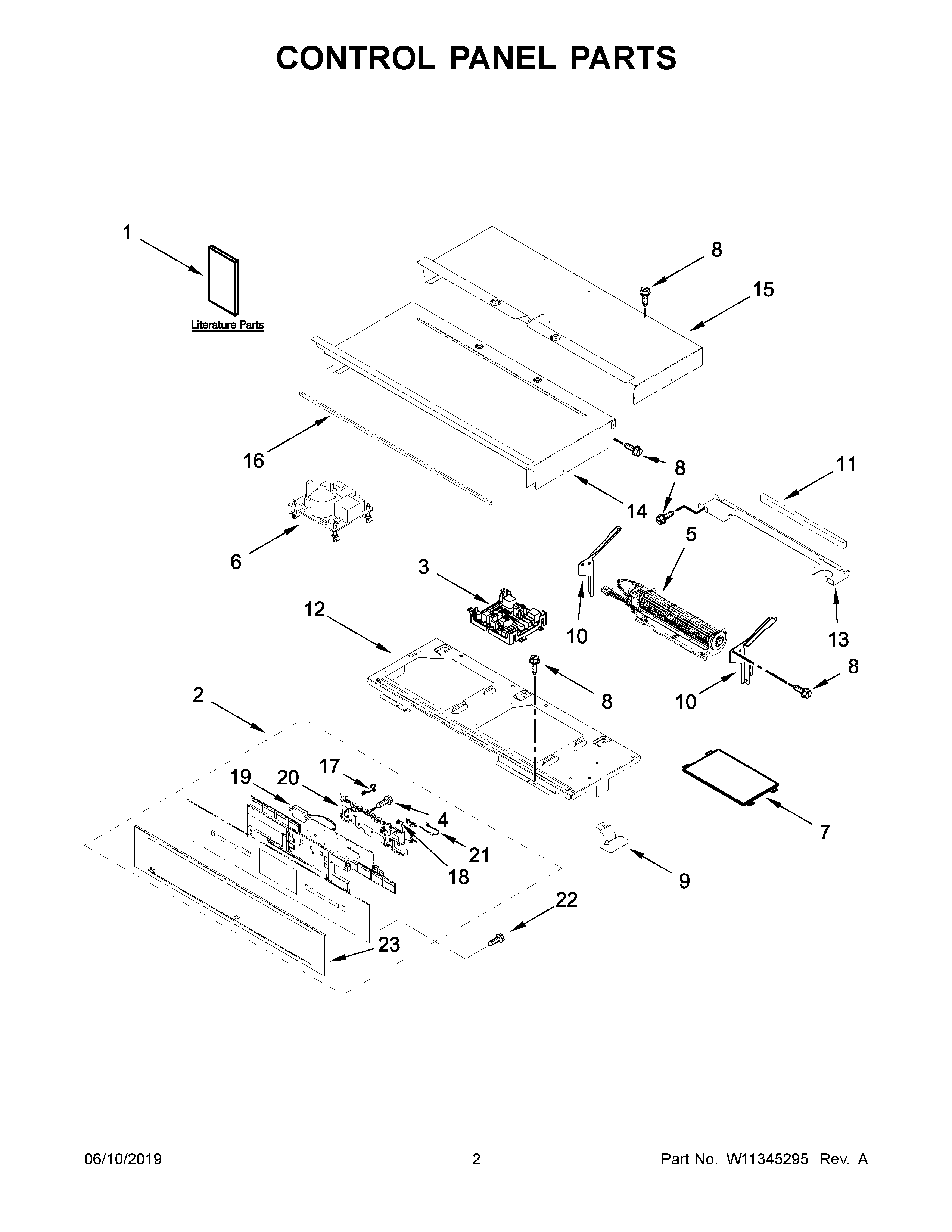

JJW2430IL00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLAMP, CONDUIT
NI	CLIP, HARNESS
NI	HARNESS, EOL
NI	BRACKET, HARNESS
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	HARNESS, DOOR LATCH
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
1	GUIDE, USE & CARE (OVEN)
1A	INSTRUCTIONS, INSTALLATION
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
1C	DIAGRAM, WIRING
1D	SHEET, TECH
2	MAY W11196772
3	MAY W11281214
4	MAY W10489172
5	BLOWER
6	BOARD, POWER SUPPLY
7	SHIELD, CHASSIS TOP COVER
8	MAY 7101P426- 60
9	SUPPORT, ELECTRONIC TRAY
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 30"
15	CHASSIS, COVER TOP BACK 30"
16	GASKET, RUBBER
17	HARNESS, KEYPAD (LEFT TO CENTER)
18	HARNESS, KEYPAD (RIGHT TO CENTER)
19	ASSEMBLY, SPEAKER
20	HOUSING
21	JUMPER HARNESS, POWER SUPPLY
22	Screw (2) (Black)
23	SKIN, CONTROL PANEL (STAINLESS)
