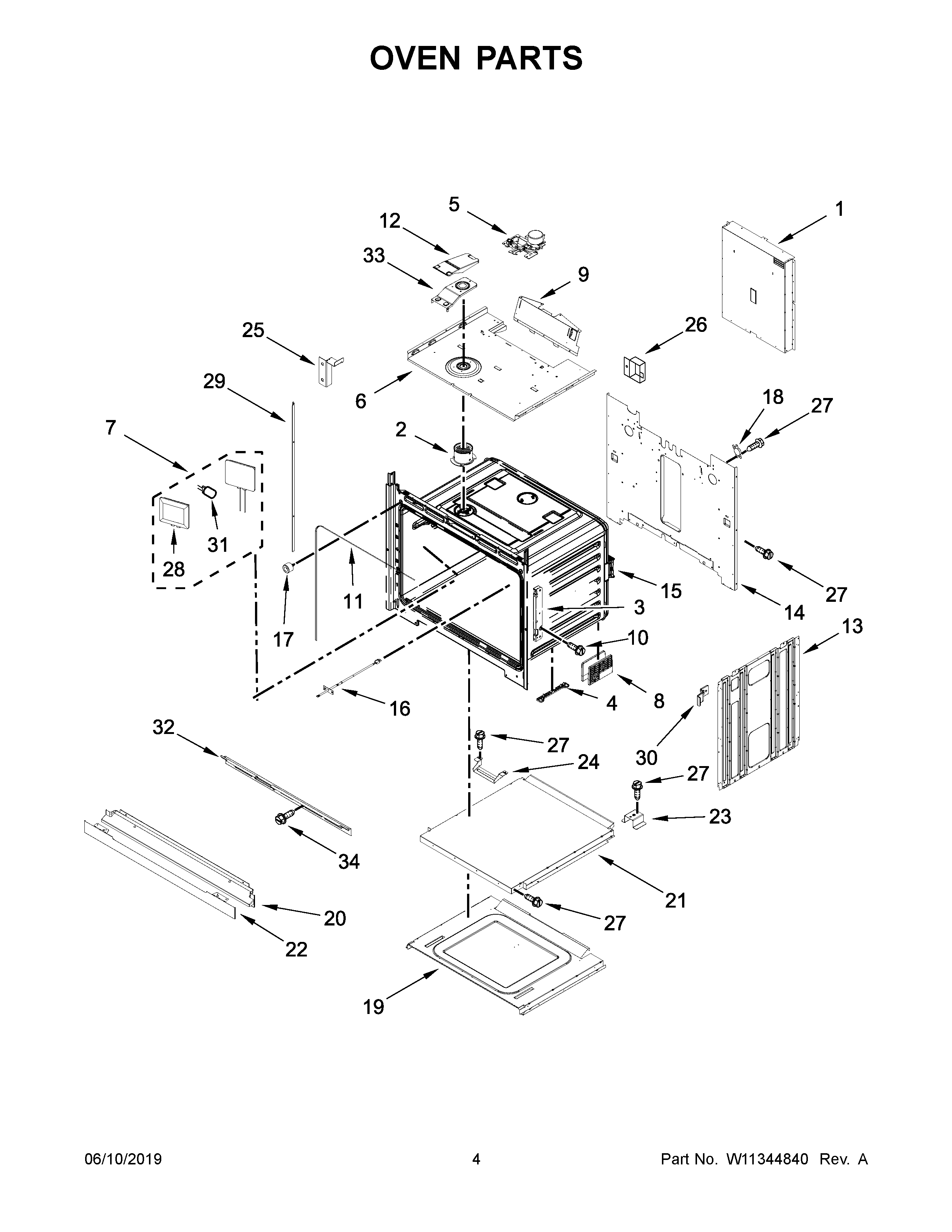

JJW2430IM00 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CAVITY
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
1	DUCT, CHASSIS BACK
2	TUBE, VENT
3	RECEIVER, HINGE
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
16	PROBE, SENSOR
17	BUMPER & SCREW
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BRACKET, SIDE COVER (LEFT)
25A	BRACKET, SIDE COVER (RIGHT)
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29A	COVER, SIDE TRIM (BLACK (RIGHT))
29	COVER, SIDE TRIM (BLACK (LEFT))
30	MAY W10347649
31	BULB, LIGHT
32	VENT, TOP 30"
33	BASE, VENT EXHAUST
34	MAY 7101P427-60
