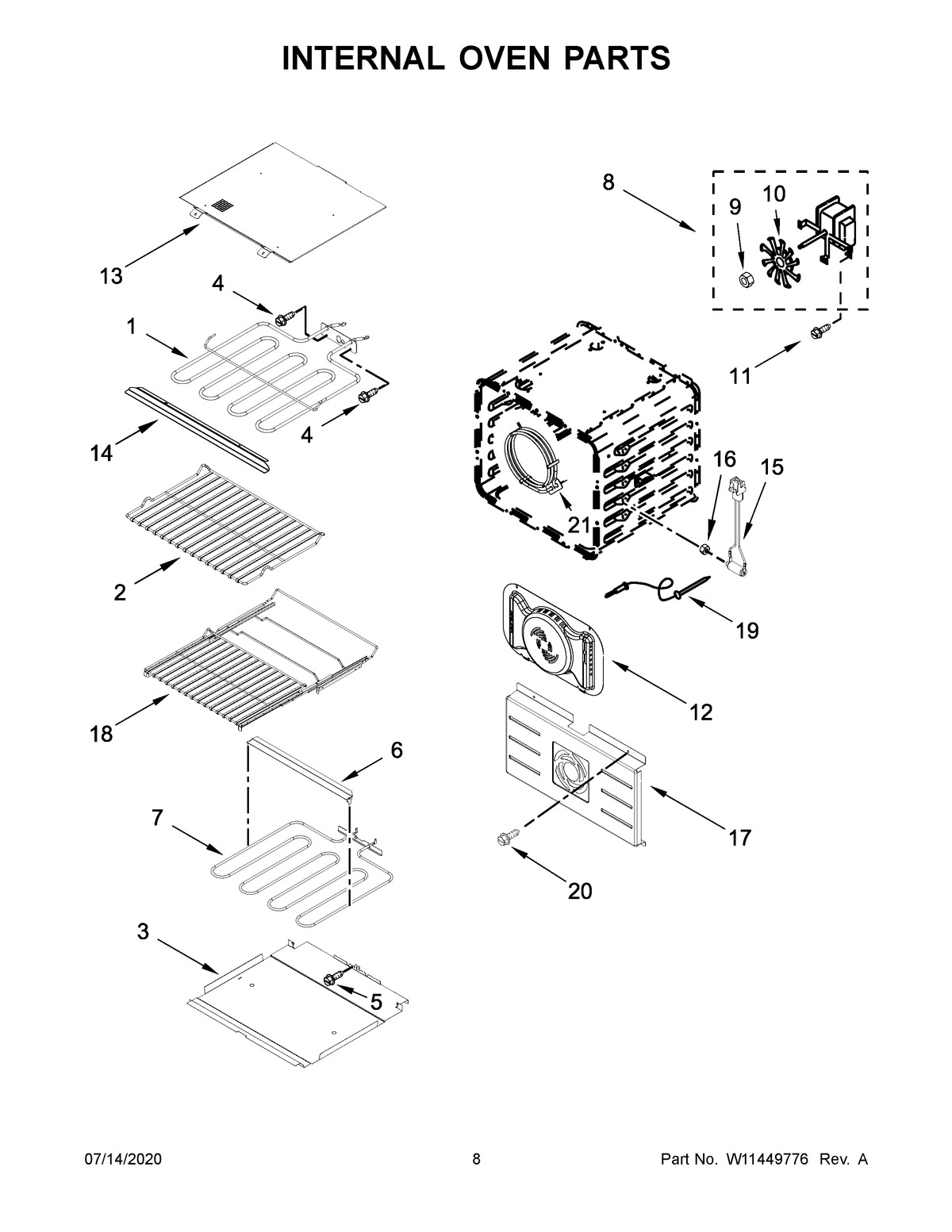

JJW2430IM01 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, BROIL
2RACK, OVEN
3TRAY, HIDDEN BAKE
4MAY 7101P434-60
5MAY 7101P426- 60
6CROSSBAR, HIDDEN BAKE TRAY
7ELEMENT, BAKE
8MAY W10722667
9MAY W10631504
10MAY W10631503
11SCREW
12BAFFLE, BOW TIE
13SHIELD, BROIL ELEMENT
14SHIELD, BROIL FRONT
15JACK, MEAT PROBE
16NUT, LOCKING
17COVER, BAFFLE
18RACK, SLIDING
19PROBE-MEAT
20SCREW
21ELEMENT, CONVECTION
