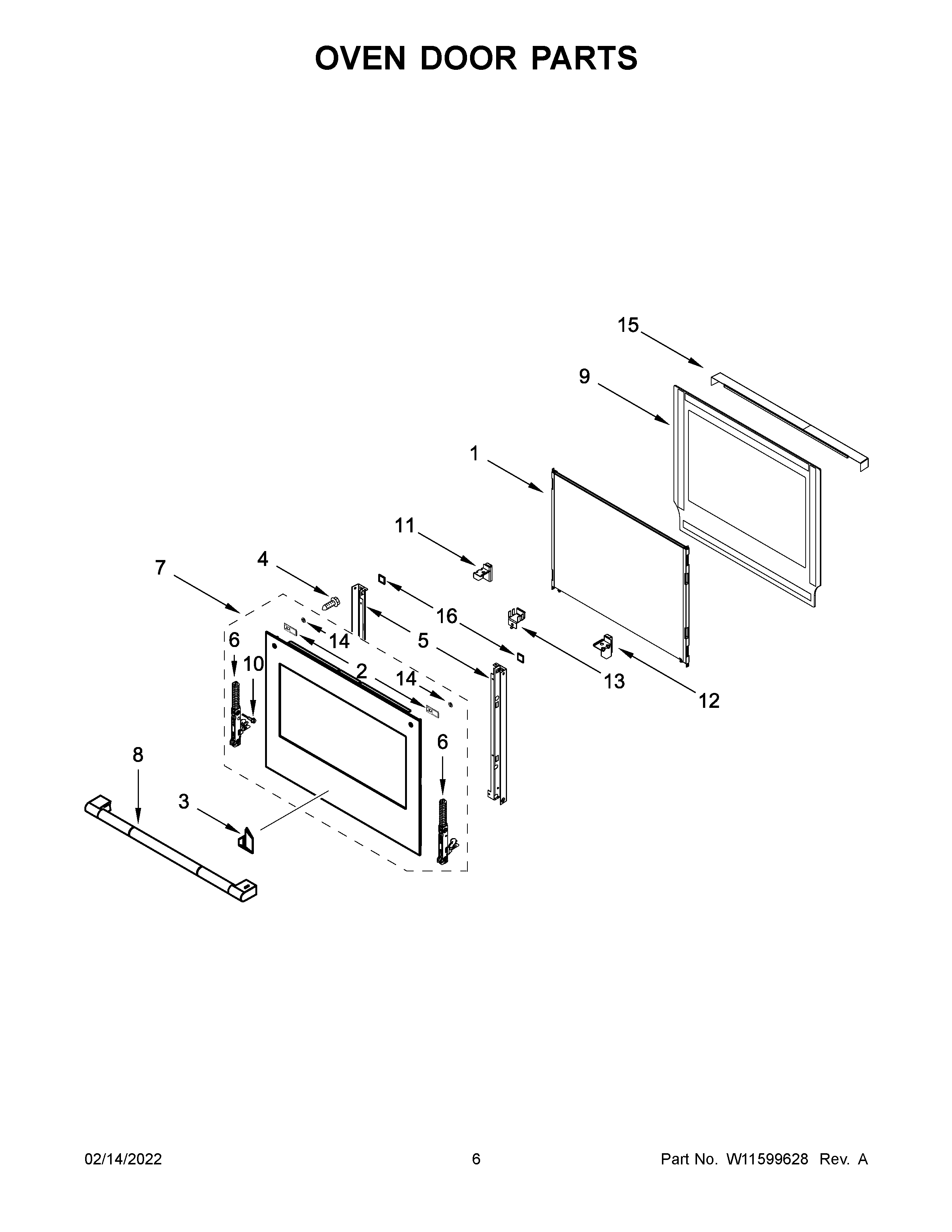

JJW2430LL00 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11600213 Whirlpool Oven Door Glass
2	W10650497 Whirlpool Spacer
3	W11320231 Whirlpool Dishwasher Nameplate
4	W11602624 Whirlpool Oven Screw
5	W11598126 Whirlpool Support Bracket
5A	W11598127 Whirlpool Support Bracket
6	HINGE, DOOR (LEFT)
6A	HINGE, DOOR (RIGHT)
7	W11602612 Whirlpool Oven Door Glass
8	W11342060 Whirlpool Door Handle
9	W11602610 Whirlpool Oven Glass Door
10	WP3196183 Whirlpool Screw
11	W11598130 Whirlpool Oven Support Bracket
12	W11598128 Whirlpool Oven Support Bracket
13	W11598131 Whirlpool Oven Clip
14	W11676355 Whirlpool Washer
15	TRIM-VENT
16	WPW10517428 Whirlpool Spacer
