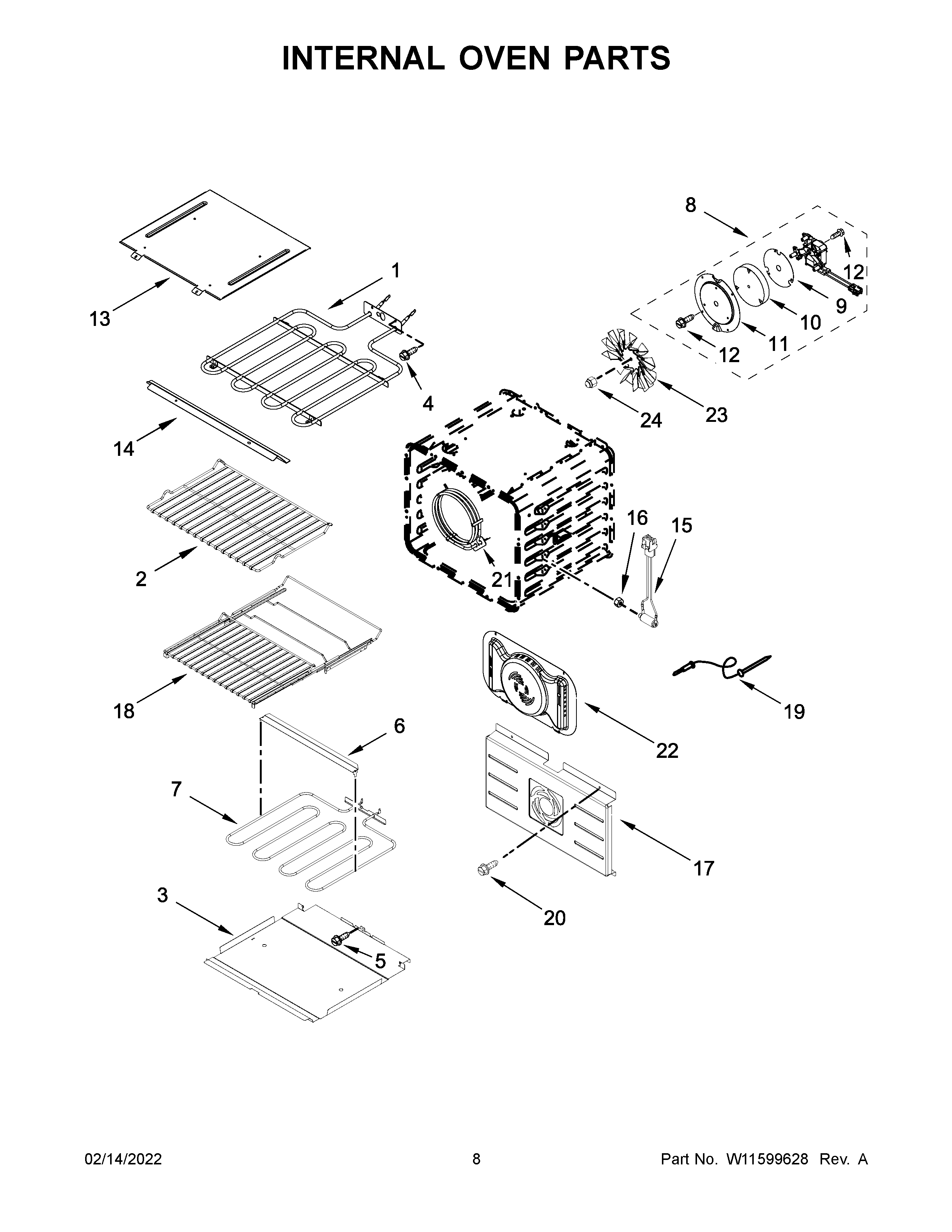

JJW2430LL00 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11598122 Whirlpool Broil Element
2W11242906 Whirlpool Oven Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8CONVECT MOTOR ASSEMBLY
9PLATE, CONVECT MOTOR
10INSULATION, CONVECT MOTOR
11COVER, CONVECT PLATE
12W10850807 Whirlpool Screw
13TOP-CABNT
14SHIELD-HT
15W11252826 Whirlpool Probe Jack
16W11231343 Whirlpool Lock Nut
17W10521808 Whirlpool Baffle Convect
18W11256305 Whirlpool Oven Rack
19WP9755542 Whirlpool Oven Meat Probe
20SCREW
21W11678579 Whirlpool Element
22BAFFLE, BOW TIE
23W11548753 Whirlpool Convection Fan
24W11548755 Whirlpool Nut
