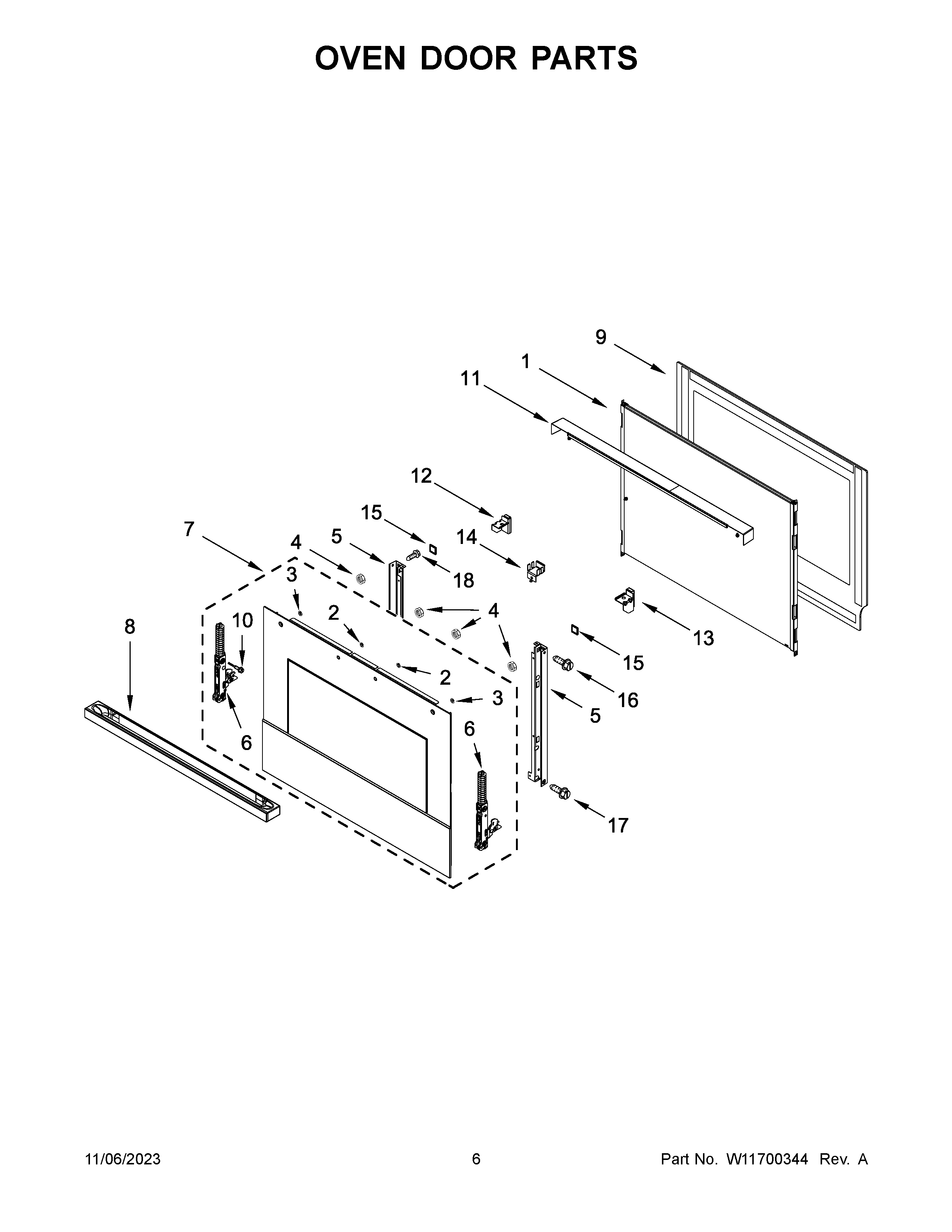

JJW2430LM01 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11600213 Whirlpool Oven Door Glass
2	SPACER, HANDLE
3	W11676355 Whirlpool Washer
4	W11602632 Whirlpool Nut Assembly
5A	W11598127 Whirlpool Support Bracket
5	W11598126 Whirlpool Support Bracket
6	HINGE, DOOR (LEFT)
6A	HINGE, DOOR (RIGHT)
7	W11602613 Whirlpool Door Glass
8	W11411894 Whirlpool Door Handle Assembly
9	W11602610 Whirlpool Oven Glass Door
10	WP3196183 Whirlpool Screw
11	TRIM-VENT
12	W11598130 Whirlpool Oven Support Bracket
13	W11598128 Whirlpool Oven Support Bracket
14	W11598131 Whirlpool Oven Clip
15	WPW10517428 Whirlpool Spacer
16	WP694091 Whirlpool Screw
17	W11617225 Whirlpool Oven Screw
18	W10443110 Whirlpool Screw
