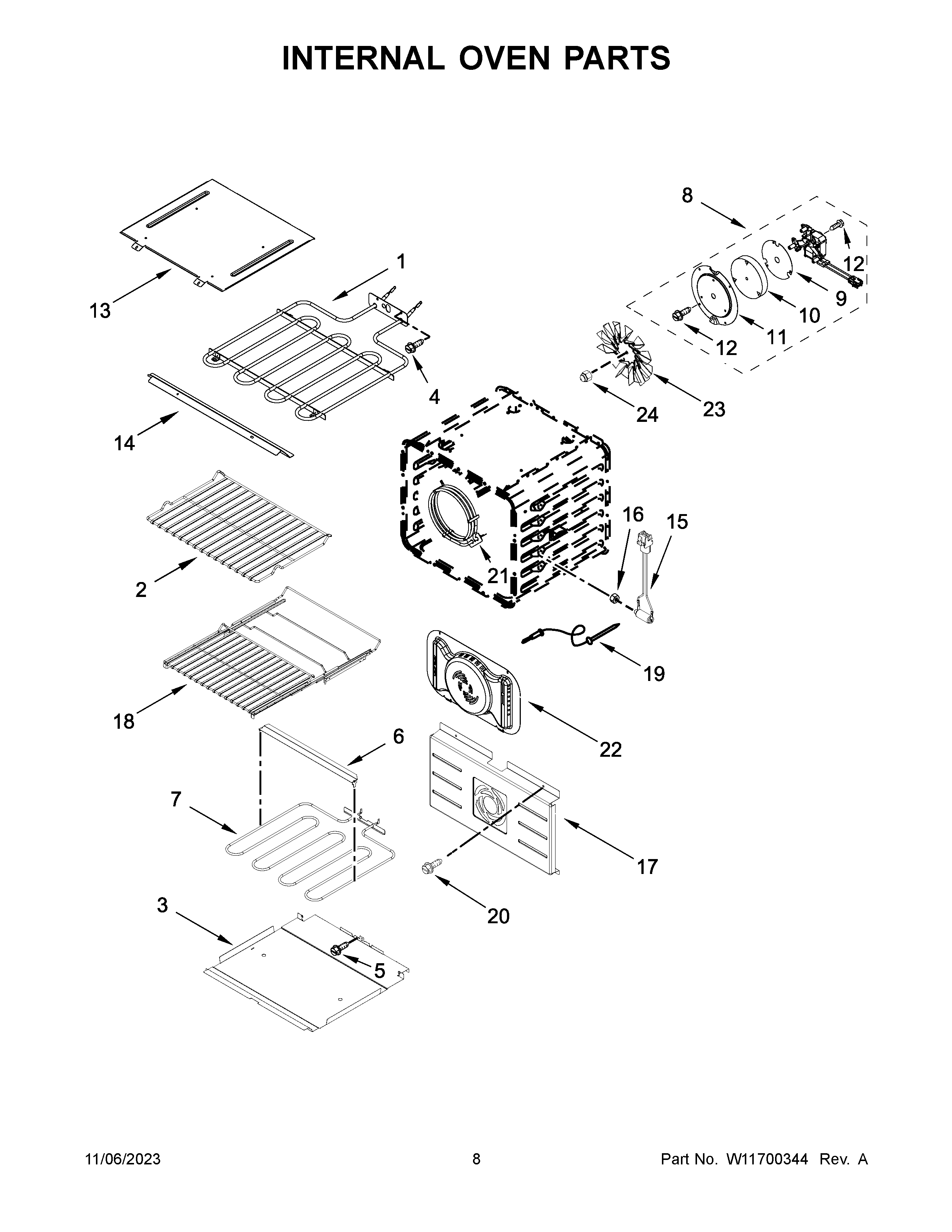

JJW2430LM01 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	W11242906 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	CONVECT MOTOR ASSEMBLY
9	PLATE, CONVECT MOTOR
10	INSULATION, CONVECT MOTOR
11	COVER, CONVECT PLATE
12	W10850807 Whirlpool Screw
13	TOP-CABNT
14	SHIELD-HT
15	W11252826 Whirlpool Probe Jack
16	W11231343 Whirlpool Lock Nut
17	W10521808 Whirlpool Baffle Convect
18	W11256305 Whirlpool Oven Rack
19	WP9755542 Whirlpool Oven Meat Probe
20	SCREW
21	W11678579 Whirlpool Element
22	BAFFLE, BOW TIE
23	W11548753 Whirlpool Convection Fan
24	W11548755 Whirlpool Nut
