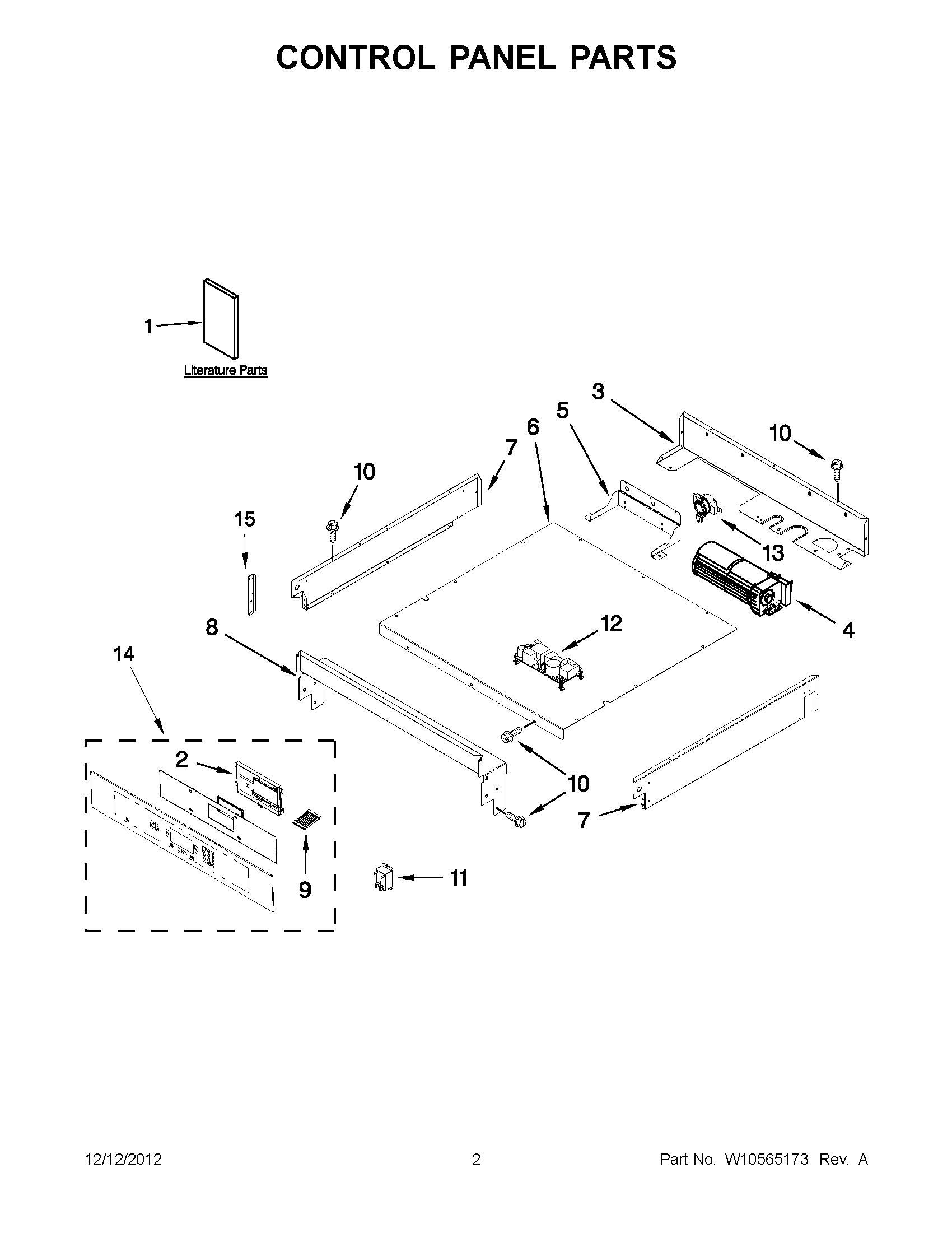

JJW2430WB02 01 – CONTROL PANEL PARTSadmin2025-04-26T09:25:15+00:00JJW2430WB02 01 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | INSTRUCTIONS, UNDERCOUNTER |
| 1 | USE & CARE GUIDE |
| 1 | MAY W10221386 |
| 1 | MAY W10213742 |
| 1 | MAY W10213733 |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | INSTR, INSTALLER |
| 2 | ASSY., UI EXTENDED |
| 3 | MAY W10187048 |
| 4 | BLOWER (UPPER) |
| 5 | BRACKET, COOLING FAN UPPER |
| 6 | MAY W10176180 |
| 7 | PANEL, CONTROL BOX (RIGHT SIDE) |
| 7 | PANEL, CONTROL BOX (LEFT SIDE) |
| 8 | MAY W10512901 |
| 9 | MAY W10175829 |
| 10 | MAY 7101P426- 60 |
| 11 | MANAGER, APPLIANCE |
| 12 | CONTROL, ELEC |
| 13 | SWITCH, OVEN LIMIT |
| 14 | MAY W10517880 |
| 14 | MAY W10517884 |
| 14 | MAY W10517886 |
| 14 | MAY W10517887 |
| 15 | MAY W10512904 |
