JJW2430WP01 01 – OVEN PARTS
Written by
in

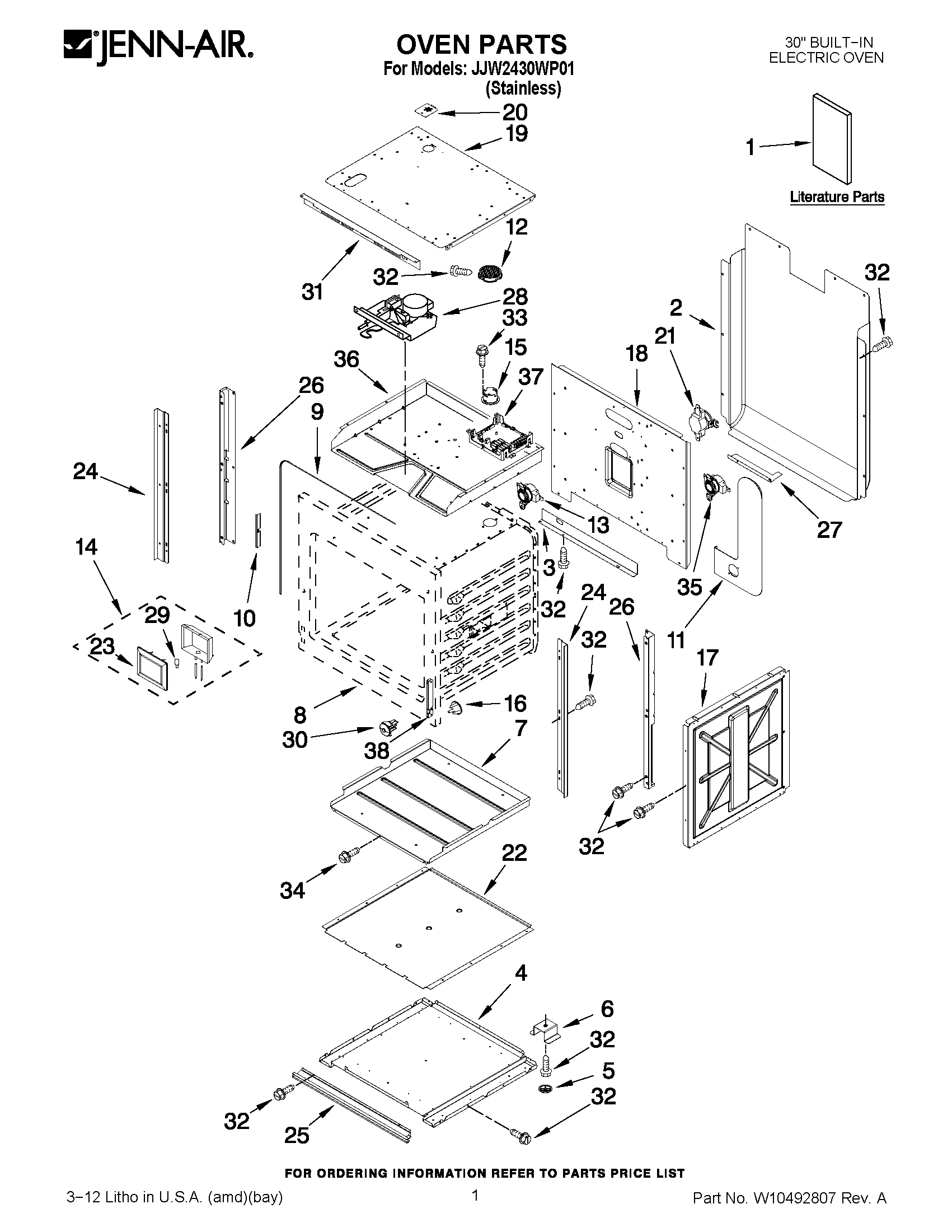

JJW2430WP01 01 – OVEN PARTS
Products
Position
Product
NI
MAY W10213750
NI
MAY W10186989
1
USE & CARE GUIDE
1
MAY W10221386
1
MAY W10213733
1
TIPS, SAFE COOKING (ENGLISH)
1
INSTRUCTIONS, UNDERCOUNTER
1
MAY W10213742
1
TIPS, SAFE COOKING (FRENCH)
2
MAY 2624F043-51
3
BAFFLE, REAR LOWER
4
MAY W10280327
5
MAY 8038P035-60
6
MAY W10213759
7
MAY 3401F079-45
8
MAY W10175987
9
MAY W10213818
10
MAY W10176218
11
MAY 4006W217-45
12
SCREEN, SMOKE ELM.
13
SWITCH, OVEN LIMIT
14
MAY W10175989
15
MAY 8026P065-60
16
MAY 7718P033-60
17
MAY W10175995
18
MAY W10213724
19
MAY W10175998
20
MAY W10213792
22
CHANNEL, BTM AIR BAKE ELEMENT
23
MAY W10187003
24
MAY W10277586
25
MAY W10176036
26
MAY W10277423
26
MAY W10277424
27
MAY W10186984
28
LATCH, DOOR
29
BULB, OVEN
30
MAY W10213745
31
TRIM, CTRL PNL TOP
32
MAY 7101P426- 60
33
MAY 7101P434-60
34
MAY W10236129
35
SWITCH, HI LIMIT
36
MAY W10186749
37
CONTROL, ELEC
38
MAY W10175993
←
