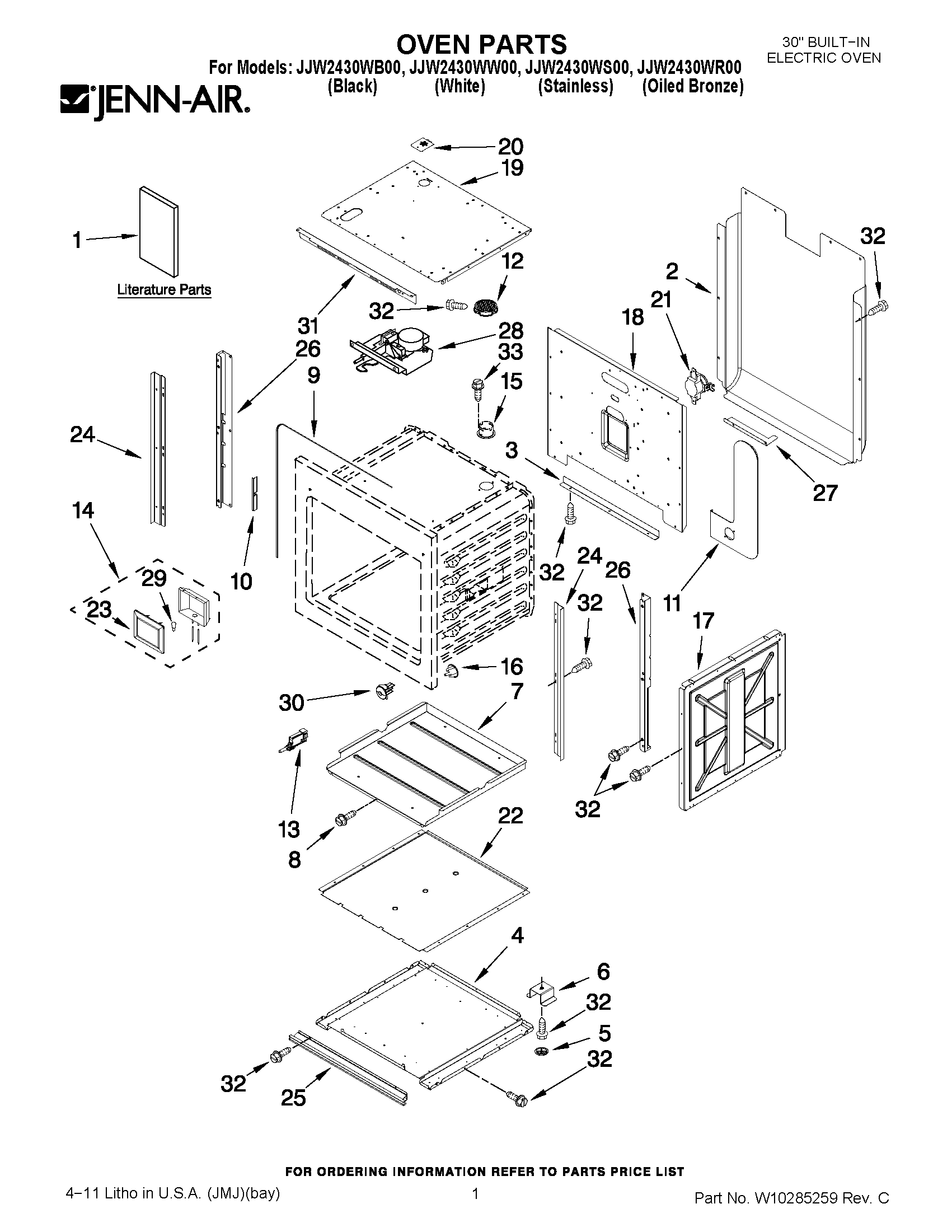

JJW2430WS00 01 – OVEN PARTSadmin2025-04-26T09:26:35+00:00JJW2430WS00 01 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY W10213750 |
| NI | MAY W10186989 |
| 1 | MAY W10221394 |
| 1 | MAY W10176244 |
| 1 | MAY W10221386 |
| 1 | MAY W10213733 |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY W10213742 |
| 2 | MAY 2624F043-51 |
| 3 | BAFFLE, REAR LOWER |
| 4 | MAY W10280327 |
| 5 | MAY 8038P035-60 |
| 6 | MAY W10213759 |
| 7 | MAY 3401F079-45 |
| 8 | MAY W10236129 |
| 9 | MAY W10213818 |
| 10 | MAY W10176218 |
| 11 | MAY 4006W217-45 |
| 12 | SCREEN, SMOKE ELM. |
| 13 | MAY W10286173 |
| 14 | MAY W10175989 |
| 15 | MAY 8026P065-60 |
| 16 | MAY 7718P033-60 |
| 17 | MAY W10175995 |
| 18 | MAY W10213724 |
| 19 | MAY W10175998 |
| 20 | MAY W10213792 |
| 21 | SWITCH, HI LIMIT |
| 22 | CHANNEL, BTM AIR BAKE ELEMENT |
| 23 | MAY W10187003 |
| 24 | MAY W10277586 |
| 25 | MAY W10176036 |
| 25 | TRIM, BOTTOM VENT (BLACK/OILED BRONZE) |
| 26 | MAY W10277424 |
| 26 | MAY W10277423 |
| 27 | MAY W10186984 |
| 28 | LATCH, DOOR |
| 29 | BULB, OVEN |
| 30 | MAY W10213745 |
| 31 | TRIM, CTRL PNL TOP |
| 32 | MAY 7101P426- 60 |
| 33 | MAY 7101P434-60 |
