JJW2430WS01 04 – CONTROL PANEL PARTS

JJW2430WS01 04 – CONTROL PANEL PARTS

Written by

in

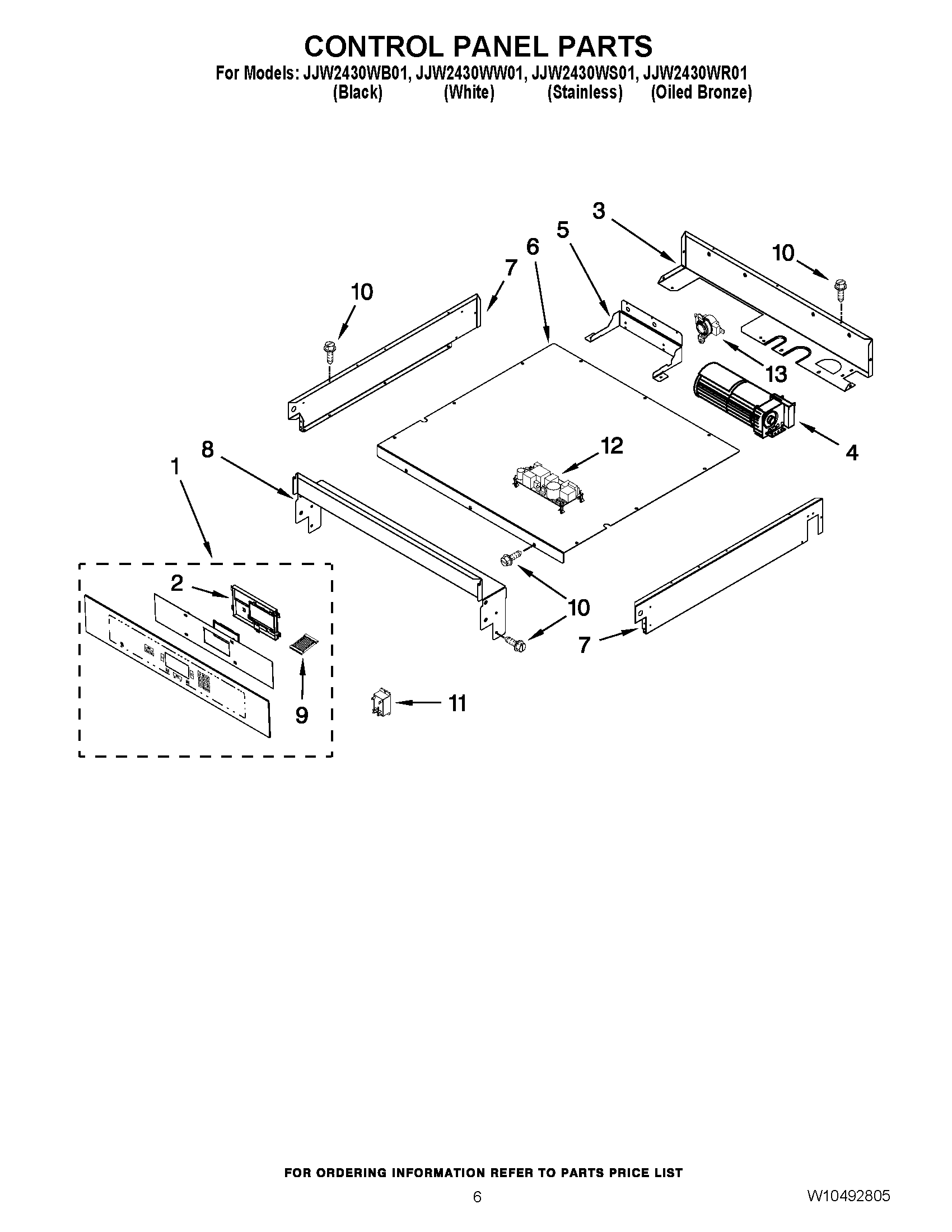

JJW2430WS01 04 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10344130
1	MAY W10344128
1	MAY W10344129
1	MAY W10344127
2	ASSY., UI EXTENDED
3	MAY W10187048
4	BLOWER (UPPER)
5	BRACKET, COOLING FAN UPPER
6	MAY W10176180
7	PANEL, CONTROL BOX (LEFT SIDE)
7	PANEL, CONTROL BOX (RIGHT SIDE)
8	SUPPORT, TOP CNTRL
9	MAY W10175829
10	MAY 7101P426- 60
11	MANAGER, APPLIANCE
12	CONTROL, ELEC
13	SWITCH, OVEN LIMIT
