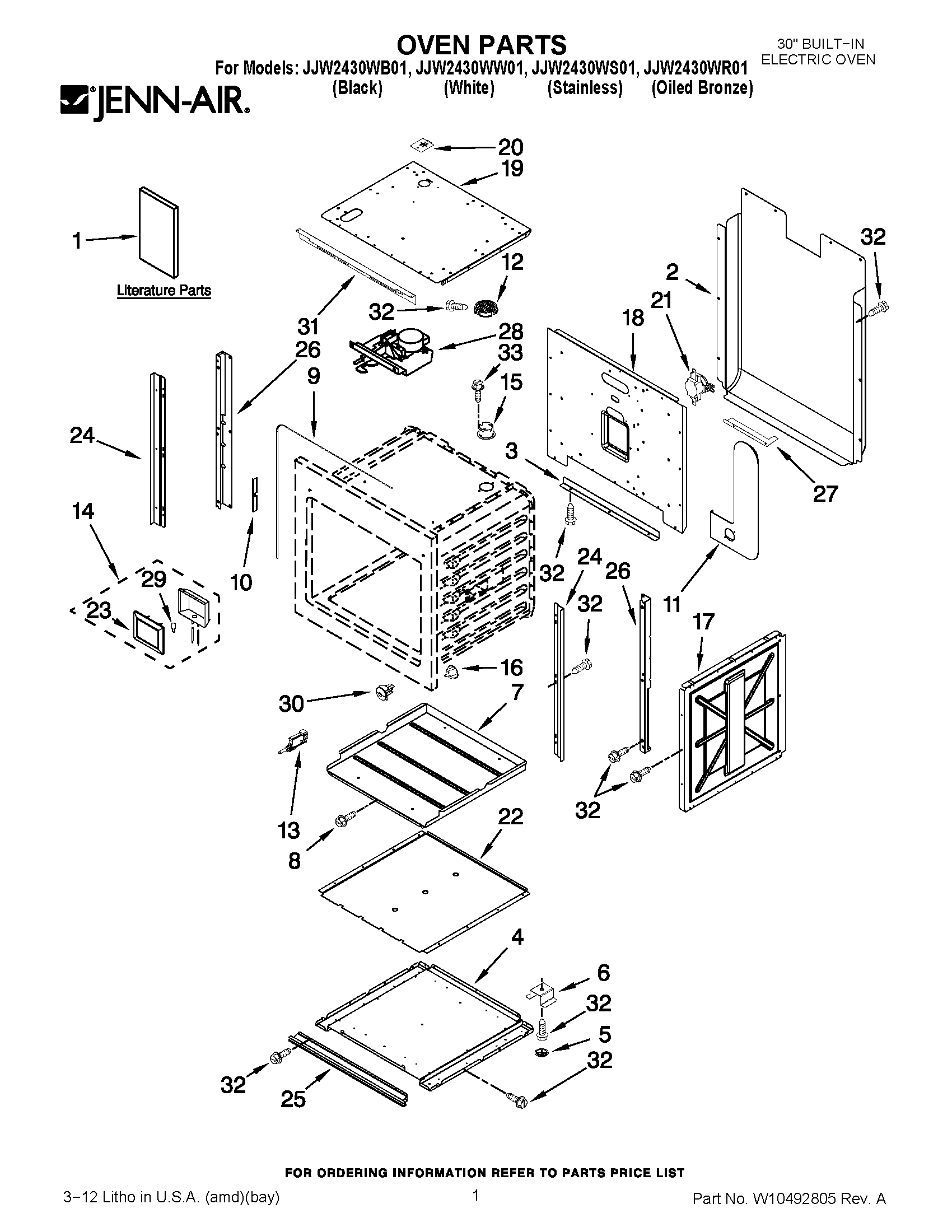

JJW2430WW01 01 – OVEN PARTS

Products

Position	Product
NI	MAY W10213750
NI	MAY W10186989
1	USE & CARE GUIDE
1	MAY W10213733
1	INSTRUCTIONS, UNDERCOUNTER
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10213742
1	TIPS, SAFE COOKING (FRENCH)
1	MAY W10221386
2	MAY 2624F043-51
3	BAFFLE, REAR LOWER
4	MAY W10280327
5	MAY 8038P035-60
6	MAY W10213759
7	MAY 3401F079-45
8	MAY W10236129
9	MAY W10213818
10	MAY W10176218
11	MAY 4006W217-45
12	SCREEN, SMOKE ELM.
13	MAY W10286173
14	MAY W10175989
15	MAY 8026P065-60
16	MAY 7718P033-60
17	MAY W10175995
18	MAY W10213724
19	MAY W10175998
20	MAY W10213792
21	SWITCH, HI LIMIT
22	CHANNEL, BTM AIR BAKE ELEMENT
23	MAY W10187003
24	MAY W10277586
25	TRIM, BOTTOM VENT (BLACK/OILED BRONZE)
25	MAY W10176036
26	MAY W10277423
26	MAY W10277424
27	MAY W10186984
28	LATCH, DOOR
29	BULB, OVEN
30	MAY W10213745
31	TRIM, CTRL PNL TOP
32	MAY 7101P426- 60
33	MAY 7101P434-60
