JJW2527WS00 06 – CONTROL PANEL PARTS – Aparts

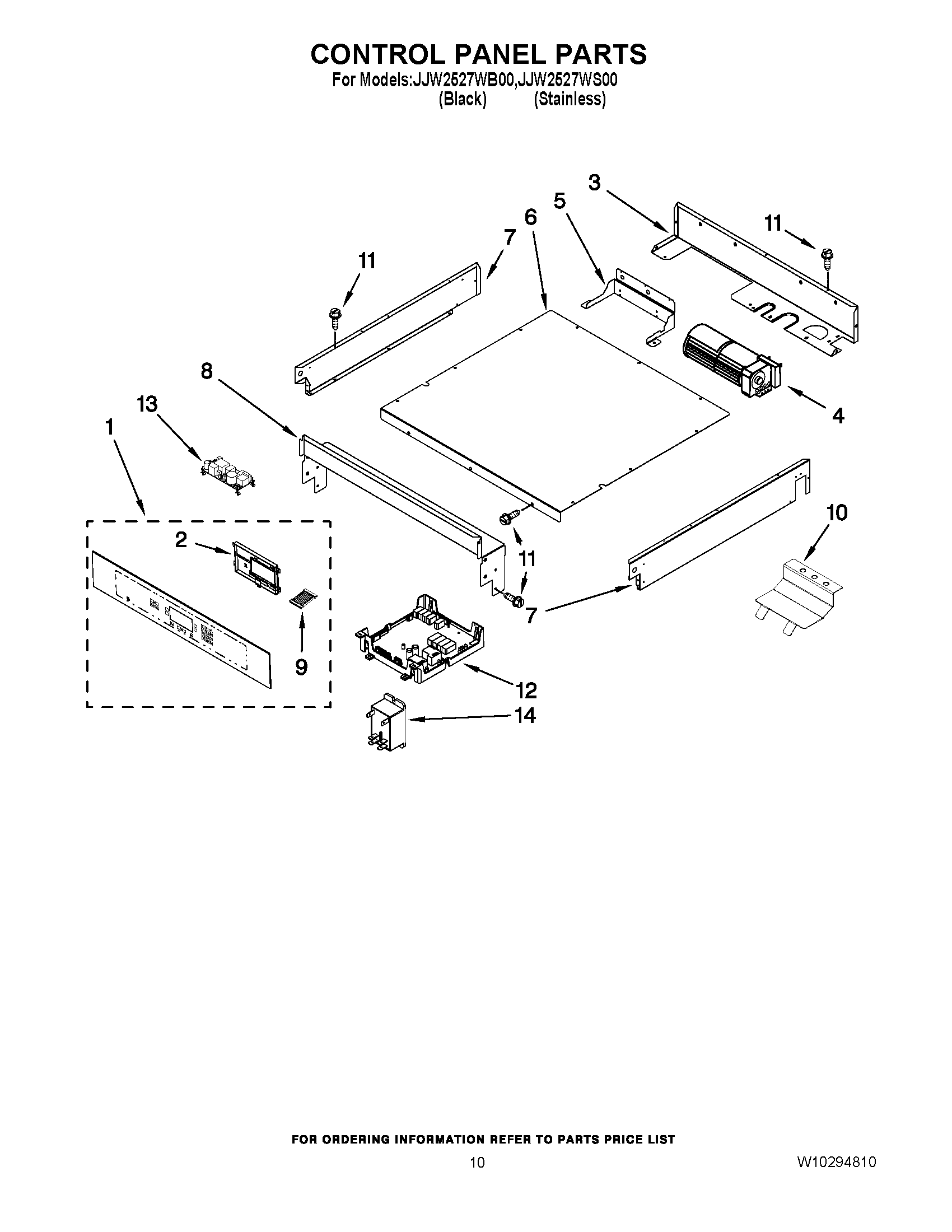

JJW2527WS00 06 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10344138
1	ASSEMBLY, CONTROL PANEL
2	ASSY., UI EXTENDED
3	MAY W10187048
4	BLOWER (UPPER)
4	MAY W10273666
5	BRACKET, COOLING FAN UPPER
5	MAY W10187016
6	MAY W10176180
7	PANEL, CONTROL BOX (LEFT SIDE)
7	PANEL, CONTROL BOX (RIGHT SIDE)
8	SUPPORT, TOP CNTRL
9	MAY W10175829
10	MAY W10176243
11	MAY 7101P426- 60
12	MAY W10292568
13	CONTROL, ELEC
14	RELAY
