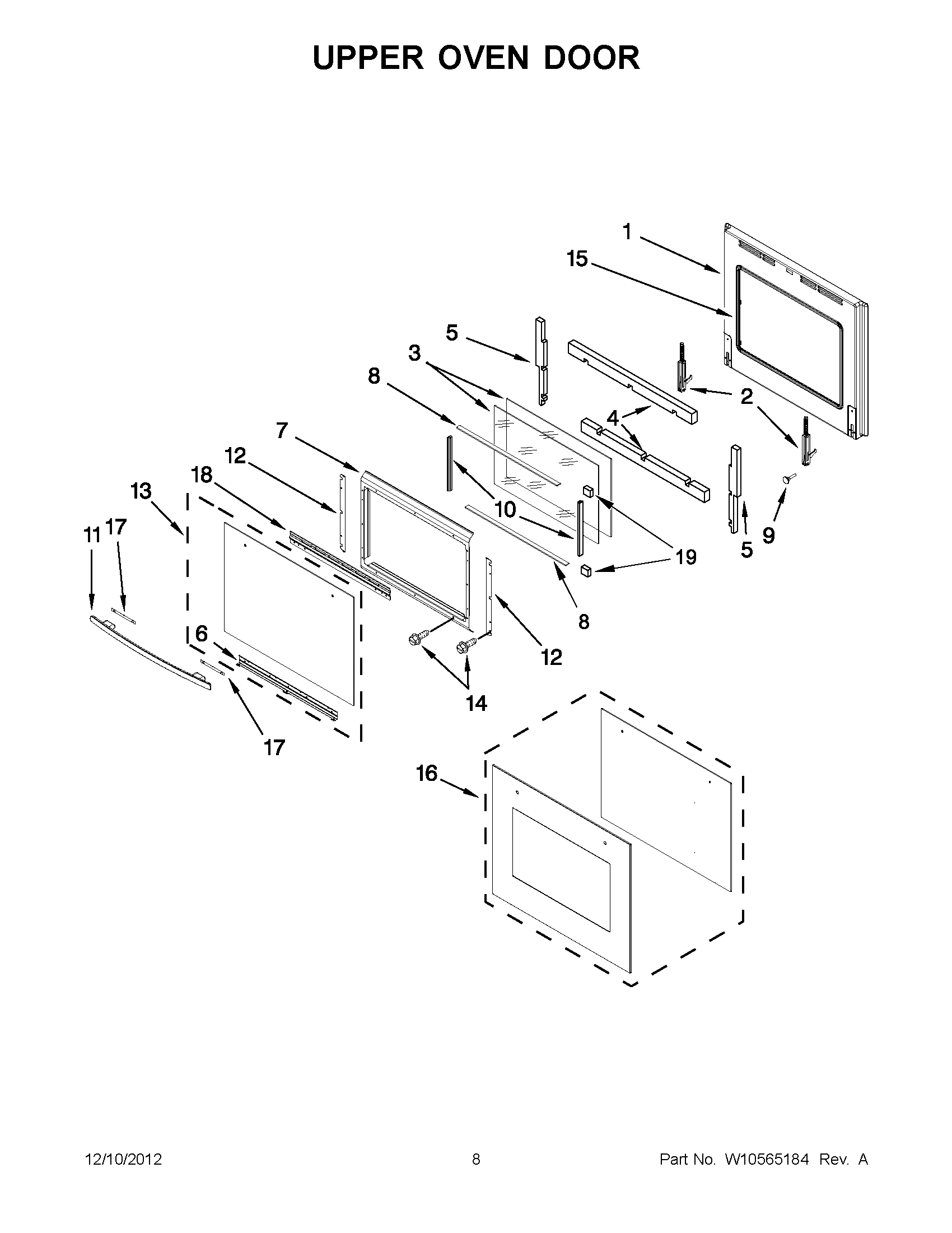

JJW2530WS01 04 – UPPER OVEN DOOR

JJW2530WS01 04 – UPPER OVEN DOOR

Written by

in

JJW2530WS01 04 – UPPER OVEN DOOR

Products

PositionProduct
1MAY W10187019
2HINGE, DOOR (2) (STAINLESS)
3MAY W10176100
4MAY W10273676
5MAY W10273591
6BRACKET, DOOR CLIP
7MAY W10176103
8INSULATION, OVEN DOOR
9MAY W10176233
10MAY W10277621
11MAY W10186756
12MAY W10186882
13MAY W10186890
14MAY 7101P426- 60
15MAY W10213803
16KIT, GLASS ASSY. (STAINLESS)
17MAY W10213722
18MAY W10176126
19MAY W10296505
