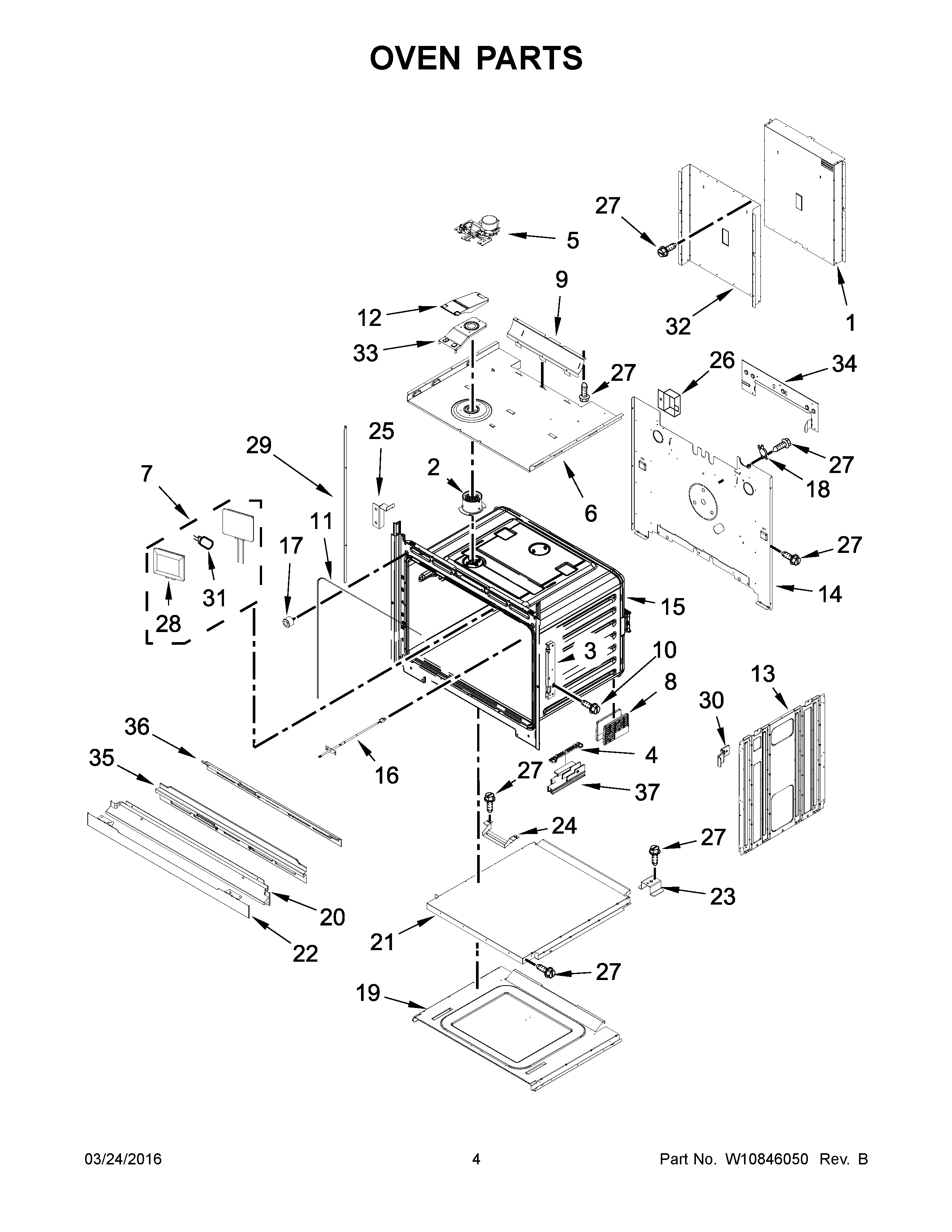

JJW2727DS01 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY W10520716
NI	LINER (NOT A SERVICEABLE PART)
1	DUCT, CHASSIS BACK
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	MAY W10314880
6	MAY W10813744
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	MAY W10641572
10	MAY W10254050
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10813734
16	MAY W10622170
17	BUMPER & SCREW
18	THERMOSTAT
19	MAY W10282901
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	MAY W10327378
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BRACKET, SIDE COVER (LEFT)
25A	BRACKET, SIDE COVER (RIGHT)
26	MAY 8285593
27	MAY 7101P426- 60
28	LENS, LIGHT
29	COVER, SIDE TRIM (LEFT)
29A	COVER, SIDE TRIM (RIGHT)
30	MAY W10347649
31	BULB, LIGHT
32	DUCT, CHASSIS BACK (LOWER)
33	BASE, VENT EXHAUST
34	MAY W10588736
35	MAY W10283041
36	MAY W10283037
37	MAY W10618103
37A	MAY W10618104
