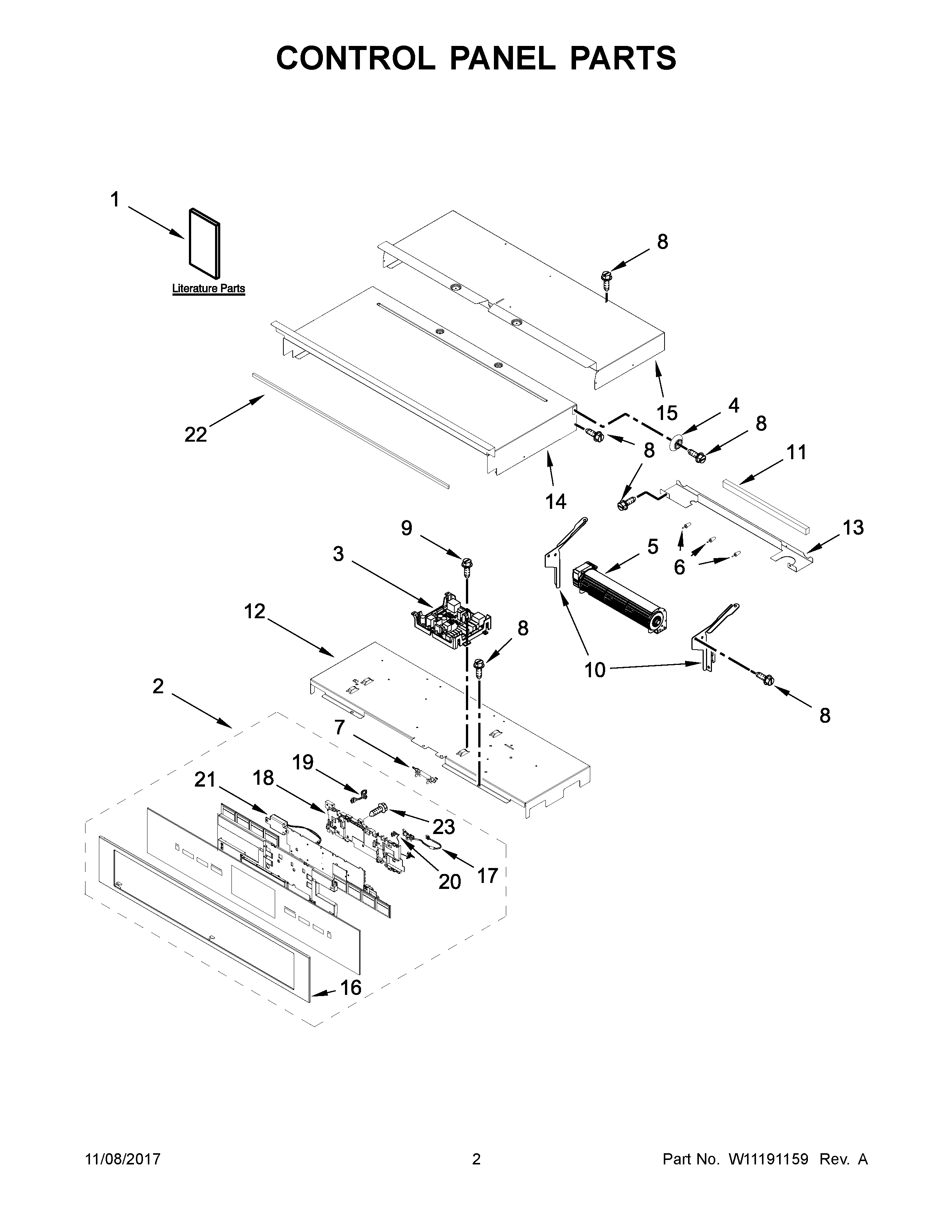

JJW2727DS02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIHARNESS, SIGNAL
NIBRACKET, FUSE
NIMAY W10679413
NISTRAP, LEAD GROUND
NIMAY W10775068
NIBRACKET, HARNESS
NIHARNESS, EOL
NICLAMP, CONDUIT
NIMAY W11033087
NILINER (NOT A SERVICEABLE PART)
NIMAY 4450800
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH
2MAY W10876354
3CONTROL (WITH POWER SUPPLY)
4SPACER, LATERAL
5BLOWER
6MAY W10351295
7FUSE, THERMAL
8MAY 7101P426- 60
9MAY 7101P434-60
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12TRAY, ELECTRONIC
13CHASSIS, BACK DIVIDER
14CHASSIS, COVER TOP FRONT 27"
15CHASSIS, COVER TOP BACK 27"
16SKIN, CONTROL PANEL (STAINLESS)
17JUMPER HARNESS, POWER SUPPLY
18HOUSING
19HARNESS, KEYPAD (LEFT TO CENTER)
20HARNESS, KEYPAD (RIGHT TO CENTER)
21ASSEMBLY, SPEAKER
22GASKET, RUBBER
23MAY W10489172
