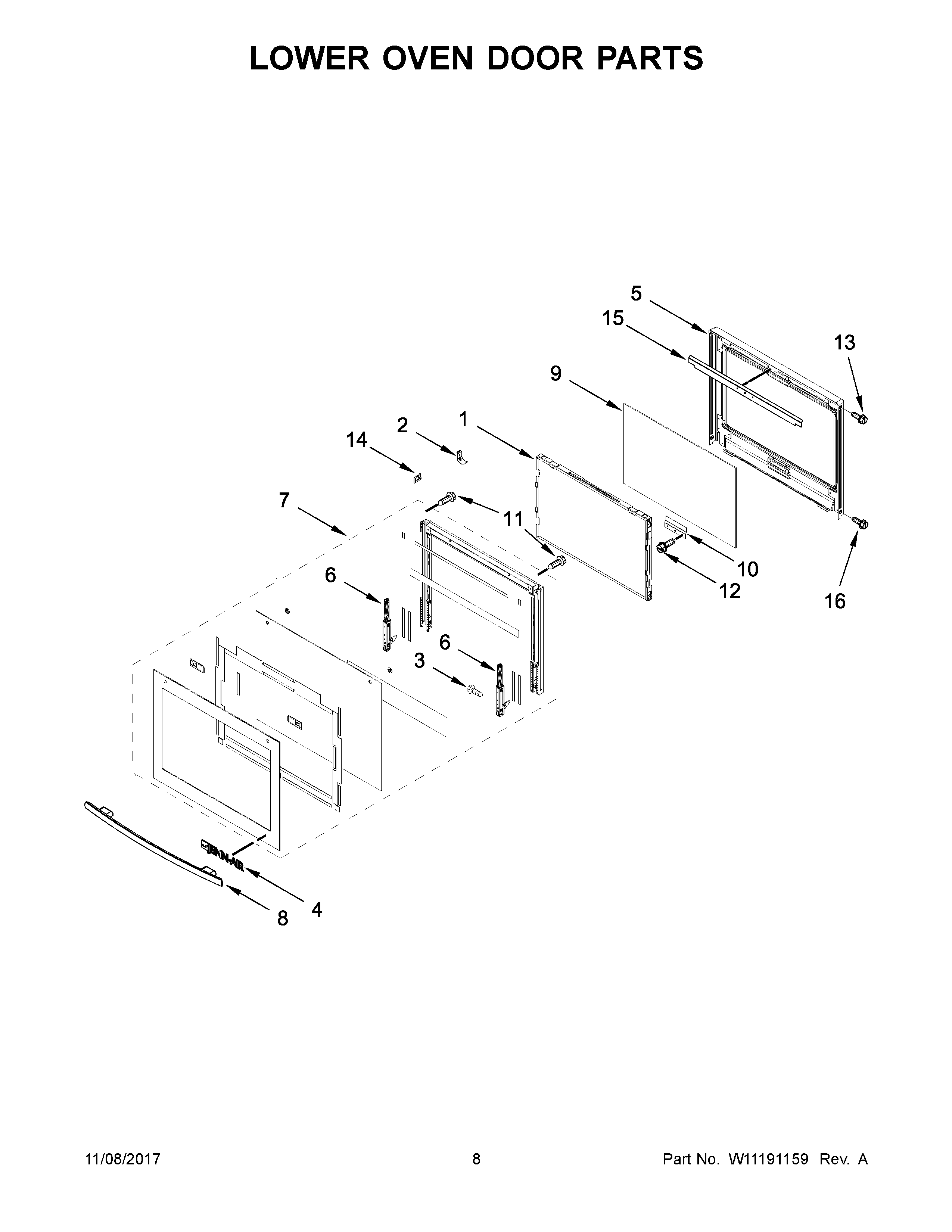

JJW2727DS02 05 – LOWER OVEN DOOR PARTS

JJW2727DS02 05 – LOWER OVEN DOOR PARTS

Written by

in

JJW2727DS02 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	MAY W10347597
2	MAY W10284285
3	SCREW
4	ASSEMBLY, BADGE (STAINLESS)
5	ASSEMBLY, LINER WELDED
6	MAY W10639071
7	ASSEMBLY, DOOR (STAINLESS)
8	ASSEMBLY, HANDLE (STAINLESS)
9	MAY W10678525
10	MAY W10284297
11	SCREW
12	MAY 7101P426- 60
13	SCREW WITH WASHER
14	MAY W10653954
15	SHIELD, DOOR LINER
16	MAY 7101P635-60
