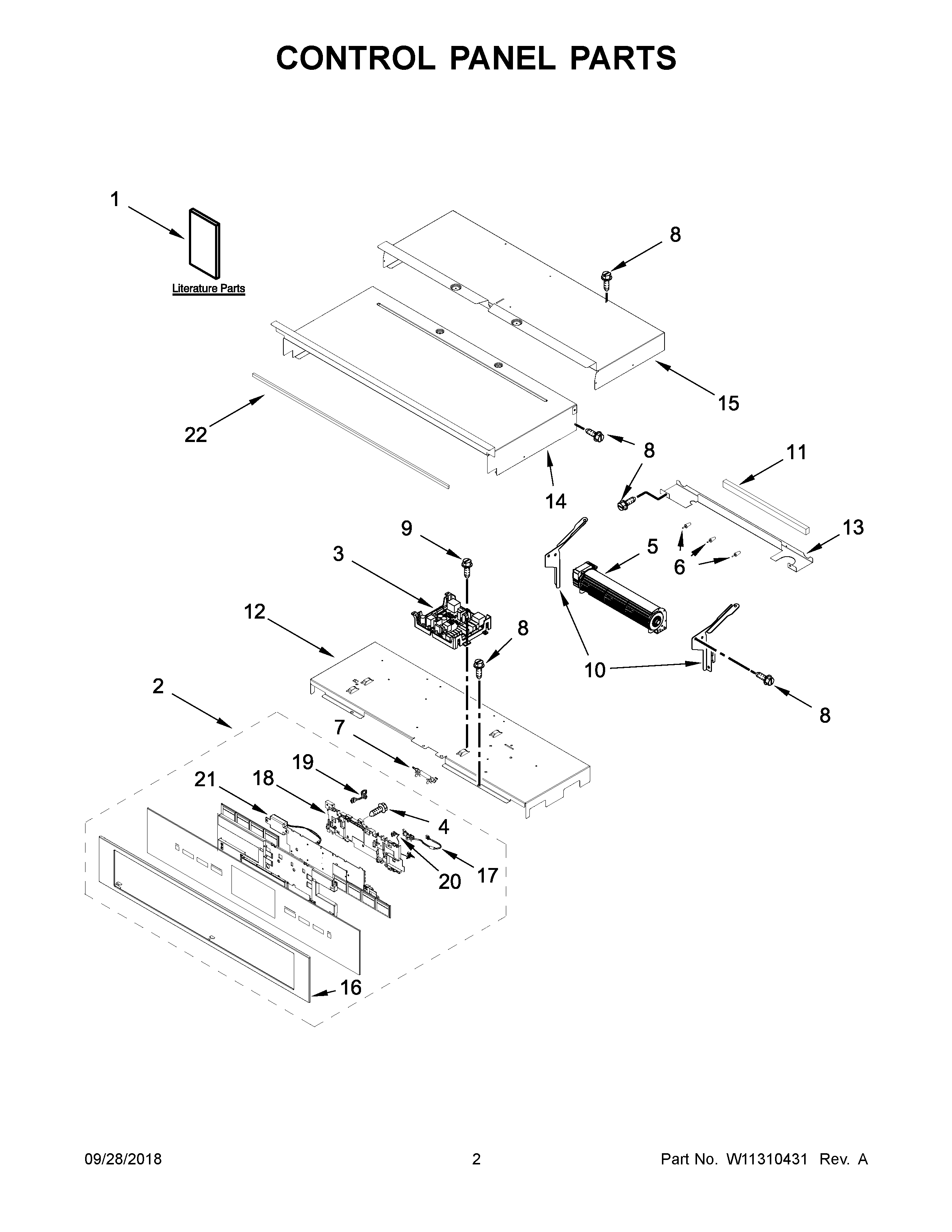

JJW2727DS03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, MAIN
NI	HARNESS, SIGNAL
NI	HARNESS, DOOR LATCH
NI	STRAP, LEAD GROUND
NI	BRACKET, HARNESS
NI	HARNESS, EOL
NI	CLAMP, CONDUIT
NI	JUMPER TOD
NI	MAY 4450800
NI	LINER (NOT A SERVICEABLE PART)
1B	SHEET, TECH
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
2	ASSEMBLY, CONTROL PANEL (STAINLESS)
3	CONTROL (WITH POWER SUPPLY)
4	MAY W10489172
5	BLOWER
6	MAY W10351295
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	TRAY, ELECTRONIC
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 27"
15	CHASSIS, COVER TOP BACK 27"
16	SKIN, CONTROL PANEL (STAINLESS)
17	JUMPER HARNESS, POWER SUPPLY
18	HOUSING
19	HARNESS, KEYPAD (LEFT TO CENTER)
20	HARNESS, KEYPAD (RIGHT TO CENTER)
21	ASSEMBLY, SPEAKER
22	GASKET, RUBBER
