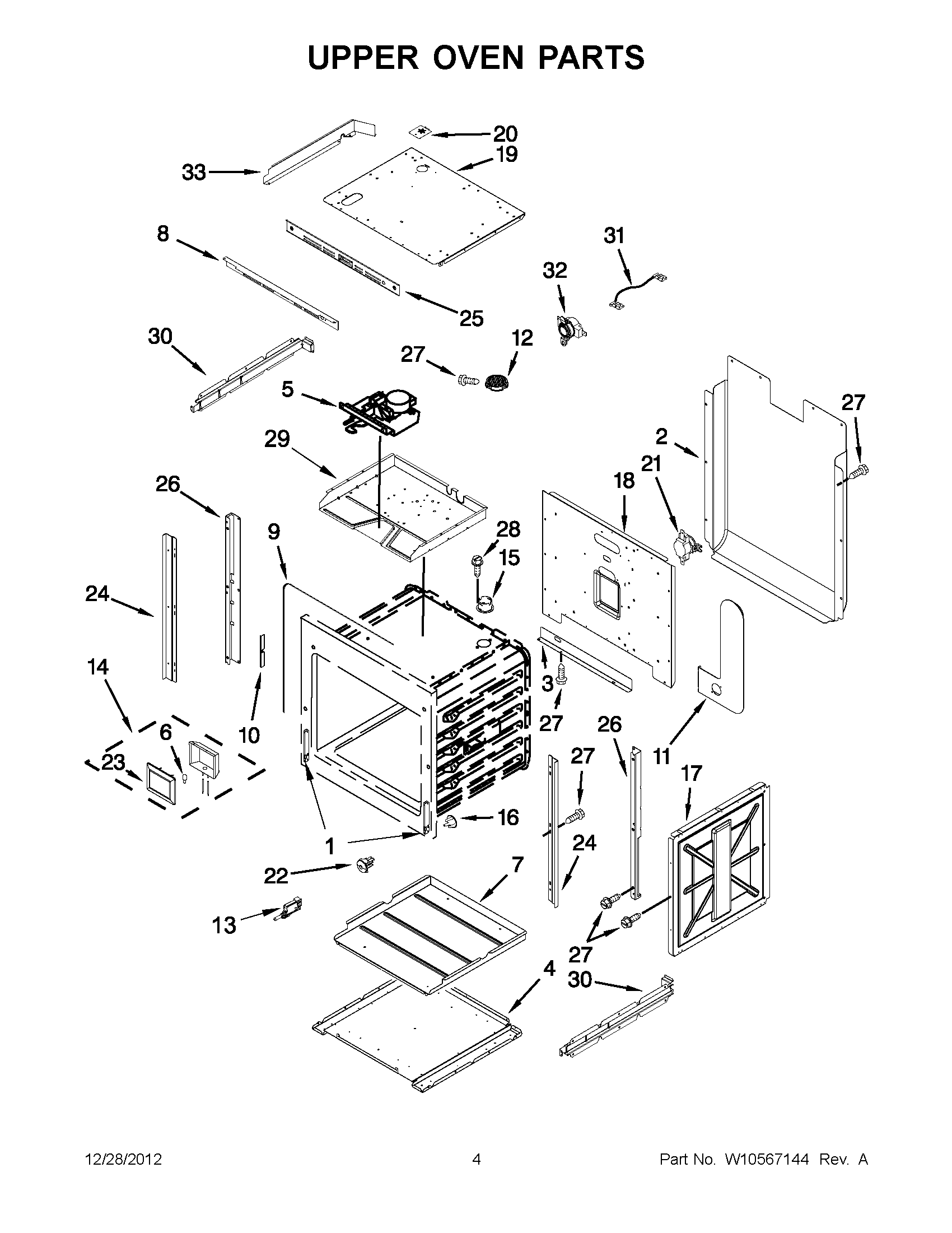

JJW2727WS02 02 – UPPER OVEN PARTS
Written by
in
JJW2727WS02 02 – UPPER OVEN PARTS
Products
Position
Product
NI
MAY 7002P276-60
NI
MAY W10186990
NI
MAY W10213747
1
MAY W10175993
2
MAY 2624F051-51
3
MAY W10254160
4
MAY W10280326
5
LATCH, DOOR
6
BULB, OVEN
7
MAY 3401F079-45
8
TRIM, CONTROL PANEL (TOP)
9
MAY W10213819
10
MAY W10176218
11
MAY 4006W218-45
12
SCREEN, SMOKE ELM.
13
MAY W10286173
14
MAY W10175989
15
MAY 8026P066-60
16
MAY 7718P021-60
17
MAY W10175995
18
MAY W10213725
19
MAY W10175999
20
MAY W10213792
21
SWITCH, HI LIMIT
22
MAY W10213745
23
MAY W10187003
24
MAY W10277587
25
MAY W10176015
26
MAY W10277423
26
MAY W10277424
27
MAY 7101P426- 60
28
MAY 7101P434-60
29
MAY W10186749
30
MAY 3807F669-51
31
JUMPER, THERMAL SECONDARY
32
SWITCH, OVEN LIMIT
33
MAY W10187018
←
