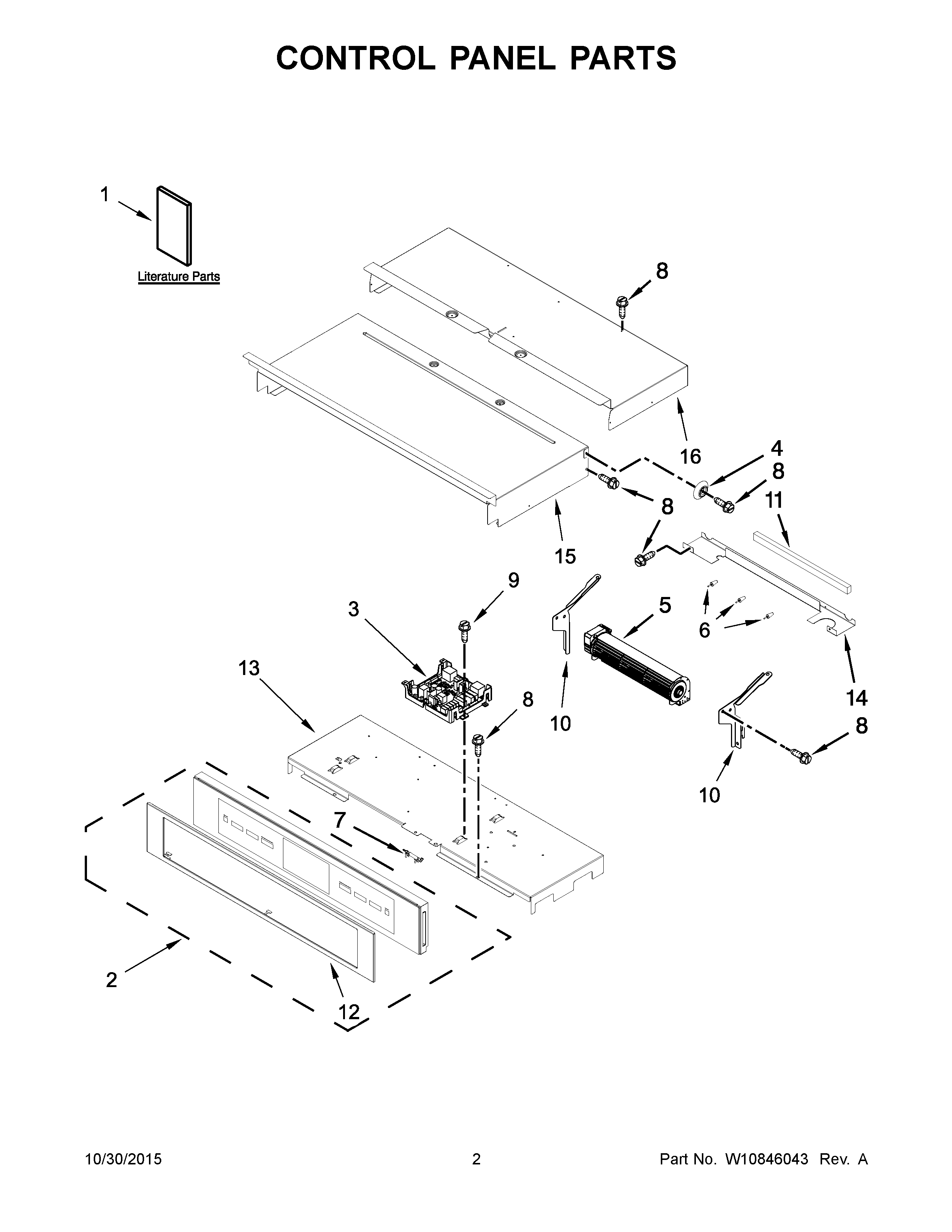

JJW2730DS01 02 – CONTROL PANEL PARTS

JJW2730DS01 02 – CONTROL PANEL PARTS

Written by

in

JJW2730DS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIHARNESS, DOOR LATCH
NIMAY W10679413
NIBRACKET, HARNESS
NIHARNESS, EOL
NICLAMP, CONDUIT
NISTRAP, LEAD GROUND
NIBRACKET, FUSE
NIHARNESS, SIGNAL
NILINER (NOT A SERVICEABLE PART)
NIMAY 4450800
NIMAY W10667015
1GUIDE, USE & CARE
1BSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
2MAY W10713606
3CONTROL (WITH POWER SUPPLY)
4SPACER, LATERAL
5BLOWER
6MAY W10351295
7FUSE, THERMAL
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12SKIN, CONTROL PANEL (STAINLESS)
13MAY W10694467
14CHASSIS, BACK DIVIDER
15CHASSIS, COVER TOP FRONT 30
16CHASSIS, COVER TOP BACK 30"
