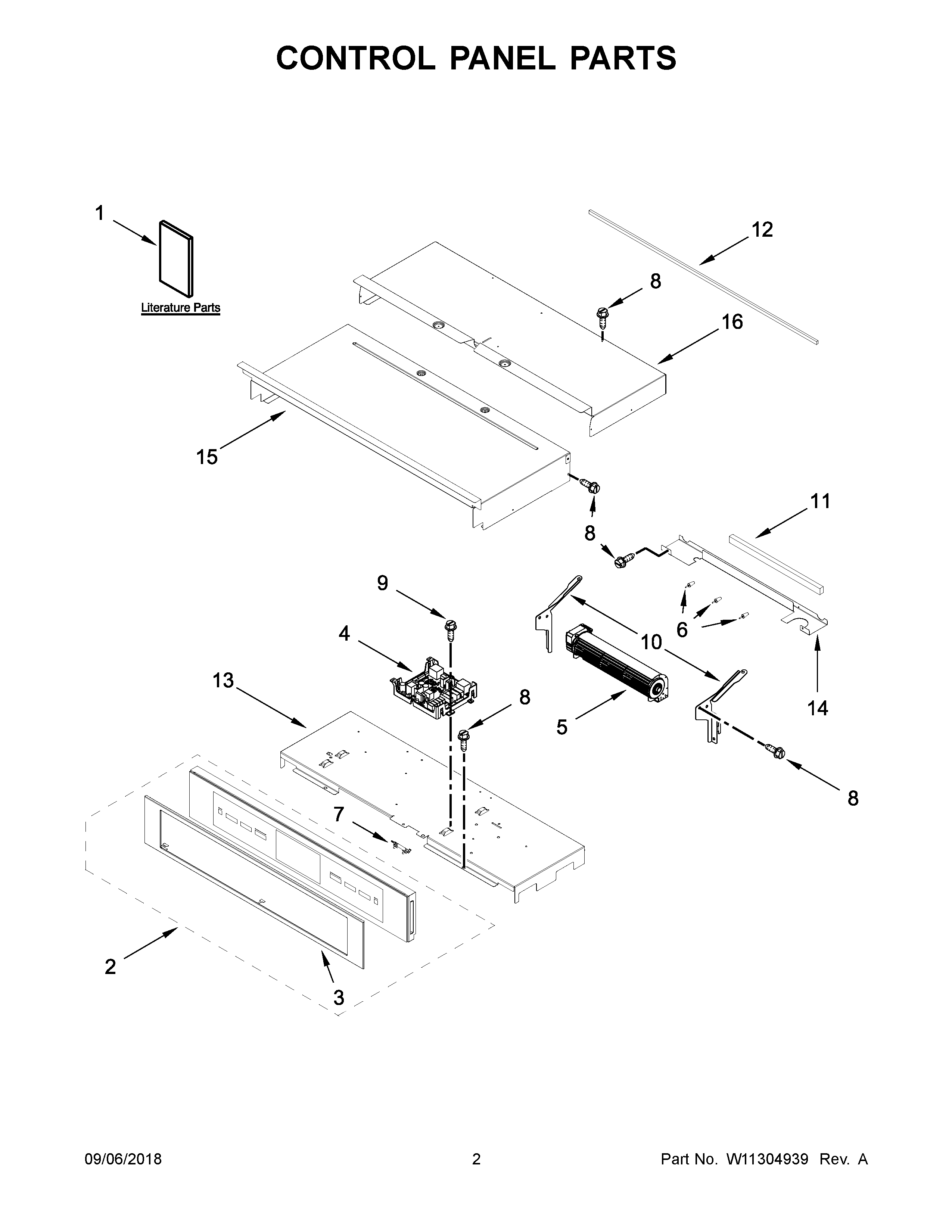

JJW2730DS03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, MAIN
NI	HARNESS, SIGNAL
NI	JUMPER TOD
NI	HARNESS, DOOR LATCH
NI	STRAP, LEAD GROUND
NI	BRACKET, HARNESS
NI	HARNESS, EOL
NI	CLAMP, CONDUIT
NI	MAY 4450800
NI	LINER (NOT A SERVICEABLE PART)
1	GUIDE, USE & CARE
1B	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
2	ASSEMBLY, CONTROL PANEL (STAINLESS)
3	SKIN, CONTROL PANEL (STAINLESS)
4	CONTROL (WITH POWER SUPPLY)
5	BLOWER
6	MAY W10351295
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	GASKET, RUBBER
13	TRAY, ELECTRONIC
14	CHASSIS, BACK DIVIDER
15	CHASSIS, COVER TOP FRONT 30
16	CHASSIS, COVER TOP BACK 30"
