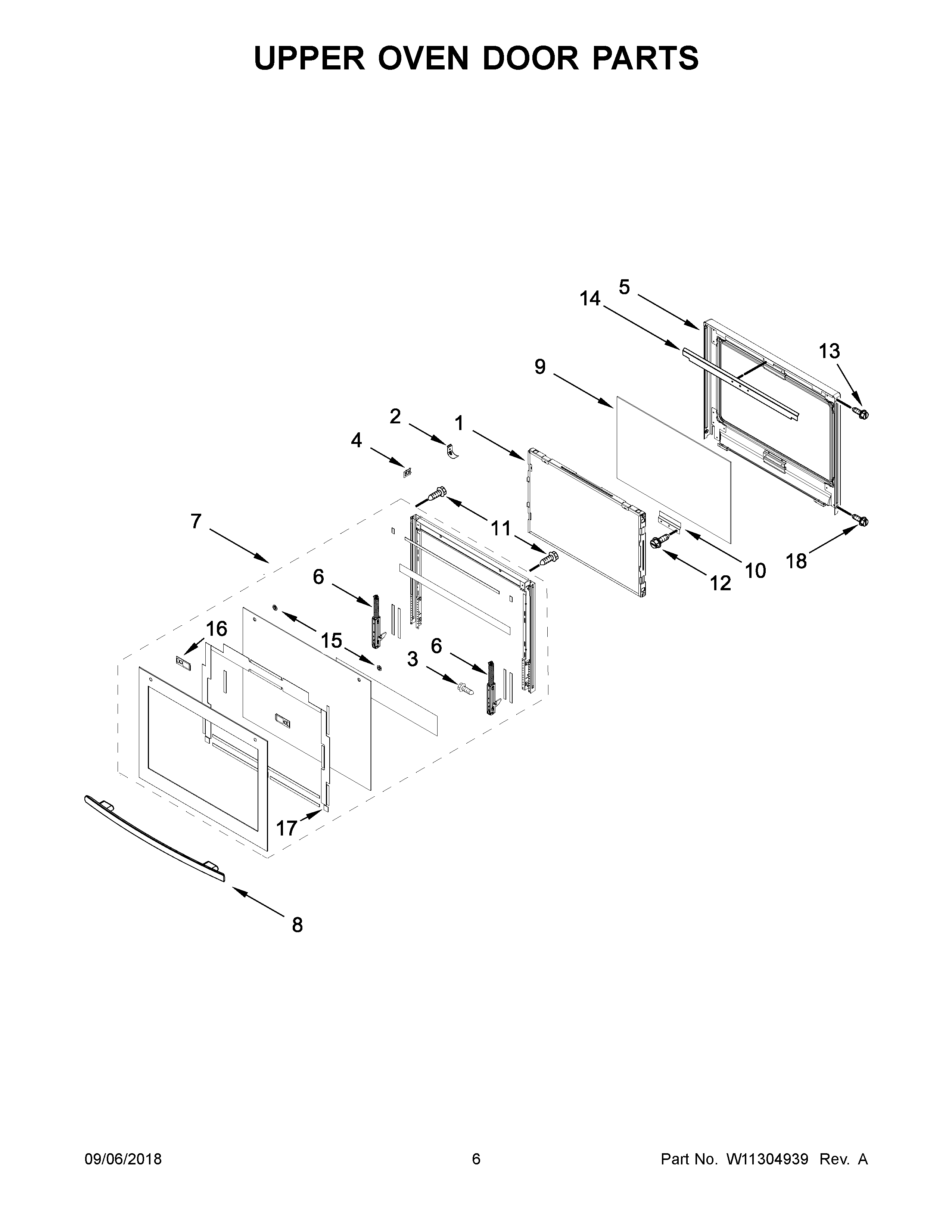

JJW2730DS03 04 – UPPER OVEN DOOR PARTS

Written by

Products

Position	Product
1	MAY W10347596
2	MAY W10284285
3	SCREW
4	MAY W10653954
5	MAY W10709147
6	MAY W10639069
7	ASSEMBLY, DOOR (STAINLESS)
8	ASSEMBLY, DOOR HANDLE (STAINLESS)
9	GLASS, INNER
10	MAY W10284297
11	SCREW
12	MAY 7101P426- 60
13	SCREW WITH WASHER
14	SHIELD, DOOR LINER
15	WASHER, DOOR
16	SPACER, HANDLE
17	SPACER, VENT
18	MAY 7101P635-60
