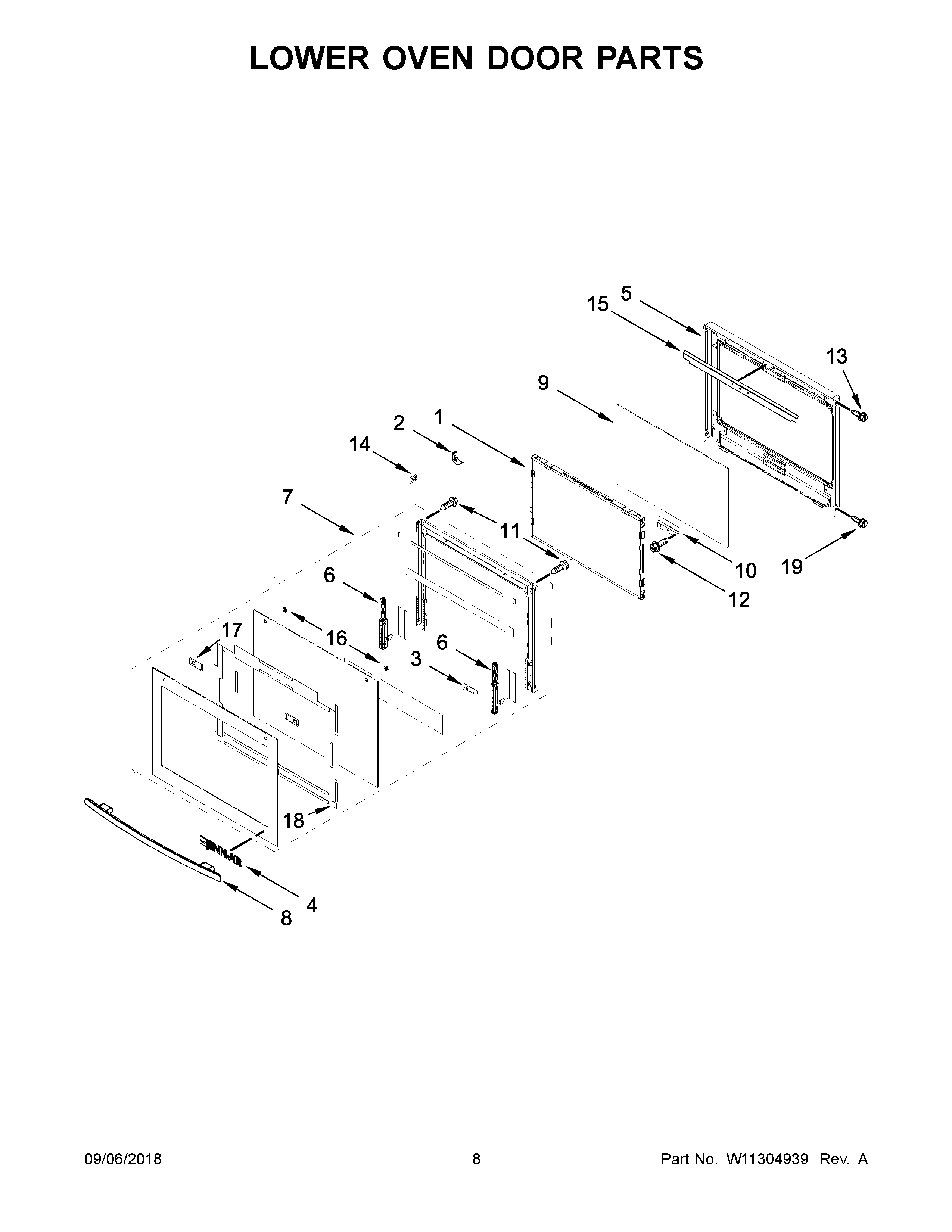

JJW2730DS03 05 – LOWER OVEN DOOR PARTS

JJW2730DS03 05 – LOWER OVEN DOOR PARTS

Written by

in

JJW2730DS03 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347596
2MAY W10284285
3SCREW
4ASSEMBLY, BADGE (STAINLESS)
5MAY W10709147
6MAY W10639069
7ASSEMBLY, DOOR (STAINLESS)
8ASSEMBLY, DOOR HANDLE (STAINLESS)
9GLASS, INNER
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13SCREW WITH WASHER
14MAY W10653954
15SHIELD, DOOR LINER
16WASHER, DOOR
17SPACER, HANDLE
18SPACER, VENT
19MAY 7101P635-60
