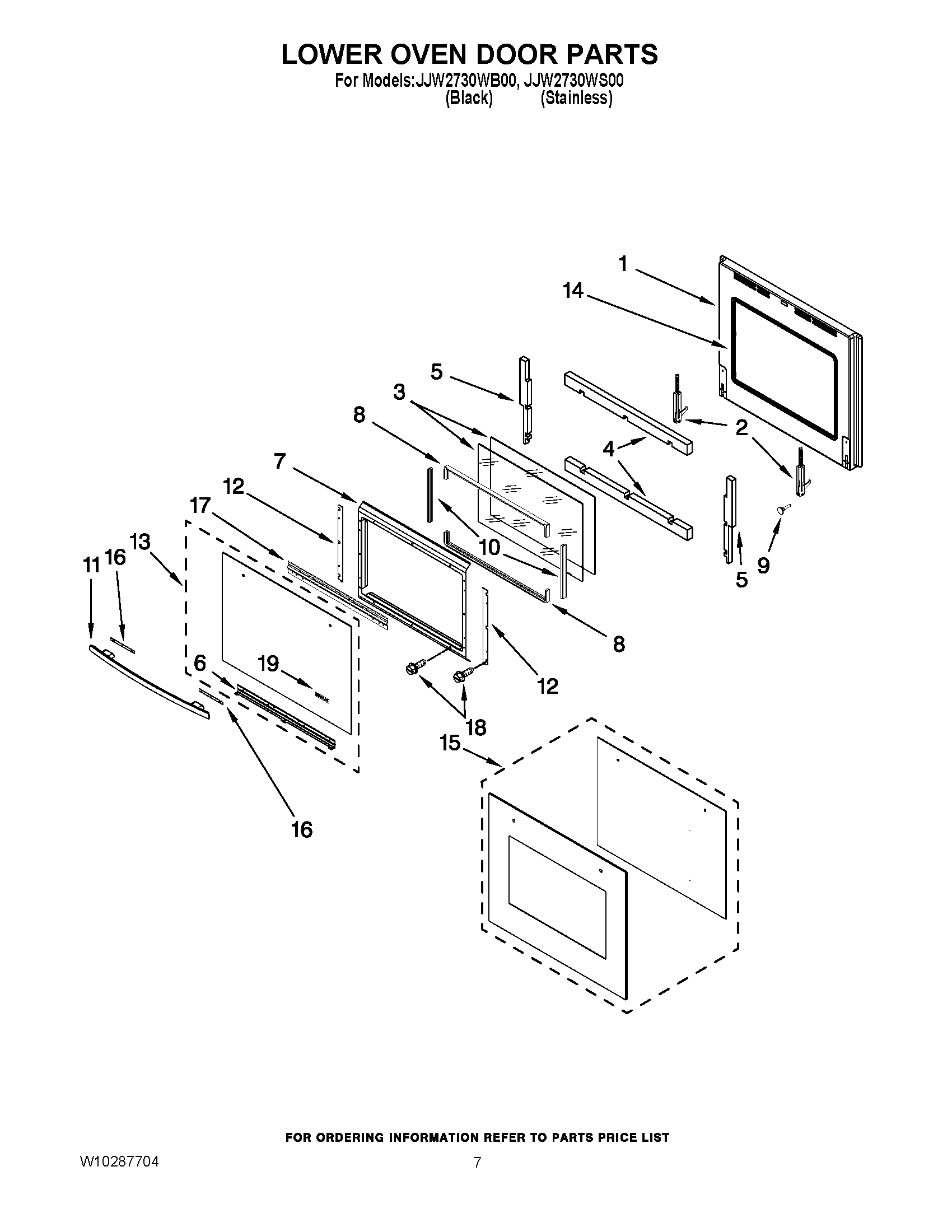

JJW2730WS00 04 – LOWER OVEN DOOR PARTS

JJW2730WS00 04 – LOWER OVEN DOOR PARTS

Written by

in

JJW2730WS00 04 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1MAY W10187019
2HINGE, DOOR (2) (STAINLESS)
2HINGE, DOOR (2) (BLK/WHT/OILD BRNZ)
3MAY W10176100
4MAY W10273676
5MAY W10273591
6BRACKET, DOOR CLIP
7MAY W10176103
8MAY W10277623
9MAY W10176233
10MAY W10277621
11MAY W10186755
11MAY W10186756
12MAY W10186882
13GLASS OUTER DOOR ASSY. (BLACK/OILED BRONZE)
13MAY W10186890
14MAY W10213803
15KIT, GLASS ASSY. (STAINLESS)
16MAY W10213722
17MAY W10176126
18MAY 7101P426- 60
19ASSEMBLY, BADGE (STAINLESS)
19ASSEMBLY, BADGE (BLACK)
