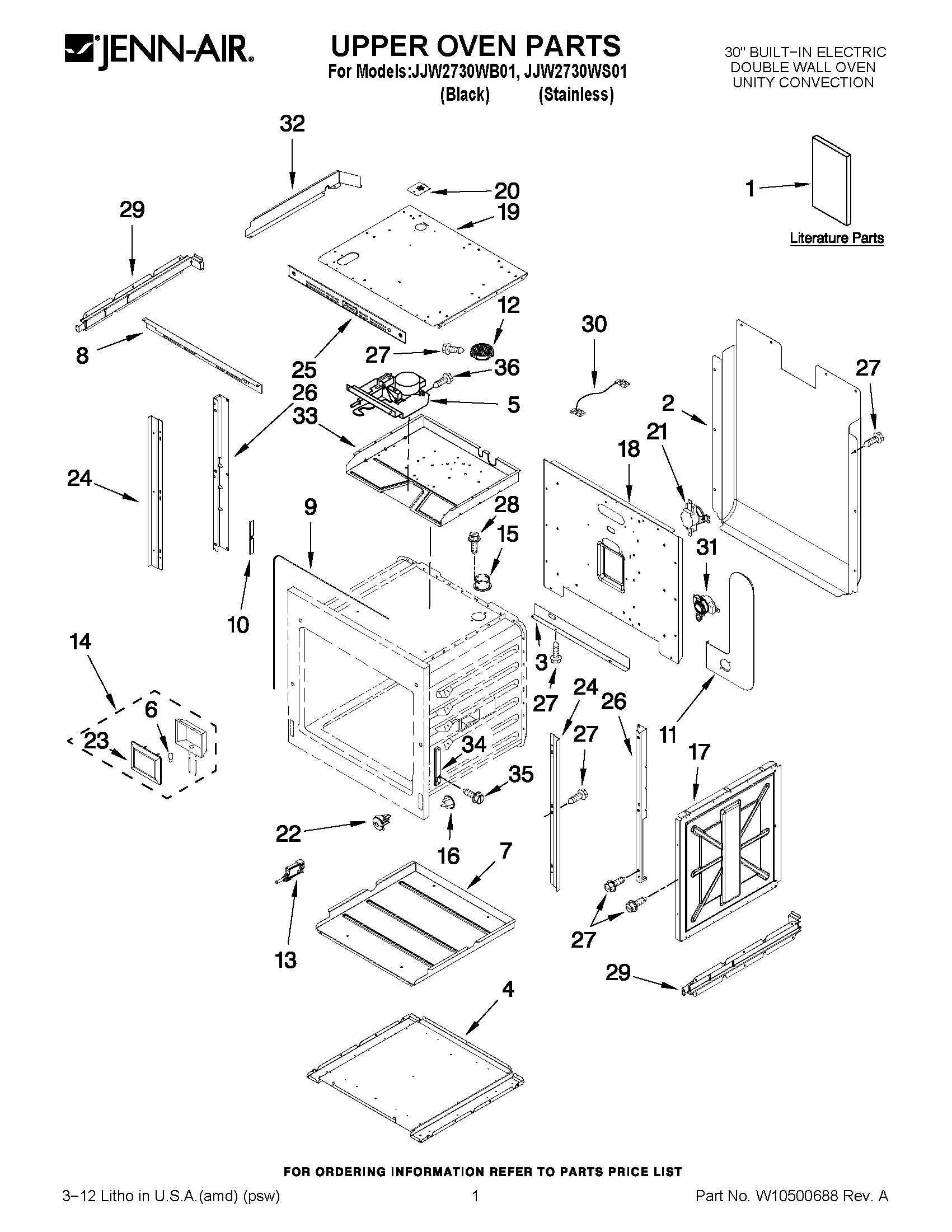

JJW2730WS01 01 – UPPER OVEN PARTS
Written by
in
JJW2730WS01 01 – UPPER OVEN PARTS
Products
Position
Product
NI
MAY W10186989
NI
MAY W10213750
1
TIPS, SAFE COOKING (ENGLISH)
1
USE & CARE GUIDE
1
MAY W10221386
1
MAY W10213742
1
MAY W10213733
1
MAY W10217587
1
TIPS, SAFE COOKING (FRENCH)
2
MAY 2624F051-51
3
MAY W10254160
4
MAY W10280327
5
LATCH, DOOR
6
BULB, OVEN
7
MAY 3401F079-45
8
TRIM, CTRL PNL TOP
9
MAY W10213818
10
MAY W10176218
11
MAY 4006W217-45
12
SCREEN, SMOKE ELM.
13
MAY W10286173
14
MAY W10175989
15
MAY 8026P065-60
16
MAY 7718P033-60
17
MAY W10175995
18
MAY W10213724
19
MAY W10175998
20
MAY W10213792
21
SWITCH, HI LIMIT
22
MAY W10213745
23
MAY W10187003
24
MAY W10277587
25
MAY W10176014
26
MAY W10277424
26
MAY W10277423
27
MAY 7101P426- 60
28
MAY 7101P434-60
29
MAY 3807F669-51
30
JUMPER, THERMAL SECONDARY
31
SWITCH, OVEN LIMIT
32
MAY W10187018
33
MAY W10176749
34
MAY W10175993
35
MAY W10254050
36
MAY W10236043
←
