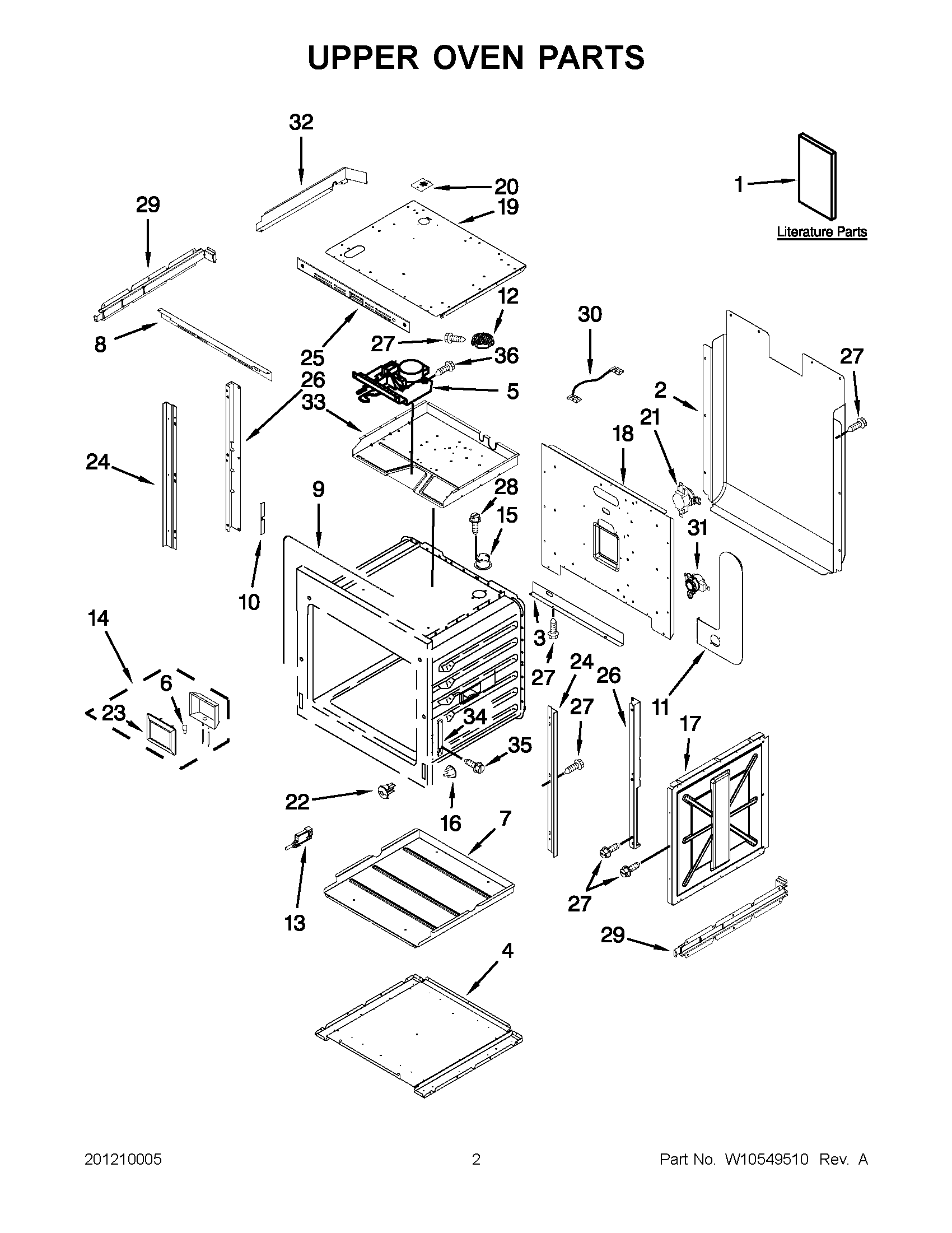

JJW2730WS02 01 – UPPER OVEN PARTS

Products

Position	Product
NI	MAY W10186989
NI	MAY W10213750
NI	LINER (NOT A SERVICEABLE PART)
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10217587
1	USE & CARE GUIDE
1	MAY W10221386
1	MAY W10213742
1	MAY W10213733
1	TIPS, SAFE COOKING (FRENCH)
2	MAY 2624F051-51
3	MAY W10254160
4	MAY W10280327
5	LATCH, DOOR
6	BULB, OVEN
7	MAY 3401F079-45
8	TRIM, CTRL PNL TOP
9	MAY W10213818
10	MAY W10176218
11	MAY 4006W217-45
12	SCREEN, SMOKE ELM.
13	MAY W10286173
14	MAY W10175989
15	MAY 8026P065-60
16	MAY 7718P033-60
17	MAY W10175995
18	MAY W10213724
19	MAY W10175998
20	MAY W10213792
21	SWITCH, HI LIMIT
22	MAY W10213745
23	MAY W10187003
24	MAY W10277587
25	MAY W10176014
26	MAY W10277423
26	MAY W10277424
27	MAY 7101P426- 60
28	MAY 7101P434-60
29	MAY 3807F669-51
30	JUMPER, THERMAL SECONDARY
31	SWITCH, OVEN LIMIT
32	MAY W10187018
33	MAY W10186749
34	MAY W10175993
35	MAY W10254050
36	MAY W10236043
