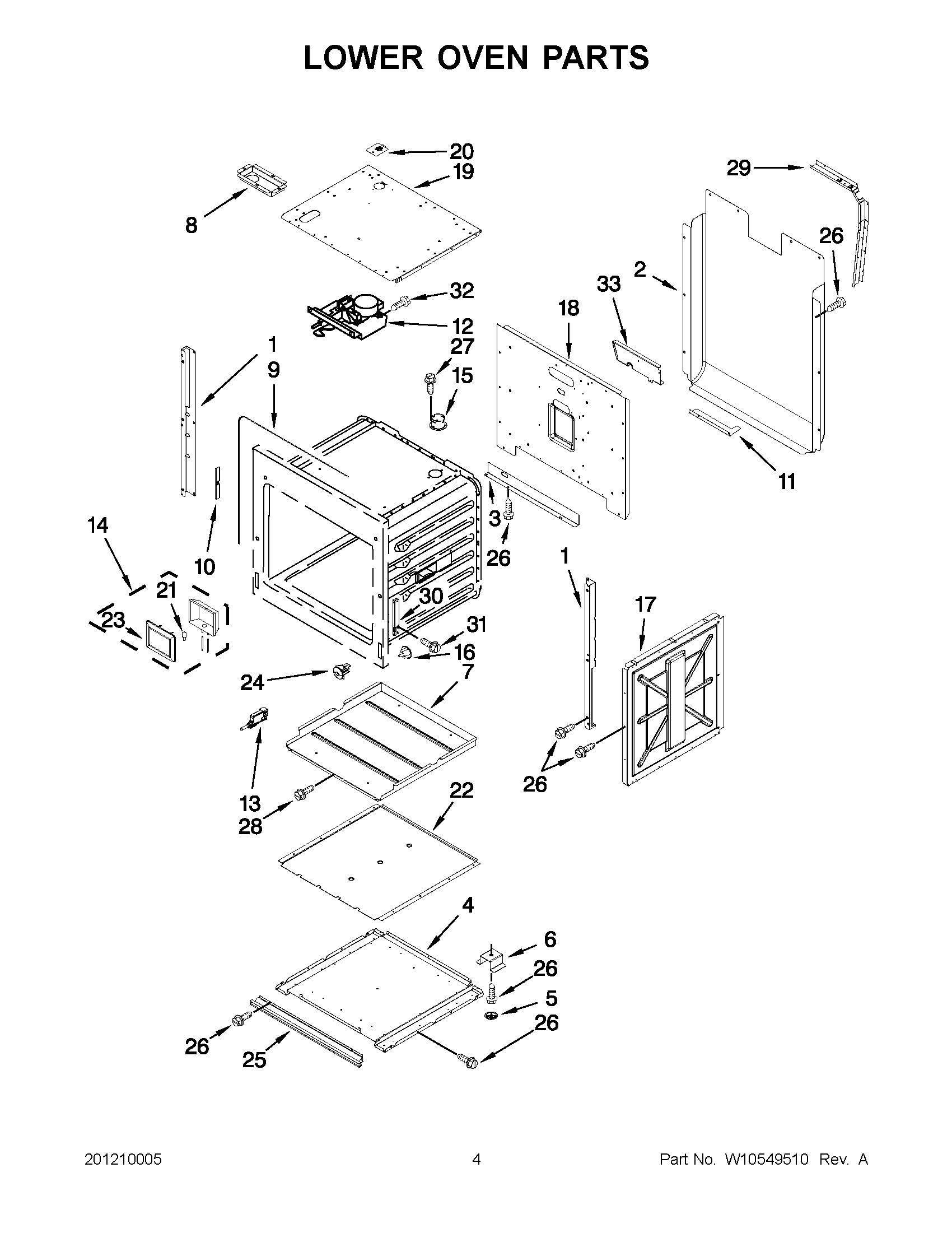

JJW2730WS02 02 – LOWER OVEN PARTS

Products

Position	Product
NI	MAY W10213750
NI	MAY W10186989
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10277424
1	MAY W10277423
2	MAY 2624F043-51
3	BAFFLE, REAR
4	MAY W10280327
5	MAY 8038P035-60
6	MAY W10213759
7	MAY 3401F079-45
8	MAY 4006F236-45
9	MAY W10213818
10	MAY W10176218
11	MAY W10186984
12	LATCH, DOOR
13	MAY W10286173
14	MAY W10175989
15	MAY 8026P065-60
16	MAY 7718P033-60
17	MAY W10175995
18	MAY W10255436
19	MAY W10176000
20	MAY 4005F721-45
21	BULB, OVEN
22	CHANNEL, BTM AIR BAKE ELEMENT
23	MAY W10187003
24	MAY W10213745
25	MAY W10176036
25	TRIM, BOTTOM VENT (BLACK/OILED BRONZE)
26	MAY 7101P426- 60
27	MAY 7101P434-60
28	MAY W10236129
29	MAY W10251054
30	MAY W10175993
31	MAY W10254050
32	MAY W10236043
33	MAY W10254027
