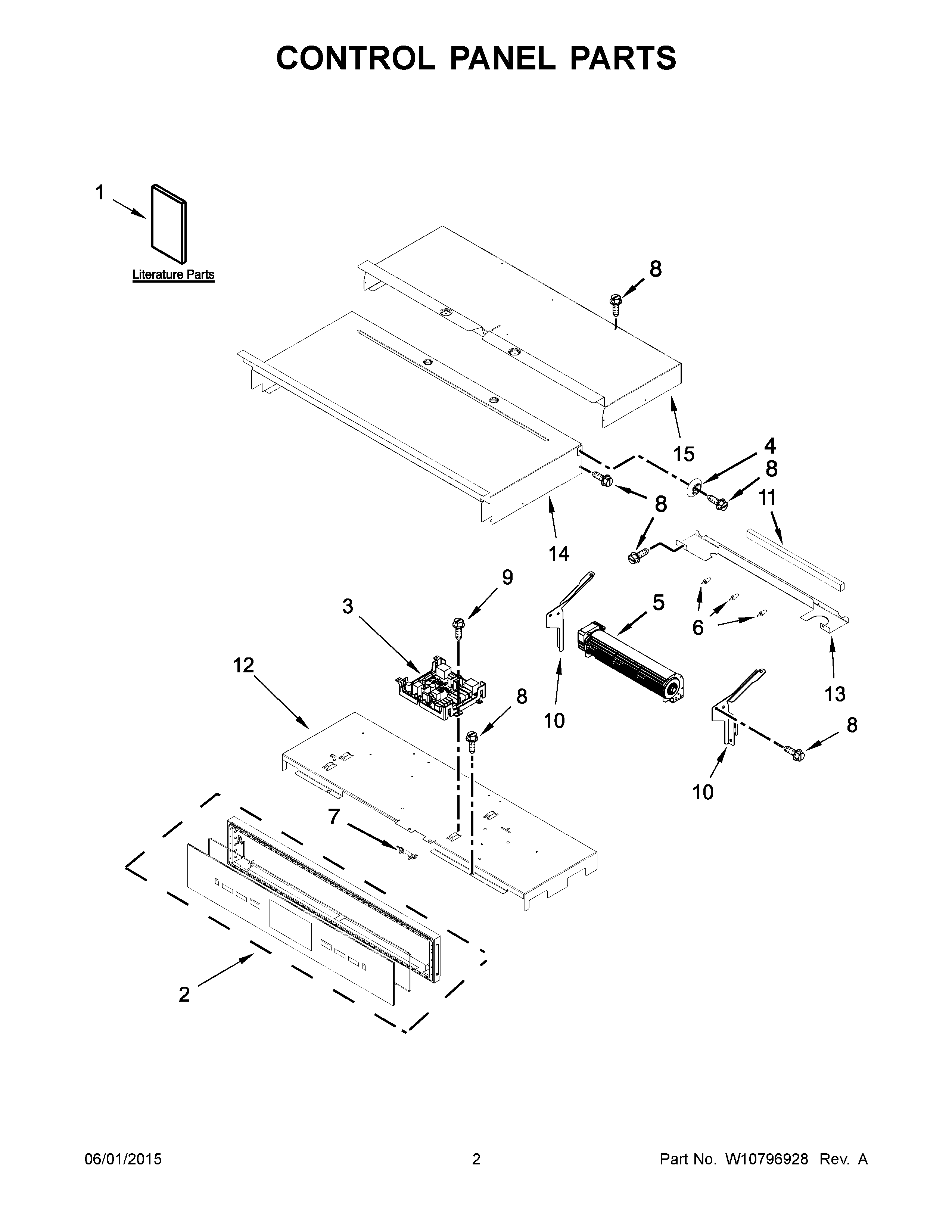

JJW2827DB00 02 – CONTROL PANEL PARTS

JJW2827DB00 02 – CONTROL PANEL PARTS

Written by

in

JJW2827DB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIHARNESS, DOOR LATCH
NIHARNESS, EOL
NIBRACKET, HARNESS
NISTRAP, LEAD GROUND
NIMAY W10522152
NILINER (NOT A SERVICEABLE PART)
NIMAY 4450800
NIMAY W10667013
NICLAMP, CONDUIT
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH
2MAY W10493252
3CONTROL (WITH POWER SUPPLY)
4SPACER, LATERAL
5BLOWER
6MAY W10351295
7FUSE, THERMAL
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12MAY W10694467
13CHASSIS, BACK DIVIDER
14CHASSIS, COVER TOP FRONT 27"
15CHASSIS, COVER TOP BACK 27"
