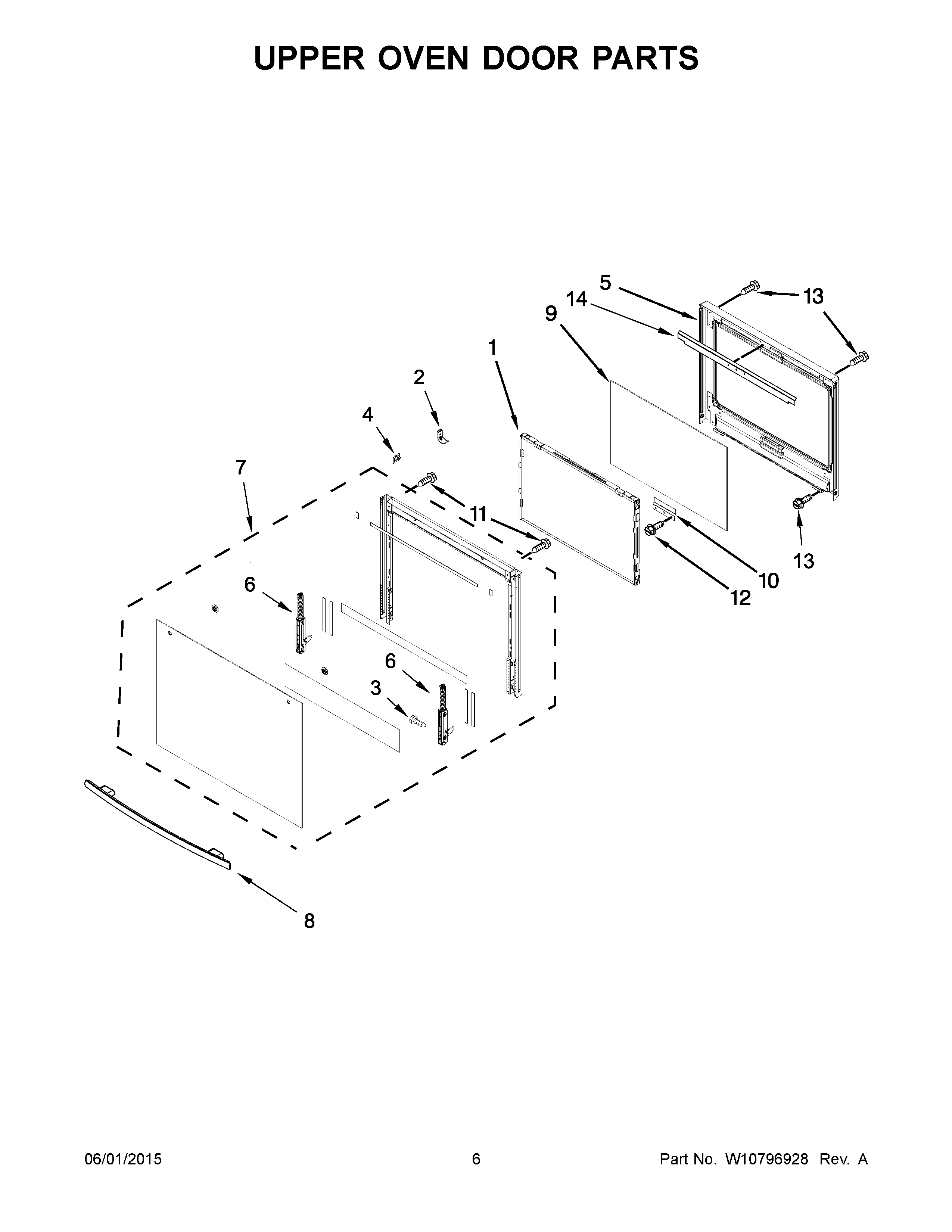

JJW2827DB00 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	MAY W10347597
2	MAY W10284285
3	SCREW
4	MAY W10653954
5	ASSEMBLY, LINER WELDED
6	MAY W10639070
7	ASSEMBLY, DOOR (BLACK)
8	ASSEMBLY, HANDLE (BLACK)
9	LINER, INNER GLASS
10	MAY W10284297
11	SCREW
12	MAY 7101P426- 60
13	Screw (2) (Black)
14	SHIELD, DOOR LINER
