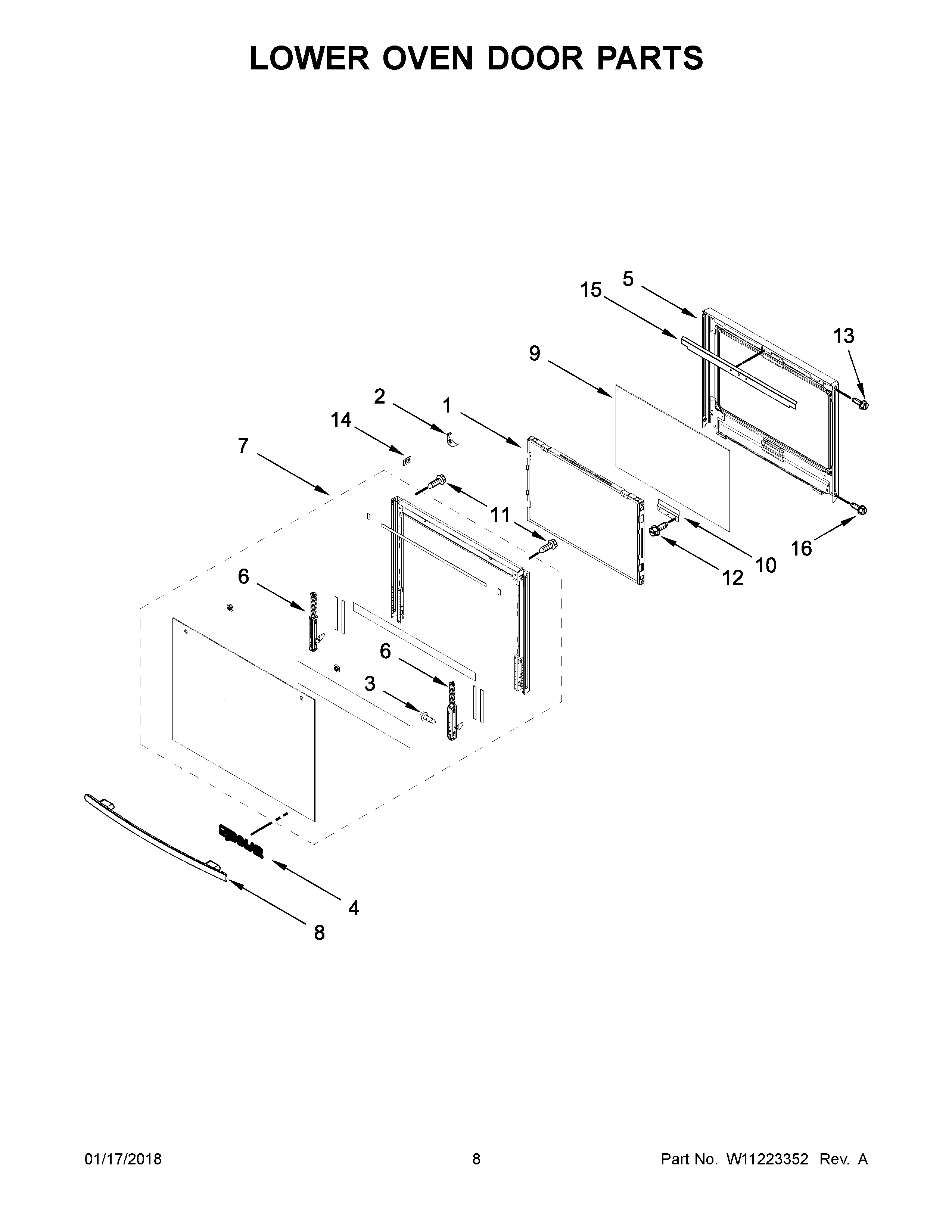

JJW2827DB02 05 – LOWER OVEN DOOR PARTS – Aparts

JJW2827DB02 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	MAY W10347597
2	MAY W10284285
3	SCREW
4	ASSEMBLY, BADGE (BLACK)
5	ASSEMBLY, LINER WELDED
6	MAY W10639070
7	ASSEMBLY, DOOR (BLACK)
8	ASSEMBLY, HANDLE (BLACK)
9	MAY W10678525
10	MAY W10284297
11	SCREW
12	MAY 7101P426- 60
13	SCREW WITH WASHER
14	MAY W10653954
15	SHIELD, DOOR LINER
16	MAY 7101P635-60
