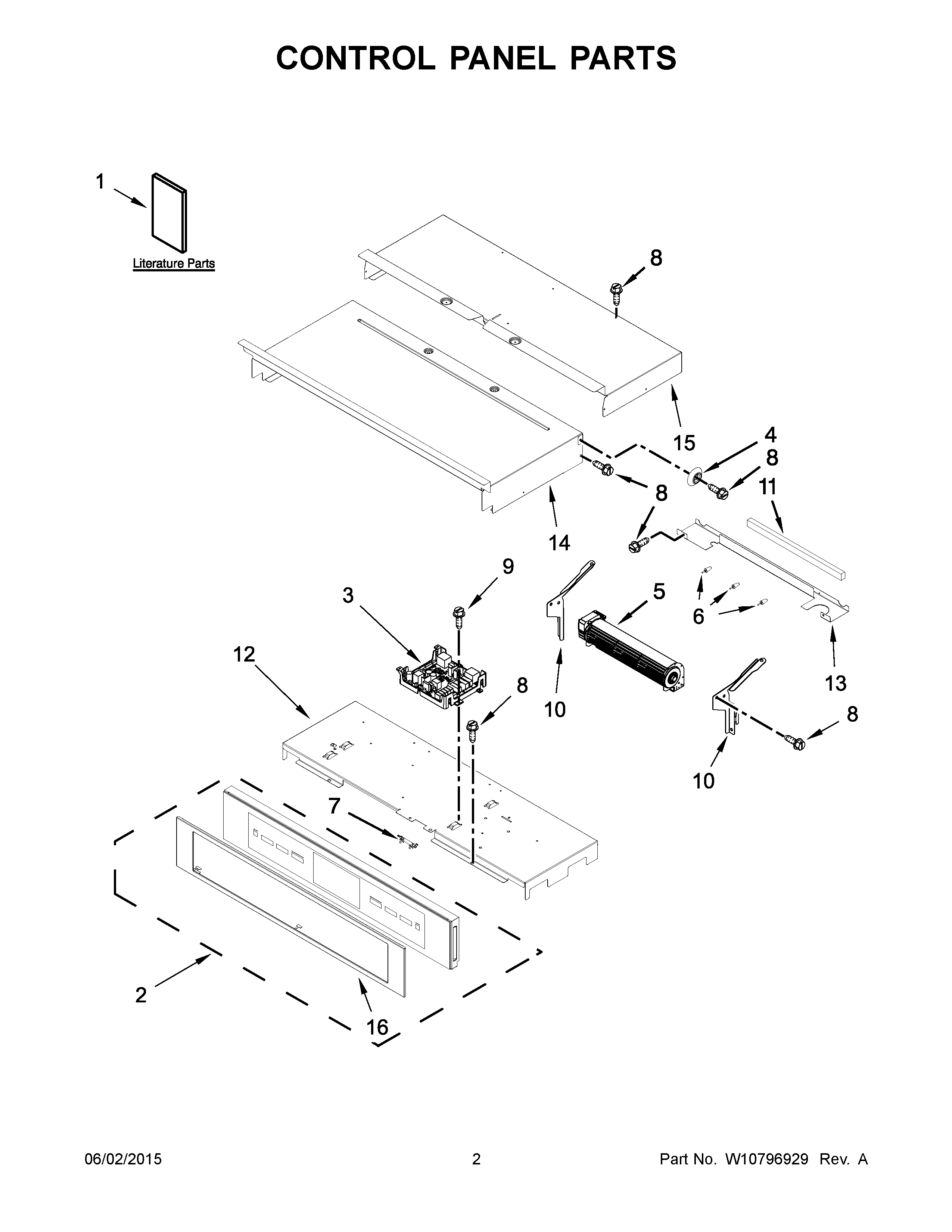

JJW2827DS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	MAY W10522152
NI	HARNESS, DOOR LATCH
NI	STRAP, LEAD GROUND
NI	MAY W10667013
NI	BRACKET, HARNESS
NI	HARNESS, EOL
NI	CLAMP, CONDUIT
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
1	GUIDE, USE & CARE
1B	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
2	MAY W10713609
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	MAY W10351295
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	MAY W10694467
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 27"
15	CHASSIS, COVER TOP BACK 27"
16	SKIN, CONTROL PANEL (STAINLESS)
