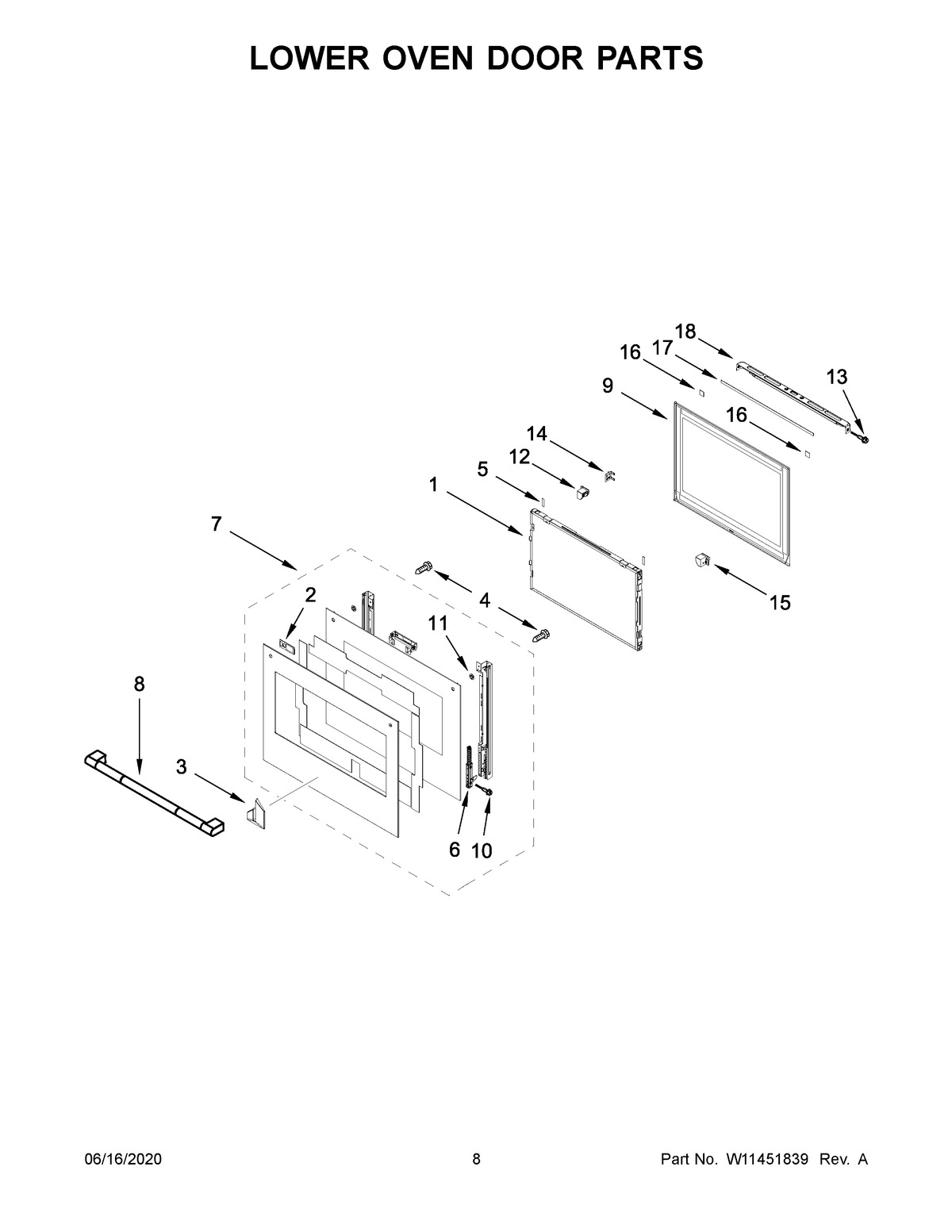

JJW2827IL01 05 – LOWER OVEN DOOR PARTS

JJW2827IL01 05 – LOWER OVEN DOOR PARTS

Written by

in

JJW2827IL01 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	SPACER, HANDLE
3	NAMEPLATE (STAINLESS)
4	SCREW
5	SPACER
6	HINGE, DOOR
7	ASSEMBLY, DOOR (STAINLESS)
8	MAY W11251201
9	ASSEMBLY, GLASS CAVITY
10	SCREW
11	WASHER, DOOR
12	BRACKET, DOOR (LEFT)
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (RIGHT)
16	SPACER, VENT
17	PAD, VENT
18	VENT, TOP METAL
