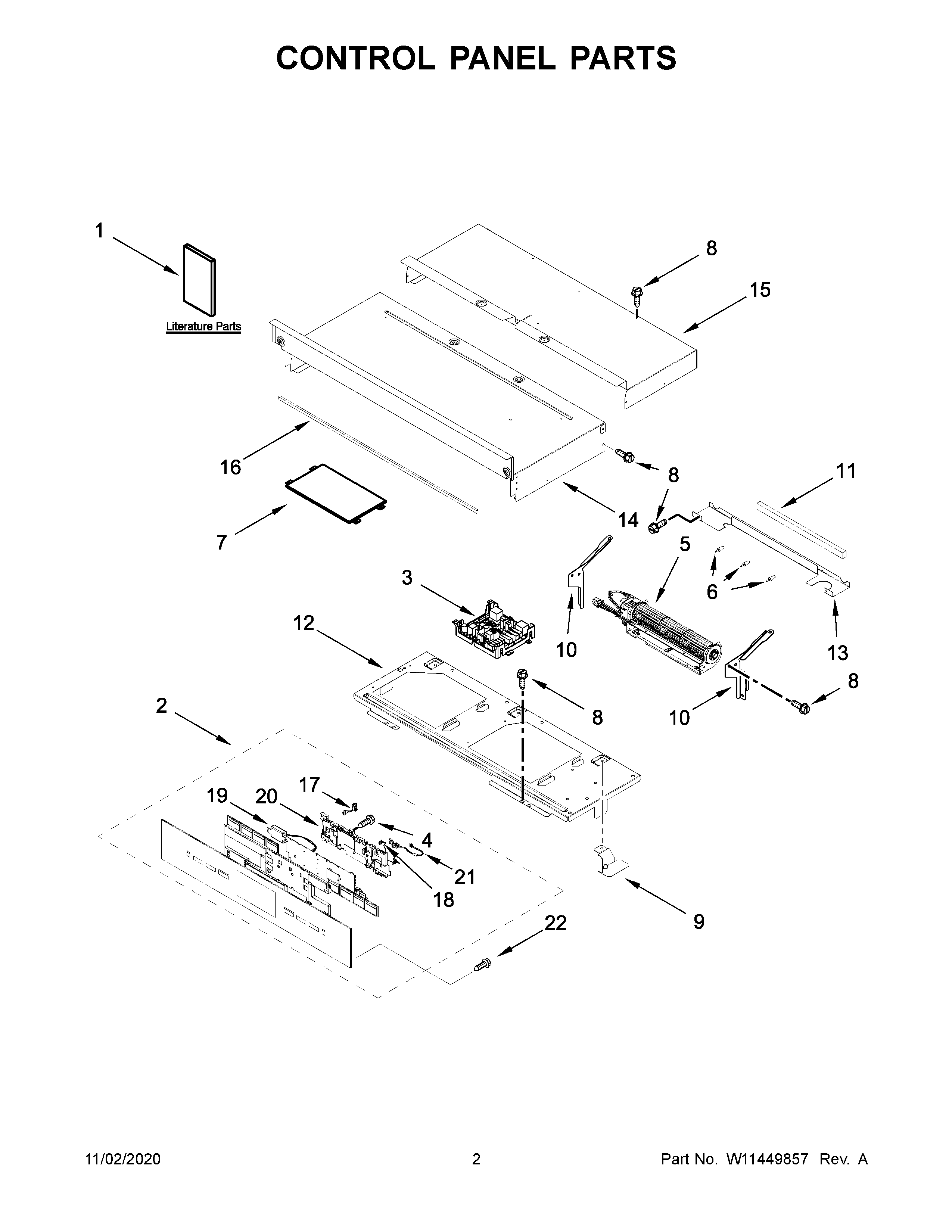

JJW2827IM01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11229447 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
NI	4450800 Whirlpool Oven Screw
NI	W10655464 Whirlpool Bracket
NI	W11699910 Whirlpool Wire Harness
NI	STRAP, LEAD GROUND
NI	16515 Whirlpool Clip
NI	W11219538 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11216658 Whirlpool Wire Harness
NI	W11216673 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1C	SHEET, TECH
1B	DIAGRAM, WIRING
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE (OVEN)
2	W11451408 Whirlpool Console
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	W10489172 Whirlpool Screw
5	W11248652 Whirlpool Blower
6	W10351295 Whirlpool Bumper Assembly
7	SHIELD, CHASSIS TOP COVER
8	SCREW
9	SUPPORT, ELECTRONIC TRAY
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	TRAY, ELECTRONIC
13	W10655465 Whirlpool Mounting Bracket
14	CHASSIS, COVER TOP FRONT 27"
15	CHASSIS, COVER TOP BACK 27"
16	W10728475 Whirlpool Foam Seal
17	W10566973 Whirlpool Wire Harness
18	W10524350 Whirlpool Wire Harness
19	W11123146 Whirlpool Speaker
20	W10668510 Whirlpool Housing
21	W10575307 Whirlpool Wire Harness
22	WPY706189 Whirlpool Stove Screw
