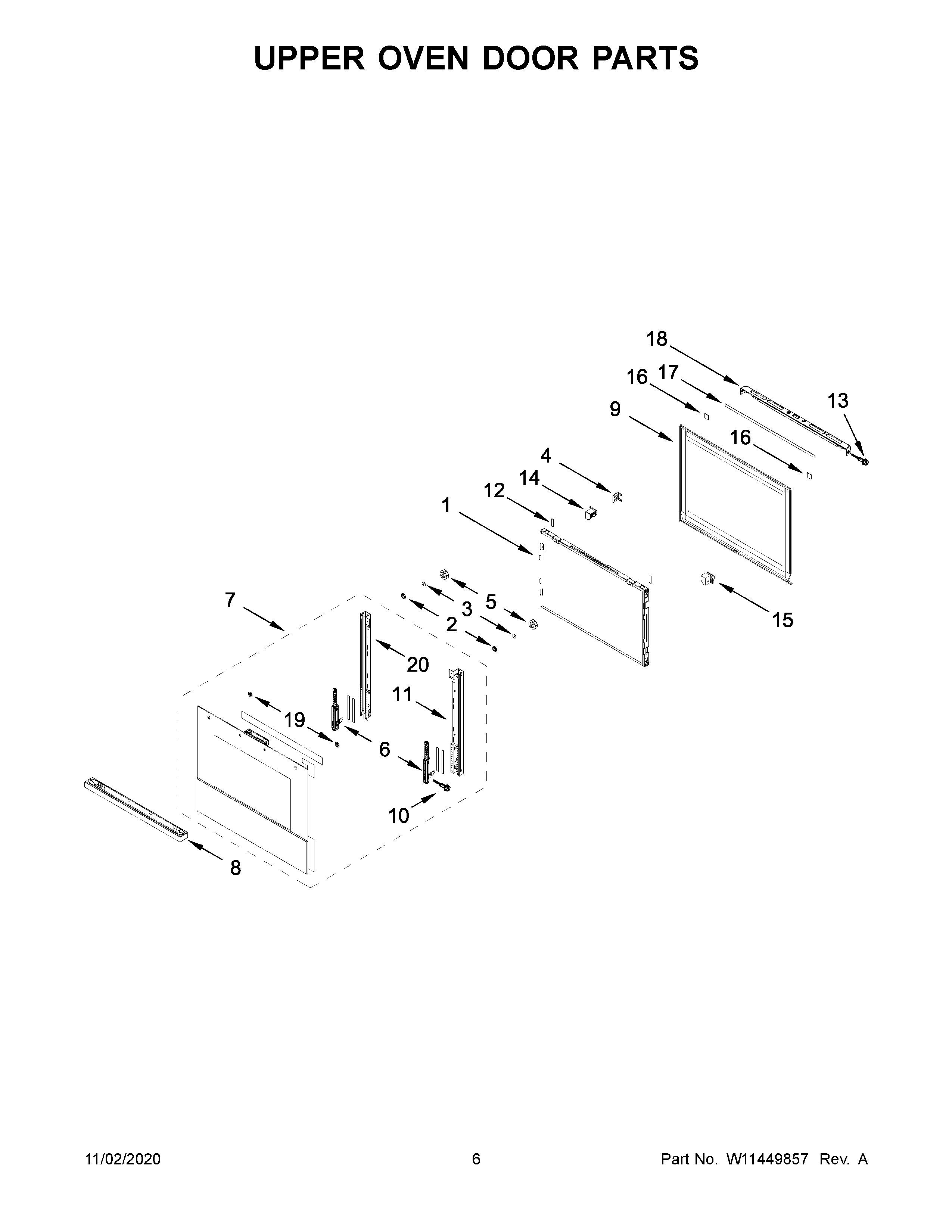

JJW2827IM01 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	W11349268 Whirlpool Door Glass
2	SPACER, HANDLE
3	WASHER
4	WPW10549747 Whirlpool Clip
5	WP488130 Whirlpool Air Conditioner Nut
6	W11318032 Whirlpool Door Hinge
7	ASSEMBLY, DOOR (STAINLESS)
8	W11411895 Whirlpool Door Handle
9	W11349273 Whirlpool Glass Door
10	WP3196183 Whirlpool Screw
11	W11355411 Whirlpool Support Bracket
12	W10840861 Whirlpool Spacer
13	W11690596 Whirlpool Screw
14	BRACKET, DOOR (LEFT)
15	WPW10581826 Whirlpool Support Bracket
16	WPW10517428 Whirlpool Spacer
17	PAD, VENT
18	VENT, TOP METAL
19	W11676355 Whirlpool Washer
20	W11355410 Whirlpool Support Bracket Assembly
