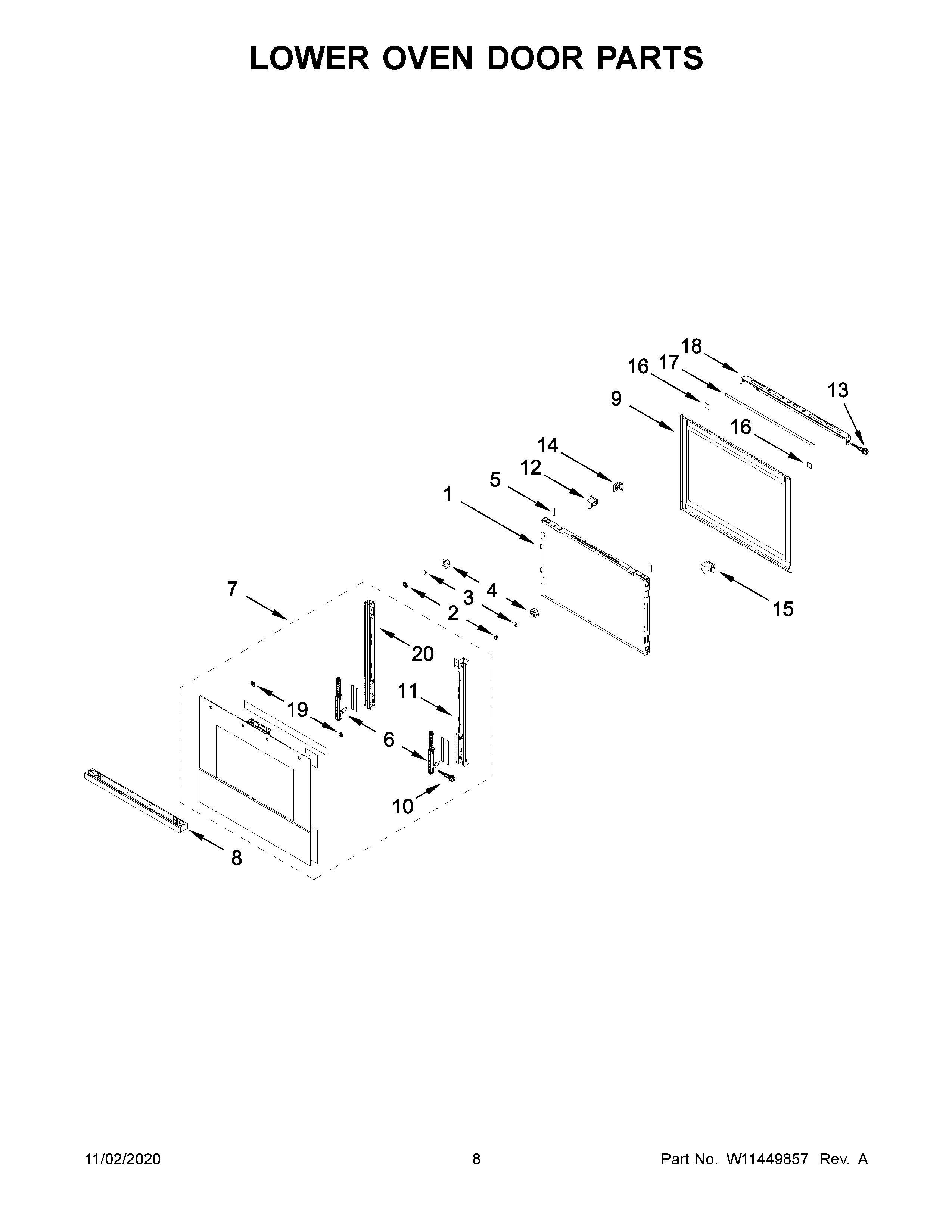

JJW2827IM01 05 – LOWER OVEN DOOR PARTS

JJW2827IM01 05 – LOWER OVEN DOOR PARTS

Written by

in

JJW2827IM01 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1W11349268 Whirlpool Door Glass
2SPACER, HANDLE
3WASHER
4WP488130 Whirlpool Air Conditioner Nut
5W10840861 Whirlpool Spacer
6W11318032 Whirlpool Door Hinge
7W11349274 Whirlpool Door Glass
8W11411895 Whirlpool Door Handle
9W11349273 Whirlpool Glass Door
10WP3196183 Whirlpool Screw
11W11355411 Whirlpool Support Bracket
12BRACKET, DOOR (LEFT)
13W11690596 Whirlpool Screw
14WPW10549747 Whirlpool Clip
15WPW10581826 Whirlpool Support Bracket
16WPW10517428 Whirlpool Spacer
17PAD, VENT
18VENT, TOP METAL
19W11676355 Whirlpool Washer
20W11355410 Whirlpool Support Bracket Assembly
