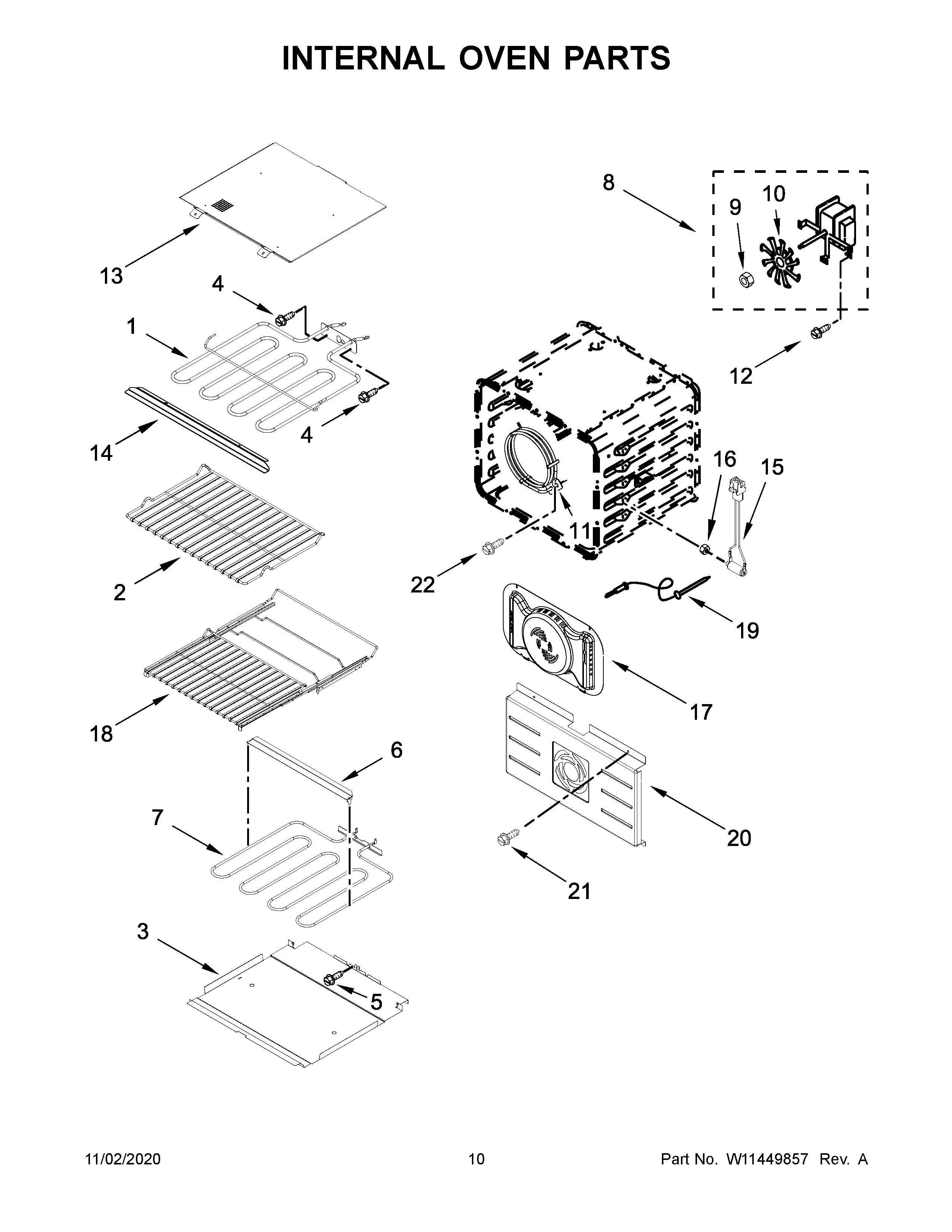

JJW2827IM01 06 – INTERNAL OVEN PARTS

JJW2827IM01 06 – INTERNAL OVEN PARTS

Written by

in

JJW2827IM01 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1W10804429 Whirlpool Broil Element
2RACK, 27 IN OVEN
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W10860984 Whirlpool Fan Motor
9W10794042 Whirlpool Nut
10W10819914 Whirlpool Convection Fan
11W11678579 Whirlpool Element
12W10850807 Whirlpool Screw
13W11290999 Whirlpool Shield Heat
14W10588738 Whirlpool Heat Shield
15W11252826 Whirlpool Probe Jack
16W11231343 Whirlpool Lock Nut
17BAFFLE, BOW TIE
18W11256306 Whirlpool Rack
19WP9755542 Whirlpool Oven Meat Probe
20W10521808 Whirlpool Baffle Convect
21SCREW
22Screw
