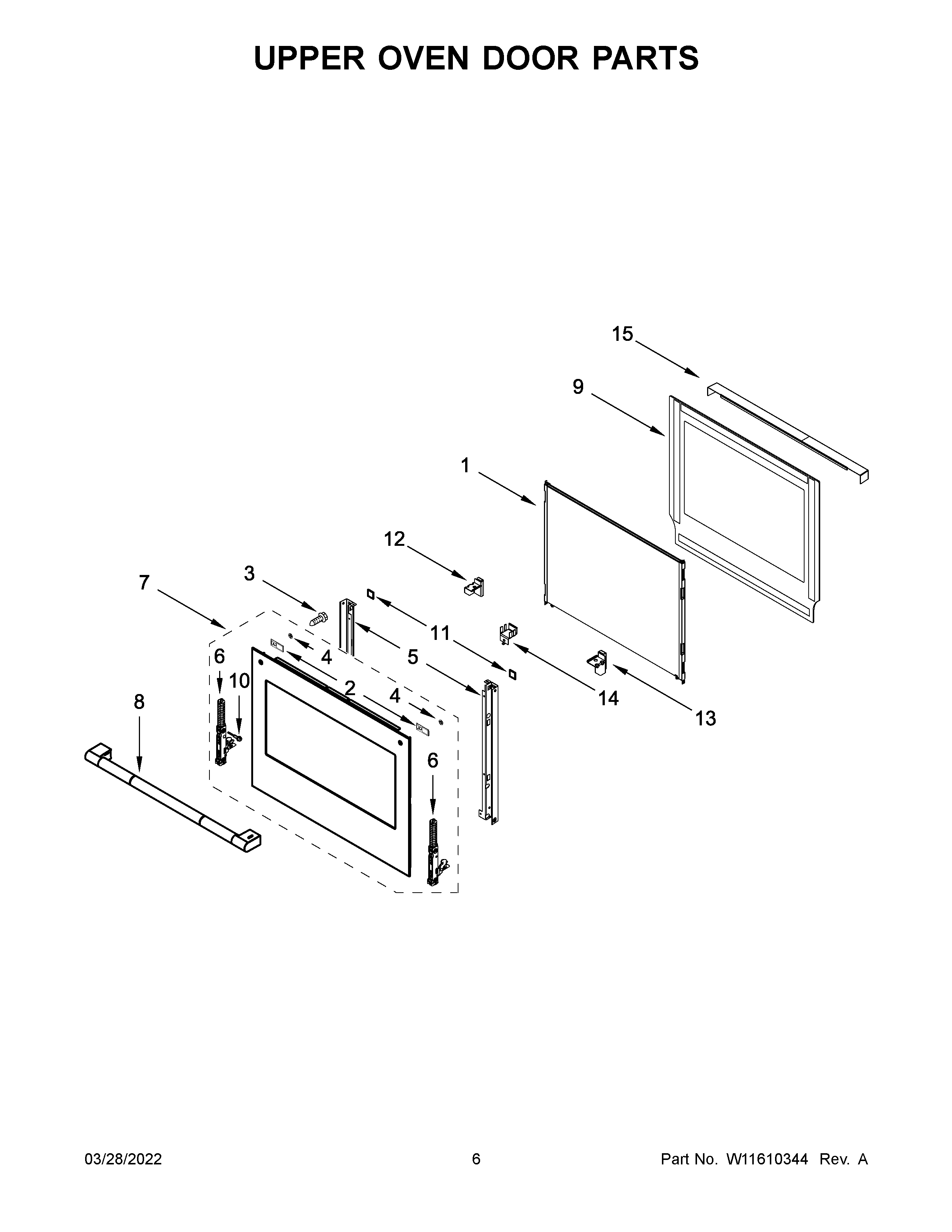

JJW2827LL00 04 – UPPER OVEN DOOR PARTS

JJW2827LL00 04 – UPPER OVEN DOOR PARTS

Written by

in

JJW2827LL00 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11602513 Whirlpool Oven Door Glass
2W10650497 Whirlpool Spacer
3W11602624 Whirlpool Oven Screw
4W11676355 Whirlpool Washer
5W11598126 Whirlpool Support Bracket
5AW11598127 Whirlpool Support Bracket
6AW11394210 Whirlpool Door Hinge
6W11394209 Whirlpool Door Hinge
7W11602615 Whirlpool Oven Door Glass
8W11349396 Whirlpool Door Handle
9W11602631 Whirlpool Door Glass
10WP3196183 Whirlpool Screw
11WPW10517428 Whirlpool Spacer
12W11598130 Whirlpool Oven Support Bracket
13W11598128 Whirlpool Oven Support Bracket
14W11598131 Whirlpool Oven Clip
15TOP VENT TRIM ASSEMBLY
