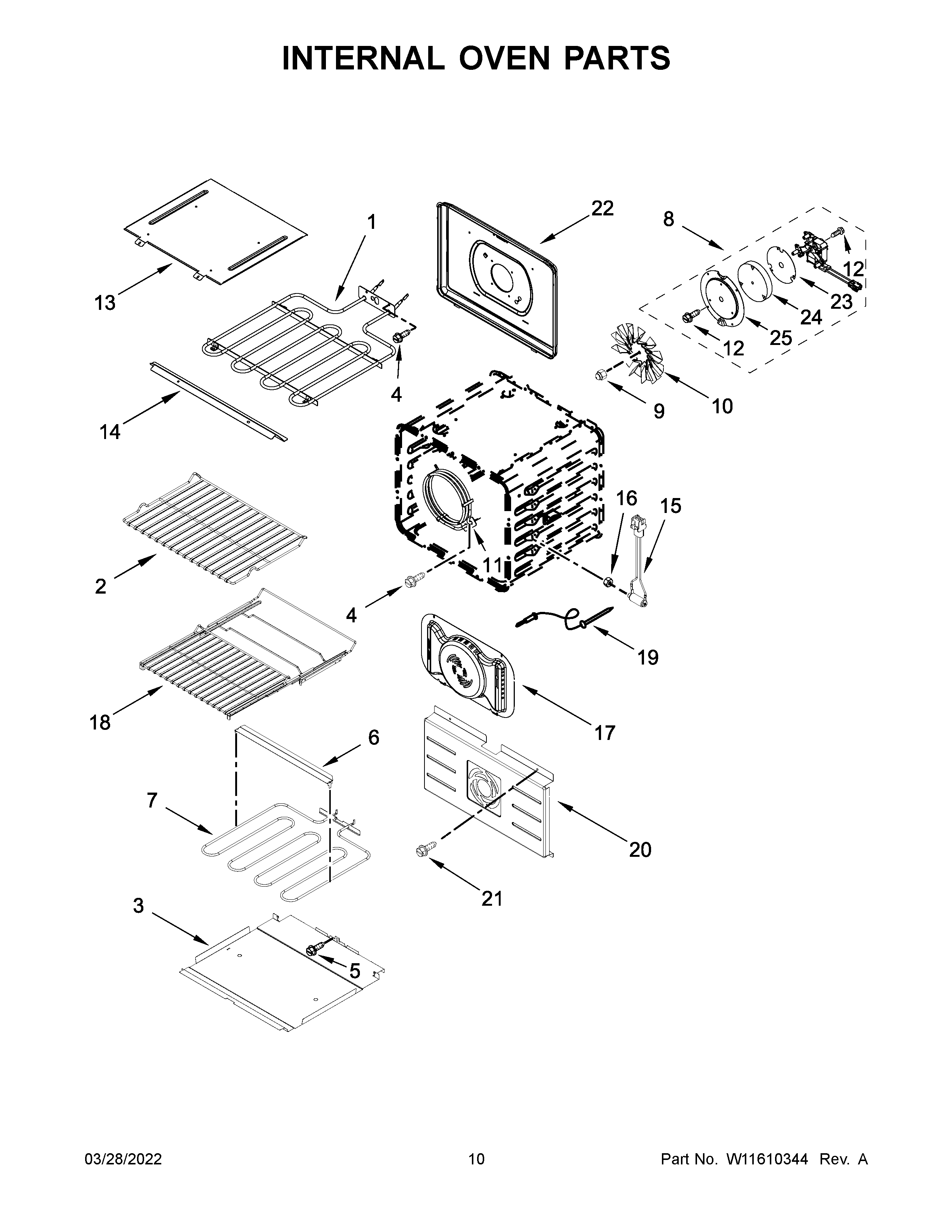

JJW2827LL00 06 – INTERNAL OVEN PARTS

JJW2827LL00 06 – INTERNAL OVEN PARTS

Written by

in

JJW2827LL00 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	RACK, 27 IN OVEN
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	CONVECT MOTOR ASSEMBLY
9	W11548755 Whirlpool Nut
10	W11548753 Whirlpool Convection Fan
11	W11678579 Whirlpool Element
12	W10850807 Whirlpool Screw
13	TOP-CABNT
14	SHIELD-HT
15	W11252826 Whirlpool Probe Jack
16	W11231343 Whirlpool Lock Nut
17	BAFFLE, BOW TIE
18	W11256306 Whirlpool Rack
19	WP9755542 Whirlpool Oven Meat Probe
20	W10521808 Whirlpool Baffle Convect
21	SCREW
22	BACK, 27 IN CAVITY BAFFLE BOWTIE
23	PLATE, CONVECT MOTOR
24	INSULATION, CONVECT MOTOR
25	COVER, CONVECT PLATE
