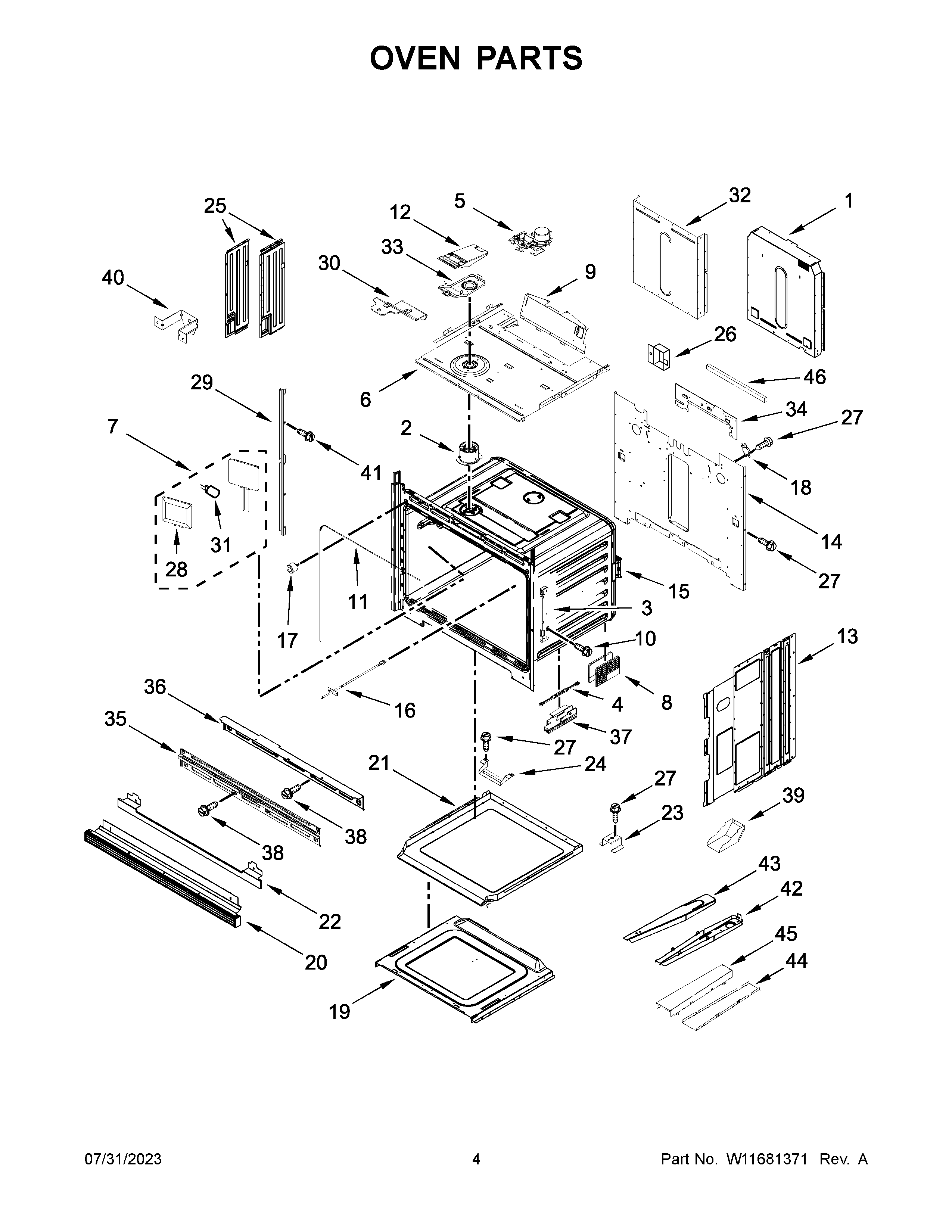

JJW2827LM01 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, WRAP
NIINSULATION, BACK
NIFOLLOWING PARTS NOT ILLUSTRATED
1W11165250 Whirlpool Rear Cover
2W11240525 Whirlpool Vent Tube
3W11712405 Whirlpool Receiver Hinge
3AW11712406 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10WPW10254050 Whirlpool Screw
11W11608109 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS (NOT SERVICED)
15LINER, OVEN (NOT SERVICEABLE)
16W11598120 Whirlpool Thermostat
17W11598125 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20W11369893 Whirlpool Heat Deflector
21COVR-ACESS
22W11712432 Whirlpool Trim Assembly
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25AW11598151 Whirlpool Side Cover
25W11598150 Whirlpool Side Cover
268285593 Whirlpool Oven Wire Cover
27SCREW
28WPW10519866 Whirlpool Light
29W11235460 Whirlpool Mounting Rail
29AW11235461 Whirlpool Rail Mounting
30BRACKET, TOP FRONT
31WPW10472384 Whirlpool Light Bulb
32W11134657 Whirlpool Rear Cover
33BASE, VENT EXHAUST
34BRACKET, U-SHAPE
35W11235483 Whirlpool Exhaust Vent
36W11334858 Whirlpool Vent Exhaust
37W11598169 Whirlpool Foot Level Assembly
37AW11598168 Whirlpool Leveling Foot
38WPY706189 Whirlpool Stove Screw
39DEFLECTOR, LOWER BACK EXHAUST
40HAT BRACKET, VENT
41W11602623 Whirlpool Screw
42BASE, TOP BACK EXHAUST
43COVER, TOP BACK EXHAUST
44BASE, LOWER BACK EXHAUST
45COVER, LOWER BACK EXHAUST
46FOAM, U-BRACKET
